Solaro XC-SGP

Experience the
Solaro XC-SGP
Light Show

No specifications available yet.

No downloads available yet.

Solaro XC-SGP

Explore Similar
Products

Ready to Transform Your Space?

SKU: Solaro XC-SGP
CATEGORY: DSP Accessories
BRAND: Xilica
DELIVERY For orders above AED 1,000
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support
Overview

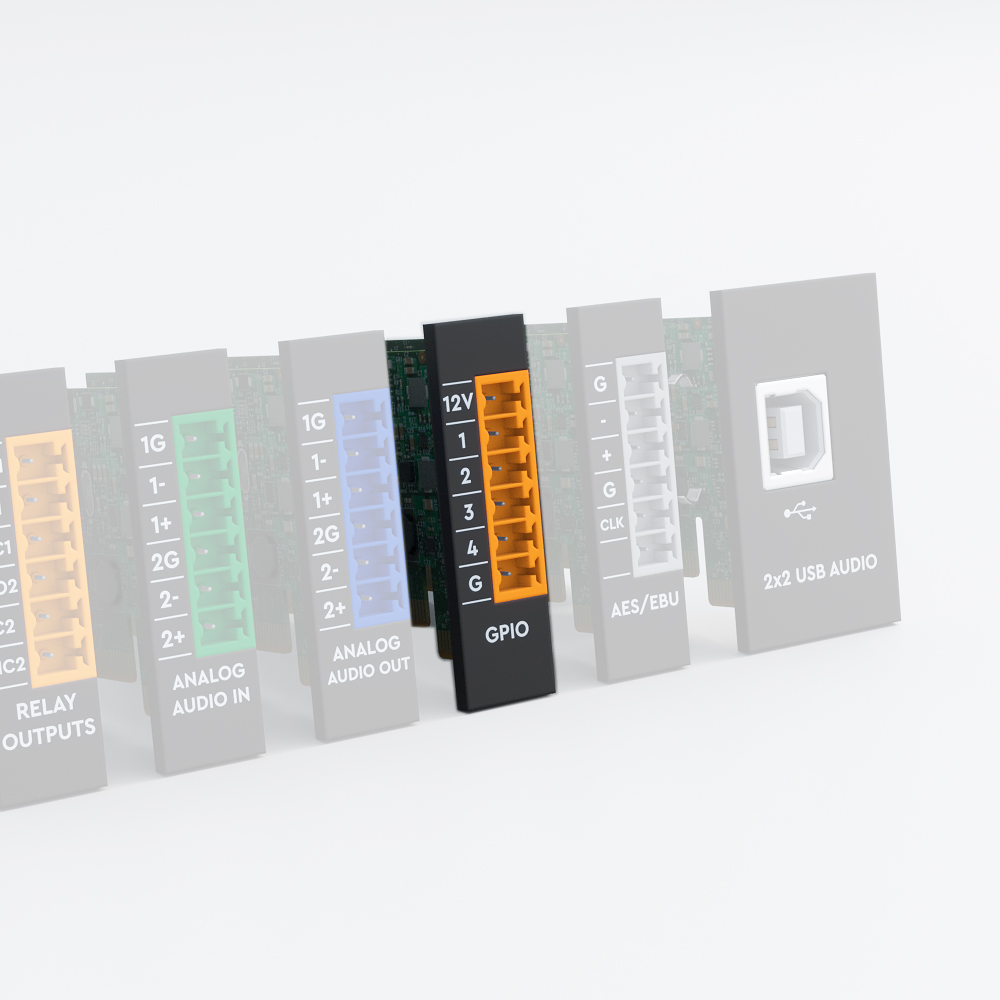

The XC-SGP offers the ability to command third-party products and peripherals that are non-networked through both logic or voltage. It is software-selectable for either input or output functionality.

Technical Specifications

Input Mode

  • Inputs

    Four (4)

  • Type

    GPIO logic or voltage (software-selectable)

  • Logic GPIO

    Short to ground to activate

  • Voltage GPIO

    0–24 VDC sensing, 12 DC control

Output Mode

  • Outputs

    Four (4)

  • Type

    GPIO LED or Sink (software-selectable)

  • LED Output

    3mA per output

  • Source Sink

    300mA per output


  • Card Slot(s) Occupied

    Single (1)

  • Shipping Weight

    0.275lbs / 0.125kg
