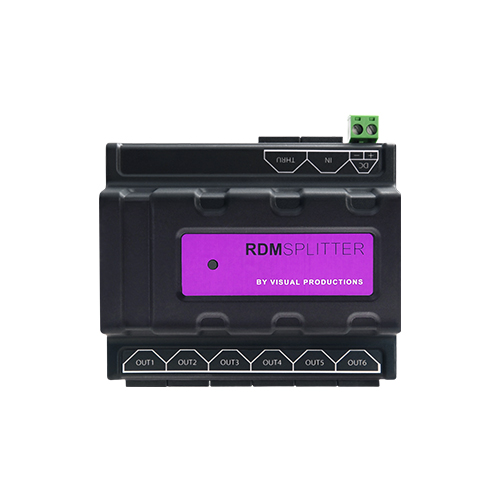

RdmSplitter (RJ-45)
Experience the
RdmSplitter (RJ-45)
Light Show
No specifications available yet.
No downloads available yet.
Explore Similar
Products
Ready to Transform Your Space?
The RdmSplitter is an optically isolated splitter/booster for DMX and RDM networks.The widespread data protocol for lighting equipment is DMX-512. It is a very successful protocol with, however, a few limitations. The maximum number of attached devices is limited to 32 and a DMX cable should not be longer than 300 meters. The RdmSplitter helps tackle those inconvenient limitations. The Splitter takes a DMX signal and sends it out again on its 6 DMX output ports. Each output port is capable of driving 32 more devices. The Splitter can also function as a signal booster as each port supports another 300 meter long connection.
Specifications
• 6 Outputs
• Optical Isolation (individual per port)
• USITT DMX512-A (ANSI E1.11)
• RDM (ANSI E1.20)
• RJ-45 connectors
• DIN Rail mounting
• Power consumption 9-24V DC 500mA power input (optional external PSU)
• Dimensions 105 x 86 x 60 mm
- Weights 120 gram
