Battery Operated
VBAT-684
150 x 150 x 230 mm (LxWxH)
Size
4, 6 or 11 channels
DMX Channels
62W
Power Consumption
4,5 Kg
Weight
Experience the
VBAT-684
Light Show
| Input Voltage | 100~240V AC, 50/60Hz |
|---|---|
| Battery storage | 12Ah |
| Power consumption at full output | 62W |
| Light source | 7 x 4W RGBW LEDs |
| Operating time at Full On | 6 hours at full RGBW on |
| Charging time | 10 hours |
| Spare battery | On request |
| Control Protocol | DMX512 via wireless/ DMX512 |
| DMX channels | 4, 6 or 11 channels |
| Control modes | Built-in Programs, Auto, Sound, Static dimmer, Master/Slave, Wireless Master/Slave, DMX, W-DMX |
| Beam angle | 25° |
| Dimmer | 0-100% |
| Strobe | 0-20Hz |
| Housing | Black aluminum |
| IP rating | IP44 (when using optional raincover) |
| Fixture Connection | 3-pin XLR In and Out, IEC Power In/Out |
| Cooling | Aluminum heatsink |
| Operation Temperature | -20°C ~40°C |
| Fuse | 5S 1,5A/250V |
| Dimensions | 150 x 150 x 230 mm (LxWxH) |
| Weight | 4,5 Kg |
No downloads available yet.
Explore Similar
Products
Ready to Transform Your Space?
DELIVERY
For orders above AED 1,000
WARRANTY
2 years
SECURE PAYMENT
Safe encrypted checkup
EXPERT SUPPORT
Pre and post sale support

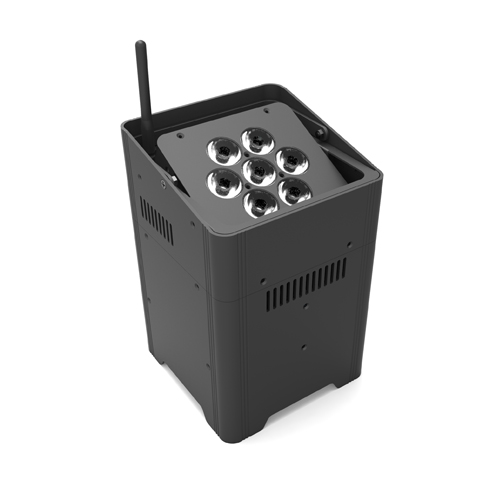

The VBAT-684 is a wireless LED from Vision.
- Input Voltage: 100~240V AC, 50/60Hz
- Battery storage: 12Ah
- Power consumption at full output: 62W
- Light source: 7 x 4W RGBW LEDs
- Operating time at Full On: 6 hours at full RGBW on
- Charging time: 10 hours
- Spare battery: On request
- LED display for easy setup
- Control Protocol: DMX512 via wireless/ DMX512
- DMX channels: 4, 6 or 11 channels
- Control modes: Built-in Programs, Auto, Sound, Static dimmer, Master/Slave, Wireless Master/Slave, DMX, W-DMX
- Beam angle: 25°
- Adjustable tilt position
- Dimmer: 0-100%
- Strobe: 0-20Hz
- Housing: Black aluminum
- IP rating: IP44 (when using optional raincover)
- Fixture Connection: 3-pin XLR In and Out, IEC Power In/Out
- Cooling: Aluminum heatsink
- Operation Temperature: -20°C ~40°C
- Fuse: 5S 1,5A/250V
- Dimensions: 150 x 150 x 230 mm (LxWxH)
- Weight: 4,5 Kg
