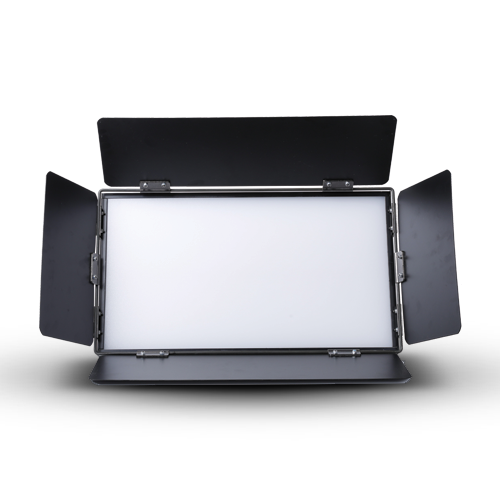

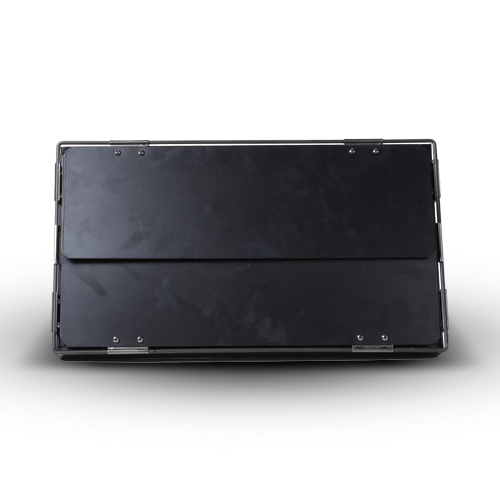

VSL 250CW
250W white LED soft light with 6500K color temperature and more than 50,000 hours LED life
250W white
LED:
1-20 flash per second
Strobe:
More than 50,000 hours
LED life:
6500K
Color temperature:
Product Gallery Guide
Click the thumbnail buttons below the main image to explore different views:
- Technical Specifications
- Downloads
| LED: | 250W white |
| Strobe: | 1-20 flash per second |
| LED life: | More than 50,000 hours |
| Color temperature: | 6500K |
| CRI: | ≥ 90 Ra |
| Dimmer: | 0-100% linear dimmer |
| Control mode: | International standard DMX 512 signal, with XLR 3 pin & XLR 5 pin connectors |
| Channel mode: | 2 channels |
| Display: | LCD |
| Protection grade: | IP20 |
| Cooling system: | Aluminum radiator without fan and noise |
| Environment temperature: | -20°C - 45°C |
| Power supply: | AC100V-240V, 50HZ/60HZ |
| Power consumption: | 260W |
Data Sheet
VSL-250CW.pdfapplication/pdf · 1 MB
DMX Chart
VSL-250CW-1.pdfapplication/pdf · 8 MB
VSL 250CW
250W white LED soft light with 6500K color temperature and more than 50,000 hours LED life
Specifications
| LED: | 250W white |
| Strobe: | 1-20 flash per second |
| LED life: | More than 50,000 hours |
| Color temperature: | 6500K |
| CRI: | ≥ 90 Ra |
| Dimmer: | 0-100% linear dimmer |
| Control mode: | International standard DMX 512 signal, with XLR 3 pin & XLR 5 pin connectors |
| Channel mode: | 2 channels |
| Display: | LCD |
| Protection grade: | IP20 |
| Cooling system: | Aluminum radiator without fan and noise |
| Environment temperature: | -20°C - 45°C |
| Power supply: | AC100V-240V, 50HZ/60HZ |
| Power consumption: | 260W |
Downloads
Data Sheet
VSL-250CW.pdfapplication/pdf · 1 MB
DMX Chart
VSL-250CW-1.pdfapplication/pdf · 8 MB
