VPC 350**-XX
IP20-rated 300W white COB LED with up to 41,000 lumens and more than 50,000 hours LED life
COB, 300W, white
LED:
37,800 - 41,000 lumens
Luminous lux:
19°/26°/36°/50°
Beam angle:
1-20 flash per second
Strobe:
Product Gallery Guide
Click the thumbnail buttons below the main image to explore different views:
- Technical Specifications
- Downloads
| LED: | COB, 300W, white |
| Luminous lux: | 37,800 - 41,000 lumens |
| Beam angle: | 19°/26°/36°/50° |
| Strobe: | 1-20 flash per second |
| Color temperature: | 3200K / 5600K |
| Control mode: | International standard DMX512 signal, with XLR 3PIN or XLR 5PIN connectors |
| Channel mode: | 1, 2 channels |
| Display: | LED screen |
| Protection grade: | IP20 |
| LED life: | More than 50,000 hours |
| Cooling system: | Heat pipe without noise fan |
| Environment temperature: | -20°C - 45°C |
| Power supply: | AC100V-240V, 50/60Hz |
| Power consumption: | 350W |
Data Sheet
VPC-350-xx.pdfapplication/pdf · 1 MB

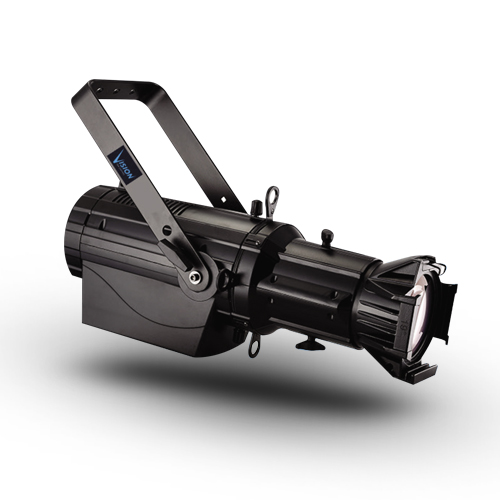

VPC 350**-XX
IP20-rated 300W white COB LED with up to 41,000 lumens and more than 50,000 hours LED life
Specifications
| LED: | COB, 300W, white |
| Luminous lux: | 37,800 - 41,000 lumens |
| Beam angle: | 19°/26°/36°/50° |
| Strobe: | 1-20 flash per second |
| Color temperature: | 3200K / 5600K |
| Control mode: | International standard DMX512 signal, with XLR 3PIN or XLR 5PIN connectors |
| Channel mode: | 1, 2 channels |
| Display: | LED screen |
| Protection grade: | IP20 |
| LED life: | More than 50,000 hours |
| Cooling system: | Heat pipe without noise fan |
| Environment temperature: | -20°C - 45°C |
| Power supply: | AC100V-240V, 50/60Hz |
| Power consumption: | 350W |
Downloads
Data Sheet
VPC-350-xx.pdfapplication/pdf · 1 MB
