VERSAPAR
Indoor-Fixtures

VERSAPAR

262x350x261mm Size
5 / 7 / 10ch DMX Channels
Neutrik powerCON IN/OUT connectors Power Consumption
5,5kg Weight

Experience the
VERSAPAR
Light Show

Wide zoom range from 10° - 60° (1 6 zoom)
Source 12x10W RGBW LEDs
Luminous flux (10°) 1'450 lm - (60°) 1'786
Lux (10°) 3'144 lx - (60°) 249lx @5 m full
Source life expectancy > 50.000 h
Zoom range 10° - 60° motorised linear zoom
Lens type plano-convex lens path
Colour mixing RGBW / FC
Colour wheel virtual colour wheel with macros
Macros built-in white presets
Static mode selection of static colour
Manual mode manual adjustment of colour
Auto mode built-in programs with execution speed adjustment
Supported Protocols DMX512
DMX channels 5 / 7 / 10ch
Display Graphic User Interface
Master/Slave for synchronised operation of more units linked in a chain
Dimmer linear 0 - 100% electronic dimmer
Dimmer curves 4 selectable dimming modes available
Strobe / shutter 1 - 28 Hz, electronic
Selectable PWM 600 to 25000 Hz (selectable steps)
Firmware upgrade via DMX with UPBOXPRO/UPBOX1 (not included)
Power connection Neutrik powerCON IN/OUT connectors
Signal connection XLR 3p + 5p IN/OUT connectors
Mains power supply 100-240V - 50/60Hz
Max power consumption (230V) 120W
Output (at 230V) 15 units on a single power line
Power factor > 0,94
IP rating IP30
Cooling forced-air with low-noise fan
Housing Sturdy die-cast aluminium body
Finish black
Operating temperature Ta -10 to +40 °C (+14 to +104 °F)
Dimensions (WxHxD) 262x350x261mm
Weight 5,5kg
Suspension and fixing double hanging bracket suitable for safe hanging and for floor positioning
Compliance CE, UKCA, RCM

No downloads available yet.

VERSAPAR

Explore Similar
Products

Ready to Transform Your Space?

SKU: VERSAPAR
CATEGORY: Indoor-Fixtures
BRAND: Prolights
DELIVERY For orders above AED 1,000
WARRANTY 2 years
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

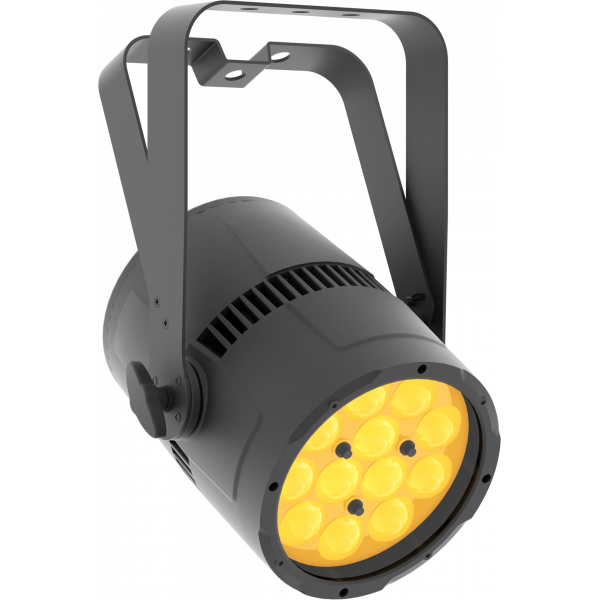

VersaPar is a LED zoom PAR designed for rental companies. The multi-purpose concept combining high brightness, wide zoom range and advanced colour mixing make this a unique fixture. VersaPar is equipped with 10° - 60° unrivalled zoom range, high efficiency, perfect chromatic uniformity, HDL dimming technology and totally silent operation.

  • 12x10W RGBW/FC LED
  • Wide zoom range from 10° - 60° (1:6 zoom)
  • HD dimming with selectable PWM
  • Silent operation for studio application

    • VersaPar is a LED zoom PAR designed for rental companies. The multi-purpose concept combining high brightness, wide zoom range and advanced colour mixing make this a unique fixture. VersaPar is equipped with 10° - 60° unrivalled zoom range, high efficiency, perfect chromatic uniformity, HDL dimming technology and totally silent operation.

    Features:
    12x10W RGBW/FC LED
    Wide zoom range from 10° - 60° (1:6 zoom)
    HD dimming with selectable PWM
    Silent operation for studio application

    LIGHT SOURCE
    • Source:
      12x10
      W
      RGBW LEDs
    • Luminous flux:
      (10°) 1'450 lm - (60°) 1'786
    • Lux:
      (10°) 3'144 lx - (60°) 249
      lx
      @5 m full
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Zoom range:
      10° - 60
      °
      motorised linear zoom
    • Lens type:
      plano-convex lens path
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      built-in white presets
    DYNAMIC EFFECTS
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    CONTROL
    • Supported Protocols:
      DMX512
    • DMX channels:
      5 / 7 / 10
      ch
    • Display:
      Graphic User Interface
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 28
      Hz, electronic
    • Selectable PWM:
      600 to 25000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX1 (not included)
    CONNECTIONS
    • Power connection:
      Neutrik powerCON IN/OUT connectors
    • Signal connection:
      XLR 3p + 5p IN/OUT connectors
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      120
      W
    • Output (at 230V):
      15
      units on a single power line
    • Power factor:
      > 0,94
    PHYSICAL
    • IP rating:
      IP30
    • Cooling:
      forced-air with low-noise fan
    • Housing:
      Sturdy die-cast aluminium body
    • Finish:
      black
    • Operating temperature:
      Ta
      -10 to +40 °C (+14 to +104 °F)
    • Dimensions (WxHxD):
      262x350x261
      mm
    • Weight:
      5,5
      kg
    INSTALLATION
    • Suspension and fixing:
      double hanging bracket suitable for safe hanging and for floor positioning
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA, RCM

    No reviews yet.

    Browse Related Categories

    More categories under Stage-Lighting

    Outdoor Fixtures
    Battery-Operated
    Strobes, Pixels and Blinders
    Indoor-Moving-Lights

    12x10W RGBW/FC LED compact zoom PAR

    VersaPar is a LED zoom PAR designed for rental companies. The multi-purpose concept combining high brightness, wide zoom range and advanced colour mixing make this a unique fixture. VersaPar is equipped with 10° - 60° unrivalled zoom range, high efficiency, perfect chromatic uniformity, HD dimming technology and totally silent operation.

    Main features:

    • 12x10W RGBW/FC LED
    • Wide zoom range from 10° - 60° (1:6 zoom)
    • HD dimming with selectable PWM
    • Silent operation for studio application
