Outdoor Fixtures
SUNRISE2IP
432x230x102mm
Size
1 / 2 / 6 / 12ch
DMX Channels
Seetronic powerCON TRUE IP65 IN/OUT
Power Consumption
7,6kg
Weight
Experience the
SUNRISE2IP
Light Show
| Source | 2 x 8 W Amber + 2 x 75W Warm White LEDs |
|---|---|
| Source CCT | 2.700K |
| Luminous flux | 10'088 @Full |
| Lux | 1'076lx @3 m full |
| Lux | 387lx @5 m full |
| CRI | > 93 |
| TLCI | > 91 |
| TM30 Rf | > 91 |
| TM30 Rg | > 97 |
| Source life expectancy | > 70.000 h |
| Beam angle | 60° |
| Field angle | 100° |
| Lens type | parabolic reflector |
| Tungsten Emulation | dimming with warm color shift simulation |
| Pixel patterns | pre-programmed static and dynamic patterns |
| Static mode | selection of static dimmer |
| Manual mode | manual adjustment of dimmer and strobe |
| Auto mode | built-in programs with execution speed adjustment |
| Supported Protocols | DMX512, RDM |
| DMX channels | 1 / 2 / 6 / 12ch |
| Pixel control | pixel2pixel control |
| RDM | for remote addressing and parameter configuration |
| Display | Graphic User Interface |
| Master/Slave | for synchronised operation of more units linked in a chain |
| Other | 16bit control of dimmer |
| Dimmer | linear 0 - 100% electronic dimmer |
| Dimmer curves | 4 selectable dimming modes available |
| Strobe / shutter | 1 ~ 30 Hz, electronic |
| Selectable PWM | 600 to 25000 Hz (selectable steps) |
| Firmware upgrade | via DMX with UPBOXPRO/UPBOX1 (not included) |
| Power connection | Seetronic powerCON TRUE IP65 IN/OUT |
| Signal connection | Seetronic XLR 5p IN/OUT connectors |
| Mains power supply | 100-240V - 50/60Hz |
| Max power consumption (230V) | 160W |
| Output (at 230V) | 22 units on a single power line |
| Power factor | > 0,94 |
| IP rating | IP65 for temporary outdoor use |
| IK rating | IK08 impact rating |
| Cooling | fan-free with natural convection |
| Housing | Sturdy die-cast aluminium body |
| Finish | black (RAL 9004) |
| Operating temperature | Ta -10 to +45 °C (+14 to +113 °F) |
| Dimensions (WxHxD) | 432x230x102mm |
| Weight | 7,6kg |
| Suspension and fixing | bracket for truss rigging and hardware for connection of more units |
| Other | on board mechanics for modular assembly of multiple fixtures |
| Compliance | CE, UKCA, RCM |
No downloads available yet.
Explore Similar
Products
Order Code
VLED-934IP
View Details
Order Code
VLED-804IP
View Details
Order Code
VBAR-803
View Details
Ready to Transform Your Space?
DELIVERY
For orders above AED 1,000
WARRANTY
2 years
SECURE PAYMENT
Safe encrypted checkup
EXPERT SUPPORT
Pre and post sale support

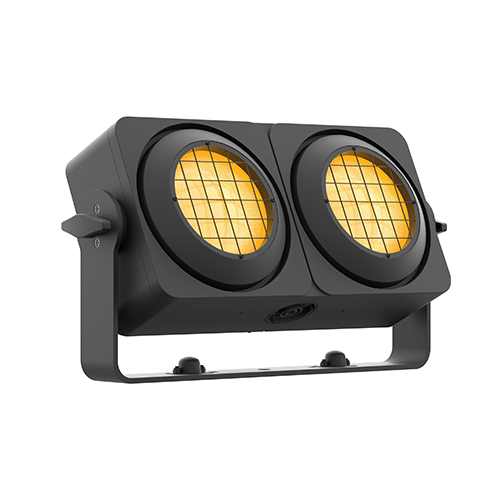

Sunrise 2IP is an IP rated and convection cooled modular 2x1 LED Blinder, designed to be a perfect touring solution to replace classic halogen fixtures of any sizes.
The fixture is designed with on-board, fast-locking mechanism in order to combine multiple units together and using them as brick, turning the Sunrise 2IP into a 4x1 or a 2x2 blinder easily. The Sunrise 2IP is equipped with 2x75 W COB Warm White LEDs pixel controlled and its optical system is capable to output the same performance and beam angle of the fluorescent bulbs, including dimmer ramp with red-shift.
Sunrise 2IP is an IP rated and convection cooled modular 2x1 LED Blinder, designed to be a perfect touring solution to replace classic halogen fixtures of any sizes.
The fixture is designed with on-board, fast-locking mechanism in order to combine multiple units together and using them as brick, turning the Sunrise 2IP into a 4x1 or a 2x2 blinder easily. The Sunrise 2IP is equipped with 2x75 W COB Warm White LEDs pixel controlled and its optical system is capable to output the same performance and beam angle of the fluorescent bulbs, including dimmer ramp with red-shift.
Features:2x75W Warm White LED with Amber backlight for tungsten simulation
Modular fast-locking assembly to combine multiple units together
IP rated and convection cooled
LIGHT SOURCE
- Source:2 x 8 W Amber + 2 x 75WWarm White LEDs
- Source CCT:2.700K
- Luminous flux:10'088@Full
- Lux:1'076lx@3 m full
- Lux:387lx@5 m full
- CRI:> 93
- TLCI:> 91
- TM30 Rf:> 91
- TM30 Rg:> 97
- Source life expectancy:> 70.000 h
OPTICS
- Beam angle:60°
- Field angle:100°
- Lens type:parabolic reflector
COLOUR SYSTEM
- Tungsten Emulation:dimming with warm color shift simulation
DYNAMIC EFFECTS
- Pixel patterns:pre-programmed static and dynamic patterns
- Static mode:selection of static dimmer
- Manual mode:manual adjustment of dimmer and strobe
- Auto mode:built-in programs with execution speed adjustment
CONTROL
- Supported Protocols:DMX512, RDM
- DMX channels:1 / 2 / 6 / 12ch
- Pixel control:pixel2pixel control
- RDM:for remote addressing and parameter configuration
- Display:Graphic User Interface
- Master/Slave:for synchronised operation of more units linked in a chain
- Other:16bit control of dimmer
ELECTRONICS
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 ~ 30Hz, electronic
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
- Power connection:Seetronic powerCON TRUE IP65 IN/OUT
- Signal connection:Seetronic XLR 5p IN/OUT connectors
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):160W
- Output (at 230V):22units on a single power line
- Power factor:> 0,94
PHYSICAL
- IP rating:IP65 for temporary outdoor use
- IK rating:IK08 impact rating
- Cooling:fan-free with natural convection
- Housing:Sturdy die-cast aluminium body
- Finish:black (RAL 9004)
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):432x230x102mm
- Weight:7,6kg
INSTALLATION
- Suspension and fixing:bracket for truss rigging and hardware for connection of more units
- Other:on board mechanics for modular assembly of multiple fixtures
CERTIFICATIONS / REPORTS
- Compliance:CE, UKCA, RCM
No reviews yet.
IP rated modular LED blinder with 2x75W LED WW and Tungsten emulation
Sunrise 2IP is an IP rated and convection cooled modular 2x1 LED Blinder, designed to be a perfect touring solution to replace classic halogen fixtures of any sizes.
The fixture is designed with on-board, fast-locking mechanism in order to combine multiple units together and using them as brick, turning the Sunrise 2IP into a 4x1 or a 2x2 blinder easily. The Sunrise 2IP is equipped with 2x75 W COB Warm White LEDs pixel controlled and its optical system is capable to output the same performance and beam angle of the fluorescent bulbs, including dimmer ramp with red-shift.
Main features:
- 2x75W Warm White LED with Amber backlight for tungsten simulation
- Modular fast-locking assembly to combine multiple units together
- IP rated and convection cooled
