SOLAR48Q
Outdoor Fixtures

SOLAR48Q

563x314x93mm Size
5 / 7 / 10 / 17 / 22ch DMX Channels
Seetronic powerCON waterproof IN/OUT connectors Power Consumption
12,9kg Weight

Experience the
SOLAR48Q
Light Show

Source 48x10W RGBW LEDs
Luminous flux 28'213 @Full
Lux (25°) 4'638lx @5 m full
Lux (45°) 986lx @5 m full
Source life expectancy > 50.000 h
Beam angle 25°
Additional optics 10° / 15° / 45° / 40° filter / 60° filter/ 10x60° filter / 30x60° filter
Other magnetic 40° filter included, barn door not included
Colour mixing RGBW / FC
CCT CCT control through dedicated DMX channel
Colour wheel virtual colour wheel with macros
Macros several pre-built macros with adjustable speed
FX generator section effect with 4 horizontal individually select and control sections
Static mode selection of static colour
Manual mode manual adjustment of colour
Auto mode built-in programs with execution speed adjustment
Supported Protocols DMX512, RDM, W-DMX
DMX channels 5 / 7 / 10 / 17 / 22ch
RDM for remote addressing and parameter configuration
Display Graphic User Interface
Master/Slave for synchronised operation of more units linked in a chain
Tilt 0 - 150° with manual adjustment
Dimmer linear 0 - 100% electronic dimmer
Dimmer curves 4 selectable dimming modes available
Strobe / shutter 1 - 30 Hz, electronic
Display battery included, self-charging battery backup
Selectable PWM 600 to 25000 Hz (selectable steps)
Firmware upgrade via DMX with UPBOXPRO/UPBOX1 (not included)
Power connection Seetronic powerCON waterproof IN/OUT connectors
Signal connection Seetronic XLR 5p IN/OUT connectors
Wireless Connection integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
Data connection W-DMX receiver
Mains power supply 100-240V - 50/60Hz
Max power consumption (230V) 520W
Output (at 230V) 4 units on a single power line
Power factor > 0,95
IP rating IP65 for temporary outdoor use
Cooling fan-free with natural convection
Housing Sturdy die-cast aluminium body
Finish black
Operating temperature Ta -20 to +45 °C (-4 to +113 °F)
Dimensions (WxHxD) 563x314x93mm
Weight 12,9kg
Suspension and fixing hanging bracket for floor positioning with "Quick-Lock" system
Hardware on-board magnetic filter frame with 40° filter
Compliance CE, UKCA, RCM

No downloads available yet.

SOLAR48Q

Explore Similar
Products

Ready to Transform Your Space?

SKU: SOLAR48Q
CATEGORY: Outdoor Fixtures
BRAND: Prolights
DELIVERY For orders above AED 1,000
WARRANTY 2 years
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

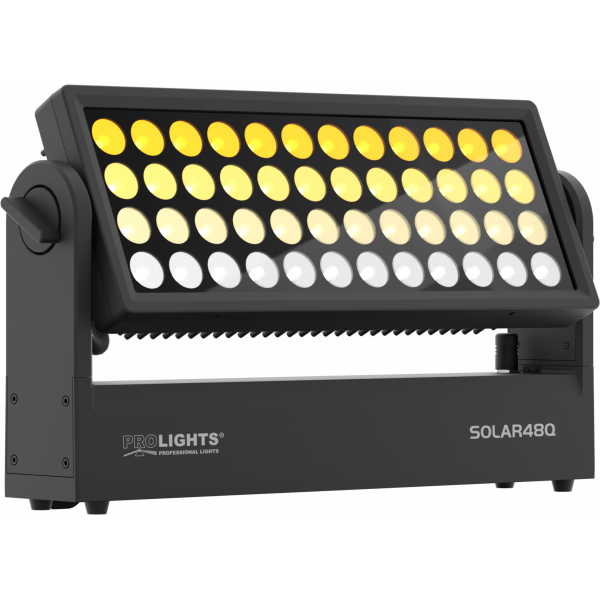

Solar 48Q is a compact fan-free outdoor wash light featuring an outstanding brightness of 22'760 lumens. Equipped with 48x10 W RGBW full-colour LEDs all delivering superior colour mixing. Featuring a slimline styling, multiple interchangeable optics through magnets, asymmetrical filters which combined, make the Solar 48Q an incredibly flexible device for indoor and outdoor use. Whilst highly-powerful, the Solar 48Q is also completely silent.

  • 48x10W RGBW / FC LED delivering 22'760 lumens
  • Compact form factor and fan-free
  • Wireless DMX on-board

    • Solar 48Q is a compact fan-free outdoor wash light featuring an outstanding brightness of 22'760 lumens. Equipped with 48x10 W RGBW full-colour LEDs all delivering superior colour mixing. Featuring a slimline styling, multiple interchangeable optics through magnets, asymmetrical filters which combined, make the Solar 48Q an incredibly flexible device for indoor and outdoor use. Whilst highly-powerful, the Solar 48Q is also completely silent.

    Features:
    48x10W RGBW / FC LED delivering 22'760 lumens
    Compact form factor and fan-free
    Wireless DMX on-board

    LIGHT SOURCE
    • Source:
      48x10
      W
      RGBW LEDs
    • Luminous flux:
      28'213
      @Full
    • Lux:
      (25°) 4'638
      lx
      @5 m full
    • Lux:
      (45°) 986
      lx
      @5 m full
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      25
      °
    • Additional optics:
      10° / 15° / 45° / 40° filter / 60° filter/ 10x60° filter / 30x60° filter
    • Other:
      magnetic 40° filter included, barn door not included
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • CCT:
      CCT control through dedicated DMX channel
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      several pre-built macros with adjustable speed
    DYNAMIC EFFECTS
    • FX generator:
      section effect with 4 horizontal individually select and control sections
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    CONTROL
    • Supported Protocols:
      DMX512, RDM, W-DMX
    • DMX channels:
      5 / 7 / 10 / 17 / 22
      ch
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      Graphic User Interface
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    MOVEMENT
    • Tilt:
      0 - 150
      °
      with manual adjustment
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Display battery:
      included, self-charging battery backup
    • Selectable PWM:
      600 to 25000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX1 (not included)
    CONNECTIONS
    • Power connection:
      Seetronic powerCON waterproof IN/OUT connectors
    • Signal connection:
      Seetronic XLR 5p IN/OUT connectors
    • Wireless Connection:
      integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
    • Data connection:
      W-DMX receiver
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      520
      W
    • Output (at 230V):
      4
      units on a single power line
    • Power factor:
      > 0,95
    PHYSICAL
    • IP rating:
      IP65 for temporary outdoor use
    • Cooling:
      fan-free with natural convection
    • Housing:
      Sturdy die-cast aluminium body
    • Finish:
      black
    • Operating temperature:
      Ta
      -20 to +45 °C (-4 to +113 °F)
    • Dimensions (WxHxD):
      563x314x93
      mm
    • Weight:
      12,9
      kg
    INSTALLATION
    • Suspension and fixing:
      hanging bracket for floor positioning with "Quick-Lock" system
    • Hardware on-board:
      magnetic filter frame with 40° filter
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA, RCM

    No reviews yet.

    Browse Related Categories

    More categories under Stage-Lighting

    Indoor-Fixtures
    Battery-Operated
    Strobes, Pixels and Blinders
    Indoor-Moving-Lights

    48x10W high brightness indoor/outdoor compact wash light

    Solar 48Q is a compact fan-free outdoor wash light featuring an outstanding brightness of 22'760 lumens. Equipped with 48x10 W RGBW full-colour LEDs all delivering superior colour mixing. Featuring a slimline styling, multiple interchangeable optics through magnets, asymmetrical filters which combined, make the Solar 48Q an incredibly flexible device for indoor and outdoor use. Whilst highly-powerful, the Solar 48Q is also completely silent.

    Main features:

    • 48x10W RGBW / FC LED delivering 22'760 lumens
    • Compact form factor and fan-free
    • Wireless DMX on-board
