SMARTBATWASH
Battery-Operated

SMARTBATWASH

381x344x143mm Size
magnetic DC connector for battery recharge and Seetronic powerCON TRUE IP65 IN/OUT connector Power Consumption
9,8kg Weight
10° Beam Angle

Experience the
SMARTBATWASH
Light Show

Source 15x20W RGB + Warm White LED
Luminous flux 6'300 lm @full
Lux 4'451lx @5 m full
CRI > 95 @3200K ; > 93 @5600K
R9 > 98 @3200K ; > 93 @5600K
TLCI > 84 @5600K
TM30 Rf 94.2 @3200K ; > 92 @5600K
TM30 Rg 104.4 @3200K ; > 105 @5600K
Source life expectancy > 50.000 h
Beam angle 10°
Colour mixing RGBWW
CCT CCT control through dedicated DMX channel
White presets 2'800K - 10'000K
Colour wheel virtual colour wheel with macros
Macros built-in white presets
Control Resolution 16-bit dimmer and color control
Static mode selection of static colour
Manual mode manual adjustment of colour
Auto mode built-in programs with execution speed adjustment
Supported Protocols DMX512, RDM, CRMX + WDMX
RDM for remote addressing and parameter configuration
Display Graphic User Interface
IR infrared sensor controlled by remote
Master/Slave for synchronised operation of more units linked in a chain
Dimmer linear 0 - 100% electronic dimmer
Dimmer curves 4 selectable dimming modes available
Strobe / shutter 1 - 30 Hz, electronic
Selectable PWM 600 to 25000 Hz (selectable steps)
Firmware upgrade via DMX with UPBOXPRO/UPBOX1 (not included)
Battery 16,8V lithium
Estimated battery life up to 3 / 6 / 8 / 12 / 16 / 18 h (selectable)
Recharge connection Directly from the mains power or magnetic fast-charge in case
Recharge time 5h (max)
Battery level indicator shown on display
Other Battery recharge in AC and DC, operation in main power with possibility to disable battery recharge throught software and charging operation in flightcase
Power connection magnetic DC connector for battery recharge and Seetronic powerCON TRUE IP65 IN/OUT connector
Signal connection IP65 Seetronic XLR 5p IN/OUT connectors
Wireless Connection integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
Mains power supply 100-240V - 50/60Hz
Max power consumption (230V) 180W
Output (at 230V) (Data for SMARTBATWASHPACK) 2 units on a single power line
Output (at 120V) (Data for SMARTBATWASHPACK) 1 units on a single power line
Power factor >0,94
IP rating IP65 for temporary outdoor use
Cooling fan-free with natural convection
Housing Sturdy die-cast aluminium body
Finish black (RAL 9004)
Operating temperature Ta 0 to +45 °C (+32 to +113 °F)
Dimensions (WxHxD) 381x344x143mm
Weight 9,8kg
Suspension and fixing any position with quick-lock omega brackets
Compliance CE, RCM, FCC

No downloads available yet.

SMARTBATWASH

Explore Similar
Products

Ready to Transform Your Space?

SKU: SMARTBATWASH
CATEGORY: Battery-Operated
BRAND: Prolights
DELIVERY For orders above AED 1,000
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

The SmartBat Wash is a high-powered LED Wash Light, that can be operated wirelessly or wired.

This IP65 Wash Light has 15 x 20W RGB + Warm White LED emitters, it's SPEKTRA calibrated to guarantee consistency, high-quality white values (CRI >93), a dynamic array of true colours with smooth colour mixing, and a powerful 6,282 lumen output.

The SmartBat Wash is extremely flexible, and it can be used wirelessly with the built-in battery, using CRMX, W-DMX and RDM or, alternatively, wired with power and data cables, bypassing the battery, and enabling higher brightness levels.

The beam angle can easily be adjustable through a magnetic beam shaper filter, allowing a wider coverage whilst keeping a high output. The SmartBat Wash has all the software features of the Ecl range, sharing the same user settings and capabilities.



 The pack includes:

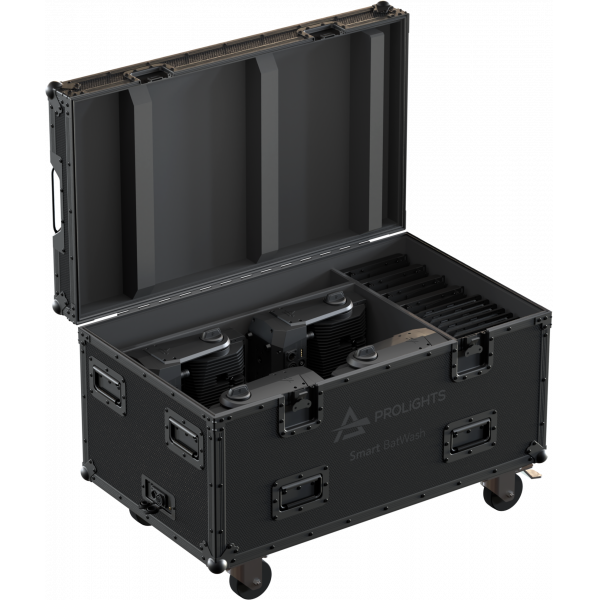

1 x FLIGHT CASE with AC SEETRONIC IP65 power IN/OUT connector outside and 4 x AC power OUT connectors inside
4 x SMARTBATWASH with 25° magnetics filter on-board
4 x barndoors (SBWBD)
1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power IN connector)
4 x 0,25 meters link power cable (SEETRONIC IP65 power OUT connector - SEETRONIC IP65 power IN connector)
4 x omega clamp (OS25)
1 x User Manual



  • High-powered IP65 LED Wash Light, wireless (CRMX+W-DMX)/wired control, battery/AC power
  • 15x20W RGB + Warm White LED source, powerful 6,282 lumen output high CRI (>93)
  • Range of holographic filters that modify the shape of the beam angle

    • The SmartBat Wash is a high-powered LED Wash Light, that can be operated wirelessly or wired.

    This IP65 Wash Light has 15 x 20W RGB + Warm White LED emitters, it's SPEKTRA calibrated to guarantee consistency, high-quality white values (CRI >93), a dynamic array of true colours with smooth colour mixing, and a powerful 6,282 lumen output.

    The SmartBat Wash is extremely flexible, and it can be used wirelessly with the built-in battery, using CRMX, W-DMX and RDM or, alternatively, wired with power and data cables, bypassing the battery, and enabling higher brightness levels.

    The beam angle can easily be adjustable through a magnetic beam shaper filter, allowing a wider coverage whilst keeping a high output. The SmartBat Wash has all the software features of the Ecl range, sharing the same user settings and capabilities.



     The pack includes:
    1 x FLIGHT CASE with AC SEETRONIC IP65 power IN/OUT connector outside and 4 x AC power OUT connectors inside
    4 x SMARTBATWASH with 25° magnetics filter on-board
    4 x barndoors (SBWBD)
    1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power IN connector)
    4 x 0,25 meters link power cable (SEETRONIC IP65 power OUT connector - SEETRONIC IP65 power IN connector)
    4 x omega clamp (OS25)
    1 x User Manual



    Features:
    High-powered IP65 LED Wash Light, wireless (CRMX+W-DMX)/wired control, battery/AC power
    15x20W RGB + Warm White LED source, powerful 6,282 lumen output high CRI (>93)
    Range of holographic filters that modify the shape of the beam angle

    LIGHT SOURCE
    • Source:
      15x20
      W
      RGB + Warm White LED
    • Luminous flux:
      6'300 lm @full
    • Lux:
      4'451
      lx
      @5 m full
    • CRI:
      > 95 @3200K ; > 93 @5600K
    • R9:
      > 98 @3200K ; > 93 @5600K
    • TLCI:
      > 84 @5600K
    • TM30 Rf:
      94.2 @3200K ; > 92 @5600K
    • TM30 Rg:
      104.4 @3200K ; > 105 @5600K
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      10
      °
    COLOUR SYSTEM
    • Colour mixing:
      RGBWW
    • CCT:
      CCT control through dedicated DMX channel
    • White presets:
      2'800K - 10'000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      built-in white presets
    DYNAMIC EFFECTS
    • Control Resolution:
      16-bit dimmer and color control
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    CONTROL
    • Supported Protocols:
      DMX512, RDM, CRMX + WDMX
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      Graphic User Interface
    • IR:
      infrared sensor controlled by remote
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Selectable PWM:
      600 to 25000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX1 (not included)
    BATTERY
    • Battery:
      16,8
      V
      lithium
    • Estimated battery life:
      up to 3 / 6 / 8 / 12 / 16 / 18 h (selectable)
    • Recharge connection:
      Directly from the mains power or magnetic fast-charge in case
    • Recharge time:
      5
      h (max)
    • Battery level indicator:
      shown on display
    • Other:
      Battery recharge in AC and DC, operation in main power with possibility to disable battery recharge throught software and charging operation in flightcase
    CONNECTIONS
    • Power connection:
      magnetic DC connector for battery recharge and Seetronic powerCON TRUE IP65 IN/OUT connector
    • Signal connection:
      IP65
      Seetronic XLR 5p IN/OUT connectors
    • Wireless Connection:
      integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      180
      W
    • Output (at 230V):
      (Data for SMARTBATWASHPACK) 2
      units on a single power line
    • Output (at 120V):
      (Data for SMARTBATWASHPACK) 1
      units on a single power line
    • Power factor:
      >0,94
    PHYSICAL
    • IP rating:
      IP65 for temporary outdoor use
    • Cooling:
      fan-free with natural convection
    • Housing:
      Sturdy die-cast aluminium body
    • Finish:
      black (RAL 9004)
    • Operating temperature:
      Ta
      0 to +45 °C (+32 to +113 °F)
    • Dimensions (WxHxD):
      381x344x143
      mm
    • Weight:
      9,8
      kg
    INSTALLATION
    • Suspension and fixing:
      any position with quick-lock omega brackets
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, RCM, FCC

    No reviews yet.

    Browse Related Categories

    More categories under Stage-Lighting

    Outdoor Fixtures
    Indoor-Fixtures
    Strobes, Pixels and Blinders
    Indoor-Moving-Lights

    15x20W LED Wash Light, IP65 rated, with an RGB + Warm White LED source, wirelessly controlled with battery or wired with mains power

    The Smart BatWash is a high-powered LED Wash light that can be operated wirelessly or wired. This IP65 Wash Light has 15 x 20W RGB + Warm White LED emitters, and it's Spektra™ calibrated to guarantee consistency, high-quality white values (CRI >93), a dynamic array of true colours with smooth colour mixing, and a powerful 6,282-lumen output. The Smart BatWash is very flexible - it can be used wirelessly with the built-in battery, using CRMX or W-DMX or, alternatively, wired with power and data cables, bypassing the battery and enabling higher brightness levels. The beam angle can easily be adjustable through a magnetic beam shaper filter, allowing a broader coverage whilst keeping a high output. The Smart BatWash has all the software features of the Ecl range, sharing the same user settings and capabilities.

    Main features:

    • High-powered IP65 LED Wash light, wireless (CRMX+W-DMX)/wired control, battery/AC power
    • 15x20W RGB + Warm White LED source, powerful 6,282-lumen output high CRI (>93)
    • Range of holographic filters that modify the shape of the beam angle
