SMARTBATPNEOPACK
Lighting

SMARTBATPNEOPACK

138x180x147mm Size
1 / 3 / 4 / 5 / 10 / 11 / 17ch DMX Channels
100-240V - 50/60Hz (SBPLUSNEOPOWER charger not included) Power Consumption
50,5 kg Weight

Experience the
SMARTBATPNEOPACK
Light Show

Pack Weight 50,5 kg
Source 7x10W RGB + Warm White LED
Luminous flux 2'927 lm @Full
Lux 1'493lx @5 m full
CRI Up to 90
R9 Up to 80
TLCI Up to 80
TM30 Rf > 90
TM30 Rg < 107
Source life expectancy > 50.000 h
Beam angle 11°
Field angle 21°
Additional optics see available accessories
Other see available accessories
Colour mixing RGB + Warm White
White presets 3.200 K -9.000K
Colour wheel virtual colour wheel with macros
Macros built-in white presets
Control Resolution 16-bit dimmer and color control
Static mode selection of static colour
Manual mode manual adjustment of colour
Auto mode built-in programs with execution speed adjustment
Supported Protocols CRMX+W-DMX, RDM
DMX channels 1 / 3 / 4 / 5 / 10 / 11 / 17ch
RDM for remote addressing and parameter configuration
Display Graphic User Interface
IR infrared sensor controlled by remote
Tilt (up to) 20° with adjustable foot support
Dimmer linear 0 - 100% electronic dimmer
Dimmer curves 4 selectable dimming modes available
Strobe / shutter 1 - 25 Hz, electronic
Selectable PWM 600 to 25000 Hz (selectable steps)
Firmware upgrade via DMX with UPBOXPRO/UPBOX1 (not included)
Battery 16,8V lithium
Estimated battery life up to 3 / 6 / 8 / 12 / 18 / 24 h (selectable)
Recharge connection magnetic fast-charge in case
Recharge time 4h (max)
Battery level indicator shown on display
Wireless Connection integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
Data connection CRMX transreceiver
Mains power supply 100-240V - 50/60Hz (SBPLUSNEOPOWER charger not included)
Max power consumption (230V) 66W
IP rating IP65 for temporary outdoor use
Cooling fan-free with natural convection
Housing Sturdy die-cast aluminium body
Finish black or mirror
Operating temperature Ta 0 to +45 °C (+32 to +113 °F)
Dimensions (WxHxD) 138x180x147mm
Weight 3,4kg
Suspension and fixing M12 threaded insert for easy clamp installation
Compliance CE, RCM, FCC, cTUVus

No downloads available yet.

SMARTBATPNEOPACK

Explore Similar
Products

Ready to Transform Your Space?

SKU: SMARTBATPNEOPACK
CATEGORY: Lighting , Entertainment Lighting , Battery Operated
BRAND: Prolights
DELIVERY For orders above AED 1,000
WARRANTY 2 years
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

The Smart BatPlus Neo builds on the groundbreaking legacy of the iconic SmartBat Plus series, a product line that transformed the battery uplighter market over a decade blending the original SmartBat DNA with state-of-the-art technologies and upgrades.

Equipped with 7x RGB+WW emitters, the Smart BatPlus Neo offers a significant performance boost. Delivering up to 3,000 lumens, it provides double the brightness of its predecessor during a 3-hour runtime. Even when operating at full power, it achieves 20% greater output over the same runtime and an average 60% improvement in primary and mixed colors, thanks to its enhanced light source. Its advanced color-mixing capabilities ensure deeper, richer tones and precision white light with high color rendering (CRI up to 90), making it a versatile and reliable choice for lighting professionals.

With a smaller footprint and available in both the classic chrome and a sleek black finish, the Neo adapts effortlessly to various event designs while maintaining its hallmark reliability and adaptability.

Its advanced Battery Management System (BMS) ensures safer recharging, selectable runtime, optimized performance and robust handling.

The Smart BatPlus Neo supports a comprehensive range of accessories and optical modifiers, offering unparalleled flexibility for diverse applications. Its intuitive magnetic mounting system allows users to attach and adjust accessories easily for precise light focusing.

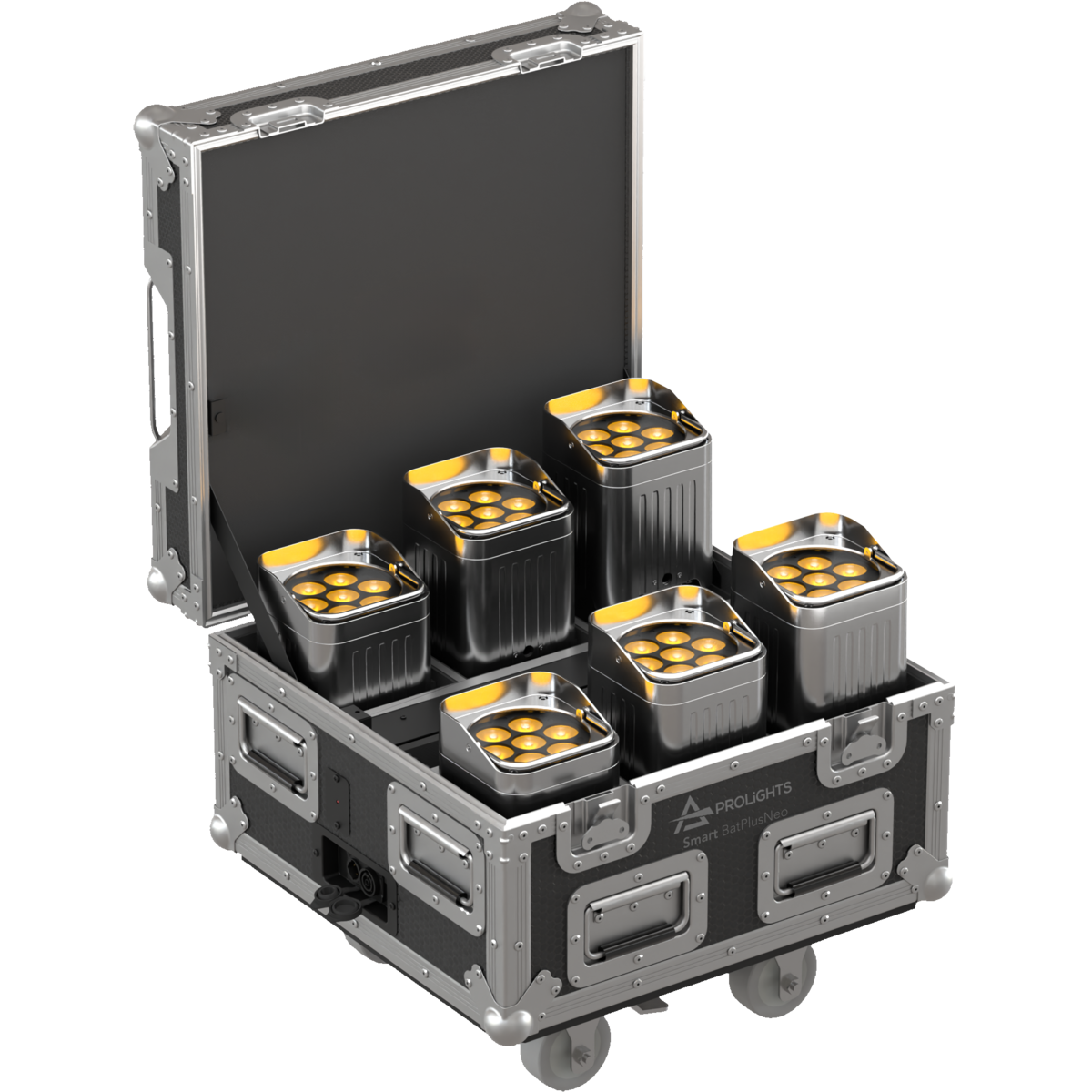

The pack includes:

  • 6 x SMARTBATPLUSNEO
  • 1 FLIGHT CASE with integrated battery charger kit (FCLSMARTBATPNEO)
  • 1 IR controller (PRL-IRC)
  • 1 PowerCON power cable
  • Maximum power consumption during charging is 570W
  • Pack Weight: 50,5 kg

    • The Smart BatPlus Neo builds on the groundbreaking legacy of the iconic SmartBat Plus series, a product line that transformed the battery uplighter market over a decade blending the original SmartBat DNA with state-of-the-art technologies and upgrades.

    Equipped with 7x RGB+WW emitters, the Smart BatPlus Neo offers a significant performance boost. Delivering up to 3,000 lumens, it provides double the brightness of its predecessor during a 3-hour runtime. Even when operating at full power, it achieves 20% greater output over the same runtime and an average 60% improvement in primary and mixed colors, thanks to its enhanced light source. Its advanced color-mixing capabilities ensure deeper, richer tones and precision white light with high color rendering (CRI up to 90), making it a versatile and reliable choice for lighting professionals.

    With a smaller footprint and available in both the classic chrome and a sleek black finish, the Neo adapts effortlessly to various event designs while maintaining its hallmark reliability and adaptability.

    Its advanced Battery Management System (BMS) ensures safer recharging, selectable runtime, optimized performance and robust handling.

    The Smart BatPlus Neo supports a comprehensive range of accessories and optical modifiers, offering unparalleled flexibility for diverse applications. Its intuitive magnetic mounting system allows users to attach and adjust accessories easily for precise light focusing.

    The pack includes:

    • 6 x SMARTBATPLUSNEO
    • 1 FLIGHT CASE with integrated battery charger kit (FCLSMARTBATPNEO)
    • 1 IR controller (PRL-IRC)
    • 1 PowerCON power cable
    Features:
    Maximum power consumption during charging is 570W
    Pack Weight: 50,5 kg

    LIGHT SOURCE
    • Source:
      7x10
      W
      RGB + Warm White LED
    • Luminous flux:
      2'927 lm
      @Full
    • Lux:
      1'493
      lx
      @5 m full
    • CRI:
      Up to 90
    • R9:
      Up to 80
    • TLCI:
      Up to 80
    • TM30 Rf:
      > 90
    • TM30 Rg:
      < 107
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      11
      °
    • Field angle:
      21
      °
    • Additional optics:
      see available accessories
    • Other:
      see available accessories
    COLOUR SYSTEM
    • Colour mixing:
      RGB + Warm White
    • White presets:
      3.200 K -9.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      built-in white presets
    DYNAMIC EFFECTS
    • Control Resolution:
      16-bit dimmer and color control
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    CONTROL
    • Supported Protocols:
      CRMX+W-DMX, RDM
    • DMX channels:
      1 / 3 / 4 / 5 / 10 / 11 / 17
      ch
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      Graphic User Interface
    • IR:
      infrared sensor controlled by remote
    MOVEMENT
    • Tilt:
      (up to) 20
      °
      with adjustable foot support
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 25
      Hz, electronic
    • Selectable PWM:
      600 to 25000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX1 (not included)
    BATTERY
    • Battery:
      16,8
      V
      lithium
    • Estimated battery life:
      up to 3 / 6 / 8 / 12 / 18 / 24 h (selectable)
    • Recharge connection:
      magnetic fast-charge in case
    • Recharge time:
      4
      h (max)
    • Battery level indicator:
      shown on display
    CONNECTIONS
    • Wireless Connection:
      integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
    • Data connection:
      CRMX transreceiver
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz (SBPLUSNEOPOWER charger not included)
    • Max power consumption (230V):
      66
      W
    PHYSICAL
    • IP rating:
      IP65 for temporary outdoor use
    • Cooling:
      fan-free with natural convection
    • Housing:
      Sturdy die-cast aluminium body
    • Finish:
      black or mirror
    • Operating temperature:
      Ta
      0 to +45 °C (+32 to +113 °F)
    • Dimensions (WxHxD):
      138x180x147
      mm
    • Weight:
      3,4
      kg
    INSTALLATION
    • Suspension and fixing:
      M12 threaded insert for easy clamp installation
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, RCM, FCC, cTUVus

    No reviews yet.

    Browse Related Categories

    More categories under Lighting

    Architectural
    Architectural
    Stage-Lighting
    Stage-Lighting
    Theatre, Film & Studio
    Theatre, Film & Studio
    Laser
    Laser
    Special-Effects
    Special-Effects
    Lighting Control
    Lighting Control
    Eletronics
    Signal Distribution

    Pack with 6 SMARTBATPLUSNEO, battery charger flight case, IR controller, power cable

    The Smart BatPlus Neo builds on the groundbreaking legacy of the iconic SmartBat Plus series, a product line that transformed the battery uplighter market over a decade blending the original SmartBat DNA with state-of-the-art technologies and upgrades. Equipped with 7x RGB+WW emitters, the Smart BatPlus Neo offers a significant performance boost. Delivering up to 3,000 lumens, it provides double the brightness of its predecessor during a 3-hour runtime. Even when operating at full power, it achieves 20% greater output over the same runtime and an average 60% improvement in primary and mixed colors, thanks to its enhanced light source. Its advanced color-mixing capabilities ensure deeper, richer tones and precision white light with high color rendering (CRI up to 90), making it a versatile and reliable choice for lighting professionals. With a smaller footprint and available in both the classic chrome and a sleek black finish, the Neo adapts effortlessly to various event designs while maintaining its hallmark reliability and adaptability. Its advanced Battery Management System (BMS) ensures safer recharging, selectable runtime, optimized performance and robust handling. The Smart BatPlus Neo supports a comprehensive range of accessories and optical modifiers, offering unparalleled flexibility for diverse applications. Its intuitive magnetic mounting system allows users to attach and adjust accessories easily for precise light focusing. The pack includes:
    • 6 x SMARTBATPLUSNEO
    • 1 FLIGHT CASE with integrated battery charger kit (FCLSMARTBATPNEO)
    • 1 IR controller (PRL-IRC)
    • 1 PowerCON power cable

    Main features:

    • Maximum power consumption during charging is 570W
    • Pack Weight: 50,5 kg
