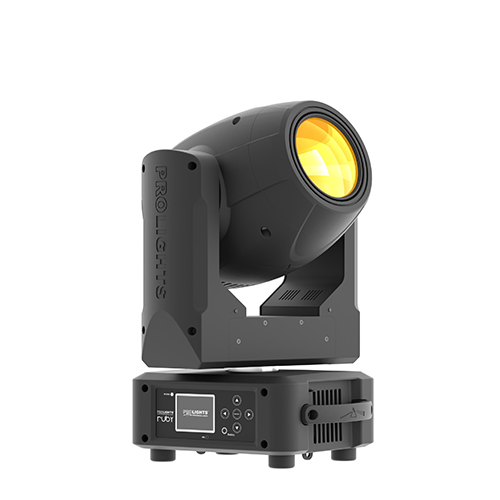

RUBYFCX
Indoor Moving Lights

RUBYFCX

194x311x133mm Size
18 / 20 / 22 / 23ch DMX Channels
Seetronic powerCON IN/OUT connectors Power Consumption
12kg Weight

Experience the
RUBYFCX
Light Show

Source 50W
Lux 141'929lx @3 m full
Lux 51'094lx @5 m full
Source life expectancy > 50.000 h
Beam angle 2°
Lens diameter 116mm
Lens type high-quality glass lens optics
Focus motorised 8-bit
Colour mixing RGB / FC
CCT CCT control through dedicated DMX channel
White presets 2.000 K - 8.000K
Colour wheel virtual colour wheel with macros
Macros several pre-built pixel macros with adjustable speed
Circular prism 8-f with bi-directional rotation, indexing
Linear prism 6-f with bi-directional rotation, indexing
Frost to soften the beam edge
Fixed gobos 17 fixed gobos + open
Supported Protocols DMX512, RDM, Art-Net, W-DMX
DMX channels 18 / 20 / 22 / 23ch
RDM for remote addressing and parameter configuration
Display LCD high resolution colour display with autoflip
Hibernation power safe mode when lost DMX
Master/Slave for synchronised operation of more units linked in a chain
Pan 540° / 630° - 8/16-bit resolution with 360° endless rotation
Tilt 265° - 8/16-bit resolution with 360° endless rotation
Position feedback automatic repositioning after external movement
Dimmer linear 0 - 100% electronic dimmer
Strobe / shutter 1 - 30 Hz, electronic
Display battery included, self-charging battery backup
Firmware upgrade via DMX with UPBOXPRO/UPBOX2 (not included)
Power connection Seetronic powerCON IN/OUT connectors
Signal connection Amphenol XLR 5p IN/OUT connectors
Wireless Connection integrated W-DMX receiver
Data connection Art-Net RJ45 IN/OUT
Mains power supply 100-240V - 50/60Hz
Max power consumption (230V) 122W
Max power consumption (120V) 124W
Standby power 56.5W
IP rating IP20
Cooling forced-air with low-noise fan
Housing Sturdy die-cast aluminium body
Finish black
Operating temperature Ta 0 to +45 °C (+32 to +113 °F)
Dimensions (WxHxD) 194x311x133mm
Weight 12kg
Suspension and fixing any position with quick-lock omega brackets
Compliance CE, UKCA, RCM

No downloads available yet.

RUBYFCX

Explore Similar
Products

VPL-2RN
Order Code VPL-2RN View Details
Xwash1200
Order Code Xwash1200 View Details
VPL-Extreme
Order Code VPL-Extreme View Details

Ready to Transform Your Space?

SKU: RUBYFCX
CATEGORY: Indoor Moving Lights
BRAND: Prolights
DELIVERY For orders above AED 1,000
WARRANTY 2 years
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

The Ruby FCX is a LED replacement for a discharge beam light. Maintaining the bright, tight,  2° beam and adding full colour mixing through the high-efficiency RGB source.

Ruby FCX is packed with all the features you would expect from a beam effect moving the light - such as gobos, 8f circular and 6f linear prism, frost and infinite pan and tilt rotation.

  • 50W RGB LED source incredibly bright and colourful
  • Infinite pan & tilt rotation delivers new aerial effects
  • Control through DMX, Art-Net and Wireless DMX

    • The Ruby FCX is a LED replacement for a discharge beam light. Maintaining the bright, tight,  2° beam and adding full colour mixing through the high-efficiency RGB source.

    Ruby FCX is packed with all the features you would expect from a beam effect moving the light - such as gobos, 8f circular and 6f linear prism, frost and infinite pan and tilt rotation.

    Features:
    50W RGB LED source incredibly bright and colourful
    Infinite pan & tilt rotation delivers new aerial effects
    Control through DMX, Art-Net and Wireless DMX

    LIGHT SOURCE
    • Source:
      50
      W
    • Lux:
      141'929
      lx
      @3 m full
    • Lux:
      51'094
      lx
      @5 m full
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      2
      °
    • Lens diameter:
      116
      mm
    • Lens type:
      high-quality glass lens optics
    • Focus:
      motorised 8-bit
    COLOUR SYSTEM
    • Colour mixing:
      RGB / FC
    • CCT:
      CCT control through dedicated DMX channel
    • White presets:
      2.000 K - 8.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      several pre-built pixel macros with adjustable speed
    DYNAMIC EFFECTS
    • Circular prism:
      8
      -f
      with bi-directional rotation, indexing
    • Linear prism:
      6
      -f
      with bi-directional rotation, indexing
    • Frost:
      to soften the beam edge
    GOBOS
    • Fixed gobos:
      17
      fixed gobos + open
    CONTROL
    • Supported Protocols:
      DMX512, RDM, Art-Net, W-DMX
    • DMX channels:
      18 / 20 / 22 / 23
      ch
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      LCD high resolution colour display with autoflip
    • Hibernation:
      power safe mode when lost DMX
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    MOVEMENT
    • Pan:
      540° / 630
      °
      - 8/16-bit resolution with 360° endless rotation
    • Tilt:
      265
      °
      - 8/16-bit resolution with 360° endless rotation
    • Position feedback:
      automatic repositioning after external movement
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Display battery:
      included, self-charging battery backup
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX2 (not included)
    CONNECTIONS
    • Power connection:
      Seetronic powerCON IN/OUT connectors
    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    • Wireless Connection:
      integrated W-DMX receiver
    • Data connection:
      Art-Net
      RJ45 IN/OUT
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      122
      W
    • Max power consumption (120V):
      124
      W
    • Standby power:
      56.5W
    PHYSICAL
    • IP rating:
      IP20
    • Cooling:
      forced-air with low-noise fan
    • Housing:
      Sturdy die-cast aluminium body
    • Finish:
      black
    • Operating temperature:
      Ta
      0 to +45 °C (+32 to +113 °F)
    • Dimensions (WxHxD):
      194x311x133
      mm
    • Weight:
      12
      kg
    INSTALLATION
    • Suspension and fixing:
      any position with quick-lock omega brackets
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA, RCM

    No reviews yet.

    Browse Related Categories

    More categories under Entertainment Lighting

    Outdoor Moving Lights
    Indoor-Fixtures
    Battery Operated
    Strob
    Outdoor Fixtures
    Lazer
    Effects Lighting
    Battery Operated

    50W RGB FC LED beam light with infinite rotation

    The Ruby FCX is a LED replacement for a discharge beam light. Maintaining the bright, tight,  2° beam and adding full colour mixing through the high-efficiency RGB source. Ruby FCX is packed with all the features you would expect from a beam effect moving the light - such as gobos, 8f circular and 6f linear prism, frost and infinite pan and tilt rotation.

    Main features:

    • 50W RGB LED source incredibly bright and colourful
    • Infinite pan & tilt rotation delivers new aerial effects
    • Control through DMX, Art-Net and Wireless DMX
