PIXIEWASHBK
Indoor Moving Lights

PIXIEWASHBK

253x329x205mm Size
13 / 16ch DMX Channels
Neutrik powerCON IN/OUT connectors Power Consumption
7kg Weight

Experience the
PIXIEWASHBK
Light Show

Source 60W RGBW Osram Ostar LED
Luminous flux (7°) 1'432 lm - (40°) 1'311 @Full
Lux (7°) 3'808 lx - (40°) 296lx @5 m full
Source life expectancy > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
Zoom range 7° - 40° motorised linear zoom
Lens diameter 100mm
Lens type high-quality glass lens optics
Colour mixing RGBW / FC
CCT CCT control through dedicated DMX channel
White presets 2.700 K ~ 8.000K
Colour wheel virtual colour wheel with macros
Auto mode built-in programs with execution speed adjustment
Supported Protocols DMX512
DMX channels 13 / 16ch
Display Graphic User Interface
Master/Slave for synchronised operation of more units linked in a chain
Pan 540° - 16-bit resolution
Tilt 270° - 16-bit resolution
Position feedback automatic repositioning after external movement
Dimmer linear 0 - 100% electronic dimmer
Dimmer curves 4 selectable dimming modes available
Strobe / shutter 1 - 30 Hz, electronic
Display battery included, self-charging battery backup
Firmware upgrade via DMX with UPBOXPRO/UPBOX1 (not included)
Power connection Neutrik powerCON IN/OUT connectors
Signal connection XLR 5p IN/OUT connectors
Mains power supply 100-240V - 50/60Hz
Max power consumption (230V) 112W
Output (at 230V) 18 units on a single power line
IP rating IP20
Cooling forced-air with low-noise fan
Housing Aluminium structure with high-resistance polycarbonate cover
Finish black or white finishing
Operating temperature Ta -10 to +45 °C (+14 to +113 °F)
Dimensions (WxHxD) 253x329x205mm
Weight 7kg
Suspension and fixing any position with quick-lock omega brackets
Compliance CE, RCM

No downloads available yet.

PIXIEWASHBK

Explore Similar
Products

VPL-2RN
Order Code VPL-2RN View Details
Xwash1200
Order Code Xwash1200 View Details
VPL-Extreme
Order Code VPL-Extreme View Details

Ready to Transform Your Space?

SKU: PIXIEWASHBK
CATEGORY: Indoor Moving Lights
BRAND: Prolights
DELIVERY For orders above AED 1,000
WARRANTY 2 years
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

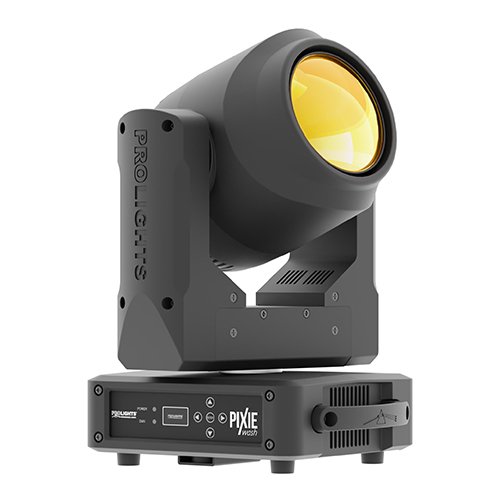

Pixie Wash is a single source, compact LED wash luminaire with a 7° to 40° zoom. Featuring a single 60W LED, its small form factor and near-silent cooling make it ideal for low ceilings or noise-sensitive environments.

  • Single 60W Osram Ostar RGBW LED with extensive colour range
  • Massive 7° to 40° linear zoom with a smooth, even beam
  • HD dimming

    • Pixie Wash is a single source, compact LED wash luminaire with a 7° to 40° zoom. Featuring a single 60W LED, its small form factor and near-silent cooling make it ideal for low ceilings or noise-sensitive environments.

    Features:
    Single 60W Osram Ostar RGBW LED with extensive colour range
    Massive 7° to 40° linear zoom with a smooth, even beam
    HD dimming

    LIGHT SOURCE
    • Source:
      60
      W
      RGBW Osram Ostar LED
    • Luminous flux:
      (7°) 1'432 lm - (40°) 1'311
      @Full
    • Lux:
      (7°) 3'808 lx - (40°) 296
      lx
      @5 m full
    • Source life expectancy:
      > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
    OPTICS
    • Zoom range:
      7° - 40
      °
      motorised linear zoom
    • Lens diameter:
      100
      mm
    • Lens type:
      high-quality glass lens optics
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • CCT:
      CCT control through dedicated DMX channel
    • White presets:
      2.700 K ~ 8.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    DYNAMIC EFFECTS
    • Auto mode:
      built-in programs with execution speed adjustment
    CONTROL
    • Supported Protocols:
      DMX512
    • DMX channels:
      13 / 16
      ch
    • Display:
      Graphic User Interface
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    MOVEMENT
    • Pan:
      540
      °
      - 16-bit resolution
    • Tilt:
      270
      °
      - 16-bit resolution
    • Position feedback:
      automatic repositioning after external movement
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Display battery:
      included, self-charging battery backup
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX1 (not included)
    CONNECTIONS
    • Power connection:
      Neutrik powerCON IN/OUT connectors
    • Signal connection:
      XLR 5p IN/OUT connectors
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      112
      W
    • Output (at 230V):
      18
      units on a single power line
    PHYSICAL
    • IP rating:
      IP20
    • Cooling:
      forced-air with low-noise fan
    • Housing:
      Aluminium structure with high-resistance polycarbonate cover
    • Finish:
      black or white finishing
    • Operating temperature:
      Ta
      -10 to +45 °C (+14 to +113 °F)
    • Dimensions (WxHxD):
      253x329x205
      mm
    • Weight:
      7
      kg
    INSTALLATION
    • Suspension and fixing:
      any position with quick-lock omega brackets
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, RCM

    No reviews yet.

    Browse Related Categories

    More categories under Entertainment Lighting

    Outdoor Moving Lights
    Indoor-Fixtures
    Battery Operated
    Strob
    Outdoor Fixtures
    Lazer
    Effects Lighting
    Battery Operated

    60W single source compact and zoomable LED wash luminaire

    Pixie Wash is a single source, compact LED wash luminaire with a 7° to 40° zoom. Featuring a single 60W LED, its small form factor and near-silent cooling make it ideal for low ceilings or noise-sensitive environments.

    Main features:

    • Single 60W Osram Ostar RGBW LED with extensive colour range
    • Massive 7° to 40° linear zoom with a smooth, even beam
    • HD dimming
