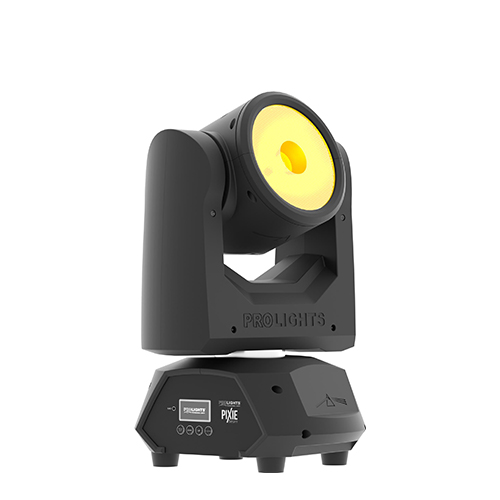

PIXIEBEAM
Indoor Moving Lights

PIXIEBEAM

208x300x144mm Size
14 / 16 / 18ch DMX Channels
Neutrik powerCON IN/OUT connectors Power Consumption
4kg Weight

Experience the
PIXIEBEAM
Light Show

Source 60W RGBW Osram Ostar LEDs
Lux 11'120lx @3 m full
Source life expectancy > 50.000 h
Beam angle 4,5°
Lens diameter 100mm
Colour mixing RGBW / FC
CCT CCT control through dedicated DMX channel
White presets 2.000 K ~ 8.000K
Colour wheel virtual colour wheel with macros
Supported Protocols DMX512, RDM
DMX channels 14 / 16 / 18ch
RDM for remote addressing and parameter configuration
Display Graphic User Interface
Hibernation power safe mode when lost DMX
Master/Slave for synchronised operation of more units linked in a chain
Pan 540° - 630° - 8/16-bit resolution with 360° endless rotation
Tilt 360° - 8/16-bit resolution with 360° endless rotation
Position feedback automatic repositioning after external movement
Dimmer linear 0 - 100% electronic dimmer
Strobe / shutter 1 - 25 Hz, electronic
Firmware upgrade via DMX with UPBOXPRO/UPBOX2 (not included)
Power connection Neutrik powerCON IN/OUT connectors
Signal connection Amphenol XLR 5p IN/OUT connectors
Mains power supply 100-240V - 50/60Hz
Max power consumption (230V) 100W
Output (at 230V) 15 units on a single power line
Max power consumption (120V) 100W
IP rating IP20
Cooling forced-air with low-noise fan
Housing Aluminium structure with high-resistance polycarbonate cover
Finish black
Operating temperature Ta -10 to +45 °C (+14 to +113 °F)
Dimensions (WxHxD) 208x300x144mm
Weight 4kg
Suspension and fixing any position with quick-lock omega brackets
Compliance CE, UKCA, RCM

No downloads available yet.

PIXIEBEAM

Explore Similar
Products

VPL-2RN
Order Code VPL-2RN View Details
Xwash1200
Order Code Xwash1200 View Details
VPL-Extreme
Order Code VPL-Extreme View Details

Ready to Transform Your Space?

SKU: PIXIEBEAM
CATEGORY: Indoor Moving Lights
BRAND: Prolights
DELIVERY For orders above AED 1,000
WARRANTY 2 years
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

Pixie Beam is a fast, bright and compact moving LED beam luminaire. Some looks are all about scale. The Pixie Beam takes this idea to a different level featuring incredible speed and infinite rotation of both pan and tilt.

  • Single 60W Osram Ostar RGBW LED with 100 mm lens delivers a bright, consistent 4,5° beam
  • Compact, lightweight and incredibly fast - the Pixie Beam moves with 'moving mirror' speed
  • Infinite pan and tilt rotation for additional effects

    • Pixie Beam is a fast, bright and compact moving LED beam luminaire. Some looks are all about scale. The Pixie Beam takes this idea to a different level featuring incredible speed and infinite rotation of both pan and tilt.

    Features:
    Single 60W Osram Ostar RGBW LED with 100 mm lens delivers a bright, consistent 4,5° beam
    Compact, lightweight and incredibly fast - the Pixie Beam moves with 'moving mirror' speed
    Infinite pan and tilt rotation for additional effects

    LIGHT SOURCE
    • Source:
      60
      W
      RGBW Osram Ostar LEDs
    • Lux:
      11'120
      lx
      @3 m full
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      4,5
      °
    • Lens diameter:
      100
      mm
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • CCT:
      CCT control through dedicated DMX channel
    • White presets:
      2.000 K ~ 8.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    CONTROL
    • Supported Protocols:
      DMX512, RDM
    • DMX channels:
      14 / 16 / 18
      ch
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      Graphic User Interface
    • Hibernation:
      power safe mode when lost DMX
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    MOVEMENT
    • Pan:
      540° - 630
      °
      - 8/16-bit resolution with 360° endless rotation
    • Tilt:
      360
      °
      - 8/16-bit resolution with 360° endless rotation
    • Position feedback:
      automatic repositioning after external movement
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Strobe / shutter:
      1 - 25
      Hz, electronic
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX2 (not included)
    CONNECTIONS
    • Power connection:
      Neutrik powerCON IN/OUT connectors
    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      100
      W
    • Output (at 230V):
      15
      units on a single power line
    • Max power consumption (120V):
      100
      W
    PHYSICAL
    • IP rating:
      IP20
    • Cooling:
      forced-air with low-noise fan
    • Housing:
      Aluminium structure with high-resistance polycarbonate cover
    • Finish:
      black
    • Operating temperature:
      Ta
      -10 to +45 °C (+14 to +113 °F)
    • Dimensions (WxHxD):
      208x300x144
      mm
    • Weight:
      4
      kg
    INSTALLATION
    • Suspension and fixing:
      any position with quick-lock omega brackets
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA, RCM

    No reviews yet.

    Browse Related Categories

    More categories under Entertainment Lighting

    Outdoor Moving Lights
    Indoor-Fixtures
    Battery Operated
    Strob
    Outdoor Fixtures
    Lazer
    Effects Lighting
    Battery Operated

    60 W single source moving LED beam luminaire with continuous rotation

    Pixie Beam is a fast, bright and compact moving LED beam luminaire. Some looks are all about scale. The Pixie Beam takes this idea to a different level featuring incredible speed and infinite rotation of both pan and tilt.

    Main features:

    • Single 60 W Osram Ostar RGBW LED with 100 mm lens delivers a bright, consistent 4,5° beam
    • Compact, lightweight and incredibly fast - the Pixie Beam moves with 'moving mirror' speed
    • Infinite pan and tilt rotation for additional effects
