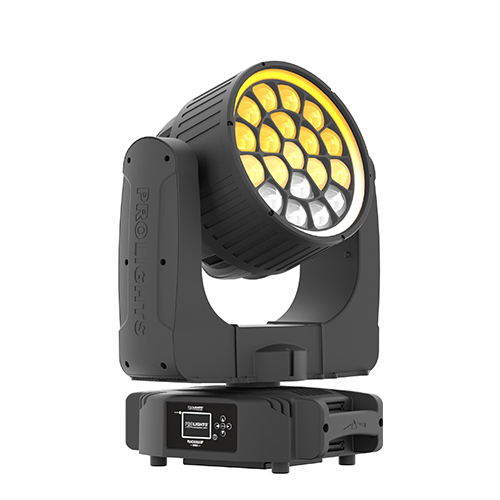

PANORAMAIPWBX
Outdoor Moving Lights

PANORAMAIPWBX

531x676x326mm Size
V1: 18 / 42 / 44 / 120 - V2: 18 / 42 / 44 / 120ch DMX Channels
Neutrik powerCON TRUE1 IN connector Power Consumption
35kg Weight

Experience the
PANORAMAIPWBX
Light Show

Source 19x40W RGBW Osram Ostar LEDs
Luminous flux (4,5°) 4'452 lm - (36°) 5'803 @Full
Lux (4,5°) 33'893 lx - (36°) 1'764lx @5 m full
Other outer RGB, pixel ring with frost film
Source life expectancy > 50.000 h
Zoom range 4,5° - 36° motorised linear zoom
Lens type high-quality glass lens optics
Additional optics diffuser on outer pixel ring
Colour mixing RGBW / FC
CCT CCT control through dedicated DMX channel
White presets 2.000 K - 10.000K
Colour wheel virtual colour wheel with macros
Macros several pre-built pixel macros with adjustable speed
Pixel patterns pre-programmed static and dynamic pixel patterns
FX generator adjustable foreground/background colour, index, speed, direction
Special features outer RGB, pixel ring with several built in FX macros
Supported Protocols DMX512, RDM, Art-Net, W-DMX
DMX channels V1: 18 / 42 / 44 / 120 - V2: 18 / 42 / 44 / 120ch
Pixel control pixel2pixel control
RDM for remote addressing and parameter configuration
Display LCD high resolution colour display with autoflip
Hibernation power safe mode when lost DMX
Master/Slave for synchronised operation of more units linked in a chain
Pan 540° - 630° - 16-bit resolution
Tilt 267° - 16-bit resolution
Position feedback automatic repositioning after external movement
Dimmer linear 0 - 100% electronic dimmer
Strobe / shutter 1 - 30 Hz, electronic
Display battery included, self-charging battery backup
Firmware upgrade via DMX with UPBOXPRO/UPBOX2 (not included)
Power connection Neutrik powerCON TRUE1 IN connector
Signal connection Seetronic XLR 5p IN/OUT connectors
Wireless Connection integrated W-DMX receiver
Data connection Art-Net RJ45 IN/OUT
Mains power supply 100-240V - 50/60Hz
Max power consumption (230V) 650W
Output (at 230V) 4 units on a single power line
Standby power 41W
Power factor > 0,95
IP rating IP65 for temporary outdoor use
Cooling heat pipe with low-noise fan
Housing Weatherproof IP65 construction
Finish black
Operating temperature Ta -20 to +40 °C (-4 to +104 °F)
Dimensions (WxHxD) 531x676x326mm
Weight 35kg
Suspension and fixing any position with quick-lock omega brackets
Compliance CE, UKCA, RCM

No downloads available yet.

PANORAMAIPWBX

Explore Similar
Products

Ready to Transform Your Space?

SKU: PANORAMAIPWBX
CATEGORY: Outdoor Moving Lights
BRAND: Prolights
DELIVERY For orders above AED 1,000
WARRANTY 2 years
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

PanoramaIP WBX is a stunning IP65 high-output, LED wash light with pixel ring designed to bring the workhorse LED wash light to outdoor events. Featuring 19 of Osrams new 40 W RGBW Ostar LEDs, it delivers a massive output with a huge colour range and an extensive toolkit of effects.

  • IP65 for temporary outdoor application, not for fixed installation.
  • 19 LED RGBW / FC Osram 40W and outer RGB pixel ring.
  • Massive 4,5° to 36° linear zoom range from beam to wash.
  • Individual pixel control with on-board FX generator for both LEDs and pixel ring for fast and precise effects.
  • Heat-pipe cooling system for efficient cooling with virtually no noise.

    • PanoramaIP WBX is a stunning IP65 high-output, LED wash light with pixel ring designed to bring the workhorse LED wash light to outdoor events. Featuring 19 of Osrams new 40 W RGBW Ostar LEDs, it delivers a massive output with a huge colour range and an extensive toolkit of effects.

    Features:
    IP65 for temporary outdoor application, not for fixed installation.
    19 LED RGBW / FC Osram 40W and outer RGB pixel ring.
    Massive 4,5° to 36° linear zoom range from beam to wash.
    Individual pixel control with on-board FX generator for both LEDs and pixel ring for fast and precise effects.
    Heat-pipe cooling system for efficient cooling with virtually no noise.

    LIGHT SOURCE
    • Source:
      19x40
      W
      RGBW Osram Ostar LEDs
    • Luminous flux:
      (4,5°) 4'452 lm - (36°) 5'803
      @Full
    • Lux:
      (4,5°) 33'893 lx - (36°) 1'764
      lx
      @5 m full
    • Other:
      outer RGB, pixel ring with frost film
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Zoom range:
      4,5° - 36
      °
      motorised linear zoom
    • Lens type:
      high-quality glass lens optics
    • Additional optics:
      diffuser on outer pixel ring
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • CCT:
      CCT control through dedicated DMX channel
    • White presets:
      2.000 K - 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      several pre-built pixel macros with adjustable speed
    DYNAMIC EFFECTS
    • Pixel patterns:
      pre-programmed static and dynamic pixel patterns
    • FX generator:
      adjustable foreground/background colour, index, speed, direction
    • Special features:
      outer RGB, pixel ring with several built in FX macros
    CONTROL
    • Supported Protocols:
      DMX512, RDM, Art-Net, W-DMX
    • DMX channels:
      V1: 18 / 42 / 44 / 120 - V2: 18 / 42 / 44 / 120
      ch
    • Pixel control:
      pixel2pixel control
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      LCD high resolution colour display with autoflip
    • Hibernation:
      power safe mode when lost DMX
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    MOVEMENT
    • Pan:
      540° - 630
      °
      - 16-bit resolution
    • Tilt:
      267
      °
      - 16-bit resolution
    • Position feedback:
      automatic repositioning after external movement
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Display battery:
      included, self-charging battery backup
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX2 (not included)
    CONNECTIONS
    • Power connection:
      Neutrik powerCON TRUE1 IN connector
    • Signal connection:
      Seetronic XLR 5p IN/OUT connectors
    • Wireless Connection:
      integrated W-DMX receiver
    • Data connection:
      Art-Net
      RJ45 IN/OUT
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      650
      W
    • Output (at 230V):
      4
      units on a single power line
    • Standby power:
      41W
    • Power factor:
      > 0,95
    PHYSICAL
    • IP rating:
      IP65 for temporary outdoor use
    • Cooling:
      heat pipe with low-noise fan
    • Housing:
      Weatherproof IP65 construction
    • Finish:
      black
    • Operating temperature:
      Ta
      -20 to +40 °C (-4 to +104 °F)
    • Dimensions (WxHxD):
      531x676x326
      mm
    • Weight:
      35
      kg
    INSTALLATION
    • Suspension and fixing:
      any position with quick-lock omega brackets
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA, RCM

    No reviews yet.

    Browse Related Categories

    More categories under Entertainment Lighting

    Indoor-Fixtures
    Battery Operated
    Strob
    Outdoor Fixtures
    Lazer
    Effects Lighting
    Indoor Moving Lights
    Battery Operated

    19x40W IP65 moving wash, beam and pixel ring effect light

    PanoramaIP WBX is a stunning IP65 high-output, LED wash light with pixel ring designed to bring the workhorse LED wash light to outdoor events. Featuring 19 of Osrams new 40 W RGBW Ostar LEDs, it delivers a massive output with a huge colour range and an extensive toolkit of effects.

    Main features:

    • IP65 for temporary outdoor application, not for fixed installation.
    • 19 LED RGBW / FC Osram 40W and outer RGB pixel ring.
    • Massive 4,5° to 36° linear zoom range from beam to wash.
    • Individual pixel control with on-board FX generator for both LEDs and pixel ring for fast and precise effects.
    • Heat-pipe cooling system for efficient cooling with virtually no noise.
