PANORAMAIPAB
Outdoor Moving Lights

PANORAMAIPAB

outer: 15,8 mm - image: 9 mm - thickness: 0,3 mm Size
19 / 22 / 28ch DMX Channels
Neutrik powerCON TRUE1 IN connector Power Consumption
39kg Weight

Experience the
PANORAMAIPAB
Light Show

Source 440W S Osram Sirius HRI
Source CCT 7.000K
Luminous flux 12'457
Lux 1'270'259lx @5 m full
Lux 317'565lx @10 m
CRI 80
Source life expectancy 1.500 h
Beam angle 2°
Lens diameter 167mm
Lens type high-quality glass lens optics
Focus motorised with auto-focus
Colour mixing CMY colour system on 3 gradually fading colour wheels
CCT on wheel 2.500 K and 3.200 K + CTB
Colour wheel 13 dichroic filters on 3 independent colour wheels
FX generator prisms overlap for spectacular aerial effects
Circular prism 16-f with bi-directional rotation, indexing
Linear prism 6-f with bi-directional rotation, indexing
Frost linear 0-100%
Rotating gobos 9 rotating gobos + open, interchangeable, indexing
Gobo size outer: 15,8 mm - image: 9 mm - thickness: 0,3 mm
Fixed gobos 15 fixed gobos + open
Supported Protocols DMX512, RDM, Art-Net, W-DMX
DMX channels 19 / 22 / 28ch
RDM for remote addressing and parameter configuration
Display LCD high resolution colour display with autoflip
Hibernation power safe mode when lost DMX
Pan 630° - 540° - 16-bit resolution
Tilt 230° - 16-bit resolution
Position feedback automatic repositioning after external movement
Dimmer linear 0 - 100% mechanical dimmer
Strobe / shutter 1 - 28 flash(s), mechanical
Firmware upgrade via menu with internal memory or via USB - DMX interface (UPBOXPRO/UPBOX2) not included
Power connection Neutrik powerCON TRUE1 IN connector
Signal connection Seetronic XLR 5p IN/OUT connectors
Wireless Connection integrated W-DMX receiver
Data connection Art-Net RJ45 IN/OUT
Mains power supply 100-240V - 50/60Hz
Max power consumption (230V) 522W
Max power consumption (120V) 522W
IP rating IP65 for temporary outdoor use
Cooling forced-air with low-noise fan
Housing Aluminium structure with high-resistance polycarbonate cover
Finish black
Operating temperature Ta -20 to +40 °C (-4 to +104 °F)
Dimensions (WxHxD) 441x746x326mm
Weight 39kg
Suspension and fixing any position with quick-lock omega brackets
Compliance CE, UKCA, RCM

No downloads available yet.

PANORAMAIPAB

Explore Similar
Products

Ready to Transform Your Space?

SKU: PANORAMAIPAB
CATEGORY: Outdoor Moving Lights
BRAND: Prolights
DELIVERY For orders above AED 1,000
WARRANTY 2 years
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

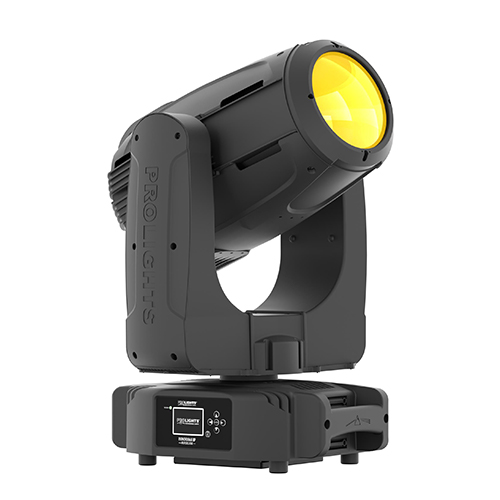

PanoramaIP AirBeam is a stunning IP65 moving beam light which delivers an unbelievable bright, fat 2° beam ideal for an outdoor searchlight and big air look. Designed to make a statement, the PanoramaIP AirBeam can truly make an event stand out or fill a large outdoor space with spectacular beams.

  • IP65 rated for temporary outdoor application, not for fixed installation
  • Powerful 440W S Osram HTI lamp combined with 167 mm HD front lens for bright 2° beam
  • Extensive set of effects including linear CMY mixing, rotating gobo wheel, static gobo wheel, circular and linear prisms, linear frost and focus

    • PanoramaIP AirBeam is a stunning IP65 moving beam light which delivers an unbelievable bright, fat 2° beam ideal for an outdoor searchlight and big air look. Designed to make a statement, the PanoramaIP AirBeam can truly make an event stand out or fill a large outdoor space with spectacular beams.

    Features:
    IP65 rated for temporary outdoor application, not for fixed installation
    Powerful 440W S Osram HTI lamp combined with 167 mm HD front lens for bright 2° beam
    Extensive set of effects including linear CMY mixing, rotating gobo wheel, static gobo wheel, circular and linear prisms, linear frost and focus

    LIGHT SOURCE
    • Source:
      440
      W
      S Osram Sirius HRI
    • Source CCT:
      7.000
      K
    • Luminous flux:
      12'457
    • Lux:
      1'270'259
      lx
      @5 m full
    • Lux:
      317'565
      lx
      @10 m
    • CRI:
      80
    • Source life expectancy:
      1.500 h
    OPTICS
    • Beam angle:
      2
      °
    • Lens diameter:
      167
      mm
    • Lens type:
      high-quality glass lens optics
    • Focus:
      motorised with auto-focus
    COLOUR SYSTEM
    • Colour mixing:
      CMY colour system on 3 gradually fading colour wheels
    • CCT:
      on wheel 2.500 K and 3.200 K + CTB
    • Colour wheel:
      13
      dichroic filters on 3 independent colour wheels
    DYNAMIC EFFECTS
    • FX generator:
      prisms overlap for spectacular aerial effects
    • Circular prism:
      16
      -f
      with bi-directional rotation, indexing
    • Linear prism:
      6
      -f
      with bi-directional rotation, indexing
    • Frost:
      linear 0-100%
    GOBOS
    • Rotating gobos:
      9
      rotating gobos + open, interchangeable, indexing
    • Gobo size:
      outer: 15,8 mm - image: 9 mm - thickness: 0,3 mm
    • Fixed gobos:
      15
      fixed gobos + open
    CONTROL
    • Supported Protocols:
      DMX512, RDM, Art-Net, W-DMX
    • DMX channels:
      19 / 22 / 28
      ch
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      LCD high resolution colour display with autoflip
    • Hibernation:
      power safe mode when lost DMX
    MOVEMENT
    • Pan:
      630° - 540
      °
      - 16-bit resolution
    • Tilt:
      230
      °
      - 16-bit resolution
    • Position feedback:
      automatic repositioning after external movement
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% mechanical dimmer
    • Strobe / shutter:
      1 - 28
      flash(s), mechanical
    • Firmware upgrade:
      via menu with internal memory or via USB - DMX interface (UPBOXPRO/UPBOX2) not included
    CONNECTIONS
    • Power connection:
      Neutrik powerCON TRUE1 IN connector
    • Signal connection:
      Seetronic XLR 5p IN/OUT connectors
    • Wireless Connection:
      integrated W-DMX receiver
    • Data connection:
      Art-Net
      RJ45 IN/OUT
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      522
      W
    • Max power consumption (120V):
      522
      W
    PHYSICAL
    • IP rating:
      IP65 for temporary outdoor use
    • Cooling:
      forced-air with low-noise fan
    • Housing:
      Aluminium structure with high-resistance polycarbonate cover
    • Finish:
      black
    • Operating temperature:
      Ta
      -20 to +40 °C (-4 to +104 °F)
    • Dimensions (WxHxD):
      441x746x326
      mm
    • Weight:
      39
      kg
    INSTALLATION
    • Suspension and fixing:
      any position with quick-lock omega brackets
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA, RCM
