Lighting

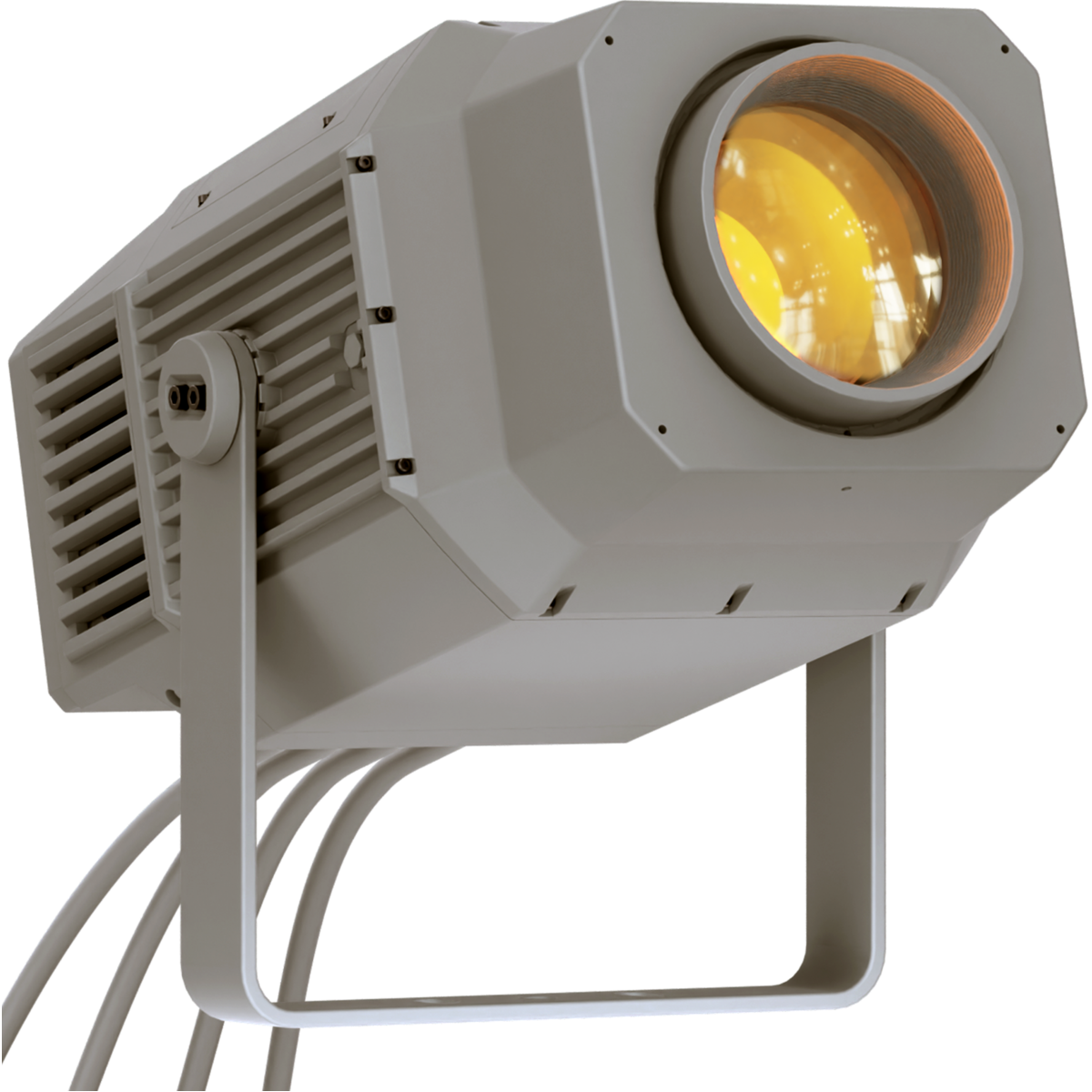

MOSAICOXLPLUS
outer: 26,9 mm - image: 20,5 mm
Size
28 / 30 / 35 / 44ch
DMX Channels
1,8 m moulded IP power IN/OUT connectors
Power Consumption
35,5kg
Weight
Experience the
MOSAICOXLPLUS
Light Show
| Source | 600W high-power white LED |
|---|---|
| Source CCT | 6.300K |
| Luminous flux | (6,8°) 17'404 lm - (52,1°) 23'570 lm @Full |
| Lux | (6,8°) 59'962 lx - (52,1°) 1'454lx @5 m full |
| Source life expectancy | > 20.000 h |
| Zoom range | 6,8° - 52,1° motorised linear zoom |
| Lens diameter | 135mm |
| Lens type | high-quality glass lens optics |
| Focus | motorised 8/16-bit |
| Colour mixing | linear CMY |
| CCT | linear CTO correction 3.000 K ~ 6.000 K |
| Colour wheel | open + 6 interchangeable colour filters |
| Shutter system | 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system |
| Animation wheel | animation wheel with CW and CCW rotation |
| Circular prism | 4-f with bi-directional rotation, indexing |
| Frost | dual soft-edge and heavy |
| Iris | 5 ~ 100% motorised iris |
| Rotating gobos | 7 rotating gobos + open, interchangeable, indexing |
| Gobo size (BW) | outer: 26,9 mm - image: 20,5 mm |
| Gobo size (Color) | outer: 26,9 mm - image: 20,5 mm |
| Supported Protocols | DMX512, RDM, CRMX + WDMX |
| DMX channels | 28 / 30 / 35 / 44ch |
| RDM | for remote addressing and parameter configuration |
| Display | black OLED touch display |
| Stand Alone | Stand Alone programmer and playback |
| Master/Slave | for synchronised operation of more units linked in a chain |
| Dimmer | linear 0 - 100% electronic dimmer |
| Dimmer curves | 4 selectable dimming modes available |
| Strobe / shutter | 1 - 30 Hz, electronic |
| Display battery | included, self-charging battery backup |
| Selectable PWM | 600 to 40000 Hz (selectable steps) |
| Firmware upgrade | via DMX with UPBOXPRO/UPBOX1 (not included) |
| Power connection | 1,8 m moulded IP power IN/OUT connectors |
| Signal connection | 1,8 m moulded IP signal IN/OUT connectors |
| Wireless Connection | integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible |
| Adaptors | XLR and BARE END 16A adaptors included |
| Mains power supply | 100-240V - 50/60Hz |
| Max power consumption (230V) | 680W |
| Output (at 230V) | 4 units on a single power line |
| Standby power | 58,7 W |
| Power factor | >0,96 |
| IP rating | IP66 for outdoor installations |
| IK rating | IK09 impact rating |
| Cooling | heat pipe with low-noise fan |
| Housing | Sturdy die-cast aluminium body, scratch-resistant C5M Marine Grade paint (as standard) |
| Finish | grey (RAL 9006) |
| Operating temperature | Ta -20 to +45 °C (-4 to +113 °F) |
| Dimensions (WxHxD) | 403x462x565mm |
| Weight | 35,5kg |
| Suspension and fixing | bracket for hanging and positioning |
| Hardware on-board | ancor points on the front for accessory mounting |
| Other | inspectable cover window for gobos replacement and maintenance and record scenes and create chases and shows throughout these scenes |
| Compliance | CE, RCM, FCC, cTUVus |
No downloads available yet.
Explore Similar
Products
Ready to Transform Your Space?
DELIVERY
For orders above AED 1,000
SECURE PAYMENT
Safe encrypted checkup
EXPERT SUPPORT
Pre and post sale support
Mosaico XL+ is an extremely powerful outdoor LED image projector for long-range projection of textures, images and logos onto buildings and landscapes. Built in a durable IP66 die-cast housing, the Mosaico XL+ offers a phenomenal output of 23'600 lumens and an extensive set of features including linear CMY+CTO colour mixing system and profile to precisely shape the projection area. The exceptional zoom ranges from 6° to 50° allowing this fixture to be installed at any distance making it versatile in both near-field and long-throw installations, awesome for static and animated facade building lighting.
Mosaico XL+ is an extremely powerful outdoor LED image projector for long-range projection of textures, images and logos onto buildings and landscapes. Built in a durable IP66 die-cast housing, the Mosaico XL+ offers a phenomenal output of 23'600 lumens and an extensive set of features including linear CMY+CTO colour mixing system and profile to precisely shape the projection area. The exceptional zoom ranges from 6° to 50° allowing this fixture to be installed at any distance making it versatile in both near-field and long-throw installations, awesome for static and animated facade building lighting.
Features:IP66 allowing long-lasting installation with minimal maintenance
Equipped with 6°- 50° linear zoom system to for both near and long throw installation
600W White LED engine with 6.300 K CT delivering 23'600 lumens output
Extensive feature set including CMY and linear CTO, shutter frame and animation wheel
LIGHT SOURCE
- Source:600Whigh-power white LED
- Source CCT:6.300K
- Luminous flux:(6,8°) 17'404 lm - (52,1°) 23'570 lm@Full
- Lux:(6,8°) 59'962 lx - (52,1°) 1'454lx@5 m full
- Source life expectancy:> 20.000 h
OPTICS
- Zoom range:6,8° - 52,1°motorised linear zoom
- Lens diameter:135mm
- Lens type:high-quality glass lens optics
- Focus:motorised 8/16-bit
COLOUR SYSTEM
- Colour mixing:linear CMY
- CCT:linear CTO correction 3.000 K ~ 6.000 K
- Colour wheel:open + 6interchangeable colour filters
DYNAMIC EFFECTS
- Shutter system:4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
- Animation wheel:animation wheel with CW and CCW rotation
- Circular prism:4-fwith bi-directional rotation, indexing
- Frost:dual soft-edge and heavy
- Iris:5 ~ 100%motorised iris
GOBOS
- Rotating gobos:7rotating gobos + open, interchangeable, indexing
- Gobo size (BW):outer: 26,9 mm - image: 20,5 mm
- Gobo size (Color):outer: 26,9 mm - image: 20,5 mm
CONTROL
- Supported Protocols:DMX512, RDM, CRMX + WDMX
- DMX channels:28 / 30 / 35 / 44ch
- RDM:for remote addressing and parameter configuration
- Display:black OLED touch display
- Stand Alone:Stand Alone programmer and playback
- Master/Slave:for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 30Hz, electronic
- Display battery:included, self-charging battery backup
- Selectable PWM:600 to 40000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
- Power connection:1,8 mmoulded IP power IN/OUT connectors
- Signal connection:1,8 mmoulded IP signal IN/OUT connectors
- Wireless Connection:integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
- Adaptors:XLR and BARE END 16A adaptors included
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):680W
- Output (at 230V):4units on a single power line
- Standby power:58,7 W
- Power factor:>0,96
PHYSICAL
- IP rating:IP66 for outdoor installations
- IK rating:IK09 impact rating
- Cooling:heat pipe with low-noise fan
- Housing:Sturdy die-cast aluminium body, scratch-resistant C5M Marine Grade paint (as standard)
- Finish:grey (RAL 9006)
- Operating temperature:Ta-20 to +45 °C (-4 to +113 °F)
- Dimensions (WxHxD):403x462x565mm
- Weight:35,5kg
INSTALLATION
- Suspension and fixing:bracket for hanging and positioning
- Hardware on-board:ancor points on the front for accessory mounting
- Other:inspectable cover window for gobos replacement and maintenance and record scenes and create chases and shows throughout these scenes
CERTIFICATIONS / REPORTS
- Compliance:CE, RCM, FCC, cTUVus
No reviews yet.
Browse Related Categories
More categories under Lighting
Mosaico XL+ is an extremely powerful outdoor LED image projector for long-range projection of textures, images and logos onto buildings and landscapes. Built in a durable IP66 die-cast housing, the Mosaico XL+ offers a phenomenal output of 23'600 lumens and an extensive set of features including linear CMY+CTO colour mixing system and profile to precisely shape the projection area. The exceptional zoom ranges from 6° to 50° allowing this fixture to be installed at any distance making it versatile in both near-field and long-throw installations, awesome for static and animated facade building lighting.
Key Features
- IP66 allowing long-lasting installation with minimal maintenance
- Equipped with 6°- 50° linear zoom system to for both near and long throw installation
- 600W White LED engine with 6.300 K CT delivering 23'600 lumens output
- Extensive feature set including CMY and linear CTO, shutter frame and animation wheel
