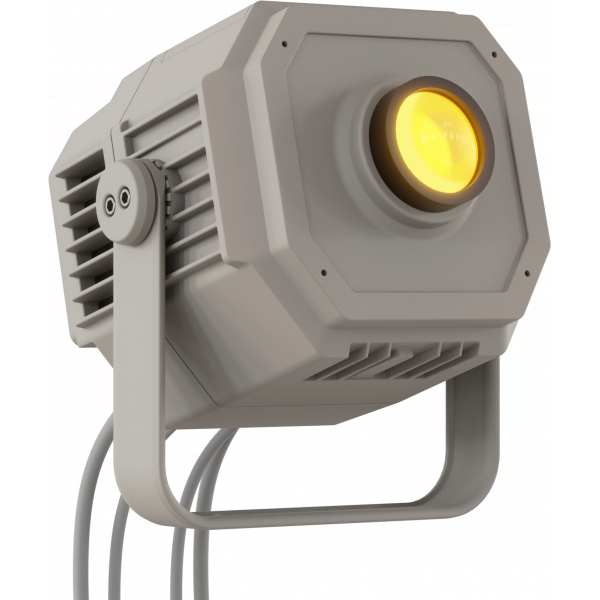

MOSAICOFX100FCGY
Image Projectors

MOSAICOFX100FCGY

outer: 26,9 mm - image: 22 mm Size
13ch DMX Channels
35 cm moulded IP power IN/OUT connectors Power Consumption
5,8kg Weight

Experience the
MOSAICOFX100FCGY
Light Show

Source 100W RGBW LED
Luminous flux (15°) 1'512 lm; (30° - WT) 1'487 lm; (30° - GB) 1'412 lm; (50° - WT) 1'572 lm; (50° GB) 1'094 lm; (70°) 1'092 @Full
Lux (15°) 829 lx; (30° - WT) 464 lx; (30° - GB) 195 lx; (50° - WT) 196 lx; (50° GB) 83 lx; (70°) 92lx @5 m full
Source life expectancy > 30.000 hrs (L70B10 @Ta 25° C / 77° F)
Optics interchangeable - see available accessories
Focus manual
Colour wheel available as accessory
Other included 1 static holder with magnetic positioning
Control Resolution 16-bit dimmer and color control
Static mode selection of static dimmer, colors and effects rotation mode
Other included 1 static gobo holder with manual indexing gear and magnetic assembly
Other 2 rotating wheels with magnetic mounting (structured glass included, color/gobo/animation and other wheels available as optional accessories)
Gobo size (BW) outer: 26,9 mm - image: 22 mm
Gobo size (Color) outer: 26,9 mm - image: 20,5 mm
Fixed gobos Fix gobo wheel available as accessory MFX100GW
Supported Protocols DMX512, RDM, CRMX + WDMX
DMX channels 13ch
RDM for remote addressing and parameter configuration
Display user interface through DATAMASTER external coder (not included)
Stand Alone 3 push encoder
Master/Slave for synchronised operation of more units linked in a chain
Dimmer linear 0 - 100%, electronic and manual knob dimmer
Dimmer curves selectable dimming modes available
Strobe / shutter 1-30 Hz, electronic
Selectable PWM 600 to 25000 Hz (selectable steps)
Firmware upgrade via DMX with UPBOXPRO/UPBOX2 (not included)
Power connection 35 cm moulded IP power IN/OUT connectors
Signal connection 35 cm moulded IP signal IN/OUT connectors
Wireless Connection integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
Adaptors XLR and BARE END 16A adaptors included
Mains power supply 100-240V - 50/60Hz
Max power consumption (230V) 120W
Output (at 230V) 16
Standby power 7W
Power factor >0.95
IP rating IP66 for outdoor installations
IK rating IK09 impact rating
Cooling forced-air with low-noise fan
Housing Weatherproof IP66 construction
Finish black (RAL 9004) or black (RAL 9006)
Operating temperature Ta -20 to +45 °C (-4 to +113 °F)
Dimensions (WxHxD) 224x261x221mm
Weight 5,8kg
Suspension and fixing bracket for hanging and positioning
Other Inspectable cover window for effects and gobo replacement and maintenance
Compliance CE, RCM, cTUVus

No downloads available yet.

MOSAICOFX100FCGY

Explore Similar
Products

Ready to Transform Your Space?

SKU: MOSAICOFX100FCGY
CATEGORY: Image Projectors
BRAND: Prolights
DELIVERY For orders above AED 1,000
WARRANTY 2 years
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

Mosaico FX100FC is an 100W RGBW Full Color LED IP66 image projector, engineered to be the modular platform to add building blocks to design your creative architectural lighting landscape.

Mosaico FX100FC is supplied with two controllable effect wheels on board made in structured glass material to animate your projection, with linear motion control for creating reflected water, blowing fire or northern lights effects. The kit contains also one indeaxable gobo holder and a colour holder both with magnetic attachment.

Mosaico FX100FC is compatible with a wide range of high definition optics, each optimized for the required application (animation or image projection): 15°, 30°, 50° and 70°.

This unit can be controlled via DMX, both wired and wireless and also easily operated locally through the simplified stand alone operations.



Please note that Mosaico FX100FC do not ship with a lens or other images or colors. Choose from the available lenses when ordering to meet your design requirements.



  • 100W RGBW LED Source Image and Effect light projector
  • 15°, 30°, 50° and 70° available optics (not included), Image or Effects optimized
  • DMX, CRMX Wireless and local stand alone control

    • Mosaico FX100FC is an 100W RGBW Full Color LED IP66 image projector, engineered to be the modular platform to add building blocks to design your creative architectural lighting landscape.

    Mosaico FX100FC is supplied with two controllable effect wheels on board made in structured glass material to animate your projection, with linear motion control for creating reflected water, blowing fire or northern lights effects. The kit contains also one indeaxable gobo holder and a colour holder both with magnetic attachment.

    Mosaico FX100FC is compatible with a wide range of high definition optics, each optimized for the required application (animation or image projection): 15°, 30°, 50° and 70°.

    This unit can be controlled via DMX, both wired and wireless and also easily operated locally through the simplified stand alone operations.



    Please note that Mosaico FX100FC do not ship with a lens or other images or colors. Choose from the available lenses when ordering to meet your design requirements.



    Features:
    100W RGBW LED Source Image and Effect light projector
    15°, 30°, 50° and 70° available optics (not included), Image or Effects optimized
    DMX, CRMX Wireless and local stand alone control

    LIGHT SOURCE
    • Source:
      100
      W
      RGBW LED
    • Luminous flux:
      (15°) 1'512 lm; (30° - WT) 1'487 lm; (30° - GB) 1'412 lm; (50° - WT) 1'572 lm; (50° GB) 1'094 lm; (70°) 1'092
      @Full
    • Lux:
      (15°) 829 lx; (30° - WT) 464 lx; (30° - GB) 195 lx; (50° - WT) 196 lx; (50° GB) 83 lx; (70°) 92
      lx
      @5 m full
    • Source life expectancy:
      > 30.000 hrs (L70B10 @Ta 25° C / 77° F)
    OPTICS
    • Optics:
      interchangeable -
      see available accessories
    • Focus:
      manual
    COLOUR SYSTEM
    • Colour wheel:
      available as accessory
    • Other:
      included 1 static holder with magnetic positioning
    DYNAMIC EFFECTS
    • Control Resolution:
      16-bit dimmer and color control
    • Static mode:
      selection of static dimmer, colors and effects rotation mode
    • Other:
      included 1 static gobo holder with manual indexing gear and magnetic assembly
    • Other:
      2 rotating wheels with magnetic mounting (structured glass included, color/gobo/animation and other wheels available as optional accessories)
    GOBOS
    • Gobo size (BW):
      outer: 26,9 mm - image: 22 mm
    • Gobo size (Color):
      outer: 26,9 mm - image: 20,5 mm
    • Fixed gobos:
      Fix gobo wheel available as accessory MFX100GW
    CONTROL
    • Supported Protocols:
      DMX512, RDM, CRMX + WDMX
    • DMX channels:
      13
      ch
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      user interface through DATAMASTER external coder (not included)
    • Stand Alone:
      3
      push encoder
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 - 100%, electronic and manual knob dimmer
    • Dimmer curves:
      selectable dimming modes available
    • Strobe / shutter:
      1-30
      Hz, electronic
    • Selectable PWM:
      600 to 25000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX2 (not included)
    CONNECTIONS
    • Power connection:
      35 cm
      moulded IP power IN/OUT connectors
    • Signal connection:
      35 cm
      moulded IP signal IN/OUT connectors
    • Wireless Connection:
      integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
    • Adaptors:
      XLR and BARE END 16A adaptors included
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      120
      W
    • Output (at 230V):
      16
    • Standby power:
      7W
    • Power factor:
      >0.95
    PHYSICAL
    • IP rating:
      IP66 for outdoor installations
    • IK rating:
      IK09 impact rating
    • Cooling:
      forced-air with low-noise fan
    • Housing:
      Weatherproof IP66 construction
    • Finish:
      black (RAL 9004) or black (RAL 9006)
    • Operating temperature:
      Ta
      -20 to +45 °C (-4 to +113 °F)
    • Dimensions (WxHxD):
      224x261x221
      mm
    • Weight:
      5,8
      kg
    INSTALLATION
    • Suspension and fixing:
      bracket for hanging and positioning
    • Other:
      Inspectable cover window for effects and gobo replacement and maintenance
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, RCM, cTUVus

    No reviews yet.

    Browse Related Categories

    More categories under Architectural

    Floods
    Linear
    Gallery Lights
    Pendant
    Accents
    Spots

    Image projector with dual animation wheel and 1 gobo/color slot, 100W RGBW LED source

    Mosaico FX100FC is an 100W RGBW Full Color LED IP66 image projector, engineered to be the modular platform to add building blocks to design your creative architectural lighting landscape. Mosaico FX100FC is supplied with two controllable effect wheels on board made in structured glass material to animate your projection, with linear motion control for creating reflected water, blowing fire or northern lights effects. The kit contains also one indeaxable gobo holder and a colour holder both with magnetic attachment. Mosaico FX100FC is compatible with a wide range of high definition optics, each optimized for the required application (animation or image projection): 15°, 30°, 50° and 70°. This unit can be controlled via DMX, both wired and wireless and also easily operated locally through the simplified stand alone operations. Please note that Mosaico FX100FC do not ship with a lens or other images or colors. Choose from the available lenses when ordering to meet your design requirements.

    Main features:

    • 100W RGBW LED Source Image and Effect light projector
    • 15°, 30°, 50° and 70° available optics (not included), Image or Effects optimized
    • DMX, CRMX Wireless and local stand alone control
