Image Projectors

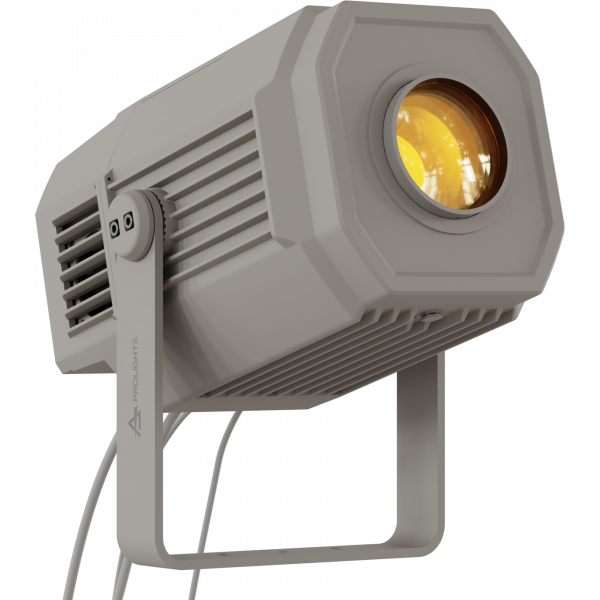

MOSAICO
outer: 26,9 mm - image: 23 mm
Size
12 / 14 / 16 / 19ch
DMX Channels
1,8 m moulded IP power IN/OUT connectors
Power Consumption
19,3kg
Weight
Experience the
MOSAICO
Light Show
| Source | 250W high-power white LED |
|---|---|
| Source CCT | 8.500K |
| Luminous flux | (12.9°) 10'740 lm - (46.5°) 11'667 @Full |
| Lux | (12.9°) 10'512 lx - (46.5°) 1'409lx @5 m full |
| Source life expectancy | > 30.000 hrs (L70B10 @Ta 25° C / 77° F) |
| Zoom range | 12,9° - 46,5° motorised linear zoom |
| Lens diameter | 109mm |
| Lens type | high-quality glass lens optics |
| Focus | motorised 8/16-bit |
| Colour wheel | 14 colour filters on two colour wheels |
| Animation wheel | animation wheel with CW and CCW rotation |
| Circular prism | 3-f with bi-directional rotation, indexing |
| Frost | linear 0-100% |
| Iris | 5 - 100% motorised iris |
| Special features | interchangeable animation wheel through magnets and record scenes and create chases and shows throughout these scenes |
| Rotating gobos | 7 rotating gobos + open, interchangeable, indexing |
| Gobo size (BW) | outer: 26,9 mm - image: 23 mm |
| Gobo size (Color) | outer: 26,9 mm - image: 20,5 mm |
| Supported Protocols | DMX512, RDM, CRMX + WDMX |
| DMX channels | 12 / 14 / 16 / 19ch |
| RDM | for remote addressing and parameter configuration |
| Display | black OLED touch display |
| Stand Alone | Stand Alone programmer and playback |
| Dimmer | linear 0 - 100% electronic dimmer |
| Dimmer curves | 4 selectable dimming modes available |
| Strobe / shutter | 1~30 Hz, electronic |
| Firmware upgrade | via DMX with UPBOXPRO/UPBOX1 (not included) |
| Power connection | 1,8 m moulded IP power IN/OUT connectors |
| Signal connection | 1,8 m moulded IP signal IN/OUT connectors |
| Wireless Connection | integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible |
| Data connection | W-DMX transreceiver |
| Adaptors | XLR and BARE END 16A adaptors included |
| Mains power supply | 100-240V - 50/60Hz |
| Max power consumption (230V) | 320W |
| Output (at 230V) | 6 units on a single power line |
| Standby power | 56 W |
| Power factor | >0,95 |
| IP rating | IP66 for outdoor installations |
| IK rating | IK09 impact rating |
| Cooling | forced-air with IP-rated low-noise fan |
| Housing | Die-cast aluminium |
| Finish | grey (RAL 9006), also available with C5-M marine grade coating |
| Operating temperature | Ta -20 to +45 °C (-4 to +113 °F) |
| Dimensions (WxHxD) | 332x425x453mm |
| Weight | 19,3kg |
| Suspension and fixing | bracket for hanging and positioning |
| Other | Inspectable cover window for gobos replacement and maintenance |
| Compliance | CE, UKCA, RCM, cTUVus, FCC |
No downloads available yet.
Explore Similar
Products
Ready to Transform Your Space?
DELIVERY
For orders above AED 1,000
WARRANTY
2 years
SECURE PAYMENT
Safe encrypted checkup
EXPERT SUPPORT
Pre and post sale support
Mosaico is a powerful exterior LED image projector for projection of textures, images and logos onto buildings and landscapes. The outstanding 11'667 lumens output allows for replacement of the 1.200 HID fixture with this far more durable and advanced tool. The complete set of on board effects allow for extreme creative integration in any context and the zoomable optics makes it a truly versatile fixture for both near-field and long-throw installations.
Mosaico is a powerful exterior LED image projector for projection of textures, images and logos onto buildings and landscapes. The outstanding 11'667 lumens output allows for replacement of the 1.200 HID fixture with this far more durable and advanced tool. The complete set of on board effects allow for extreme creative integration in any context and the zoomable optics makes it a truly versatile fixture for both near-field and long-throw installations.
Features:IP66 allowing long-lasting installation with minimal maintenance
Beam angle zooming from 12.9° to 46.5° allows for flexible use and opens up a new level of effects
Extremely bright with over 11'667 lumens, crisp focus and with 5 layers of effects allowing for limitless combinations
LIGHT SOURCE
- Source:250Whigh-power white LED
- Source CCT:8.500K
- Luminous flux:(12.9°) 10'740 lm - (46.5°) 11'667@Full
- Lux:(12.9°) 10'512 lx - (46.5°) 1'409lx@5 m full
- Source life expectancy:> 30.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
- Zoom range:12,9° - 46,5°motorised linear zoom
- Lens diameter:109mm
- Lens type:high-quality glass lens optics
- Focus:motorised 8/16-bit
COLOUR SYSTEM
- Colour wheel:14colour filters on two colour wheels
DYNAMIC EFFECTS
- Animation wheel:animation wheel with CW and CCW rotation
- Circular prism:3-fwith bi-directional rotation, indexing
- Frost:linear 0-100%
- Iris:5 - 100%motorised iris
- Special features:interchangeable animation wheel through magnets and record scenes and create chases and shows throughout these scenes
GOBOS
- Rotating gobos:7rotating gobos + open, interchangeable, indexing
- Gobo size (BW):outer: 26,9 mm - image: 23 mm
- Gobo size (Color):outer: 26,9 mm - image: 20,5 mm
CONTROL
- Supported Protocols:DMX512, RDM, CRMX + WDMX
- DMX channels:12 / 14 / 16 / 19ch
- RDM:for remote addressing and parameter configuration
- Display:black OLED touch display
- Stand Alone:Stand Alone programmer and playback
ELECTRONICS
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1~30Hz, electronic
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
- Power connection:1,8 mmoulded IP power IN/OUT connectors
- Signal connection:1,8 mmoulded IP signal IN/OUT connectors
- Wireless Connection:integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
- Data connection:W-DMX transreceiver
- Adaptors:XLR and BARE END 16A adaptors included
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):320W
- Output (at 230V):6units on a single power line
- Standby power:56 W
- Power factor:>0,95
PHYSICAL
- IP rating:IP66 for outdoor installations
- IK rating:IK09 impact rating
- Cooling:forced-air with IP-rated low-noise fan
- Housing:Die-cast aluminium
- Finish:grey (RAL 9006), also available with C5-M marine grade coating
- Operating temperature:Ta-20 to +45 °C (-4 to +113 °F)
- Dimensions (WxHxD):332x425x453mm
- Weight:19,3kg
INSTALLATION
- Suspension and fixing:bracket for hanging and positioning
- Other:Inspectable cover window for gobos replacement and maintenance
CERTIFICATIONS / REPORTS
- Compliance:CE, UKCA, RCM, cTUVus, FCC
No reviews yet.
250W IP66 zoomable LED image projector with animation wheel
Mosaico is a powerful exterior LED image projector for projection of textures, images and logos onto buildings and landscapes. The outstanding 11'667 lumens output allows for replacement of the 1.200 HID fixture with this far more durable and advanced tool. The complete set of on board effects allow for extreme creative integration in any context and the zoomable optics makes it a truly versatile fixture for both near-field and long-throw installations.
Main features:
- IP66 allowing long-lasting installation with minimal maintenance
- Beam angle zooming from 12.9° to 46.5° allows for flexible use and opens up a new level of effects
- Extremely bright with over 11'667 lumens, crisp focus and with 5 layers of effects allowing for limitless combinations
