MINIVERSAPAR
Indoor-Fixtures

MINIVERSAPAR

235xx301x223mm Size
5 / 7 / 10ch DMX Channels
Seetronic powerCON IN/OUT connectors Power Consumption
4kg Weight

Experience the
MINIVERSAPAR
Light Show

Wide zoom range from 10° - 40° (1 4 zoom)
Source 7x10W RGBW LEDs
Luminous flux (10°) 1'012 lm - (40°) 1'335
Lux (10°) 4'415 lx - (40°) 378lx @3 m
Source life expectancy > 50.000 h
Zoom range 10° - 40° motorised linear zoom
Lens type honeycomb gapless plano-convex optics
Colour mixing RGBW / FC
White presets 2.800 K - 10.000K
Colour wheel virtual colour wheel with macros
Macros several pre-built pixel macros with adjustable speed
Static mode selection of static colour
Manual mode manual adjustment of colour
Auto mode built-in programs with execution speed adjustment
Sound mode music activation through internal microphone and sensitivity control
Supported Protocols DMX512
DMX channels 5 / 7 / 10ch
Display 4 chars display
Master/Slave for synchronised operation of more units linked in a chain
Dimmer linear 0 - 100% electronic dimmer
Dimmer curves selectable dimming modes available
Strobe / shutter 1 / 28 Hz, electronic
Firmware upgrade via DMX with UPBOXPRO/UPBOX1 (not included)
Power connection Seetronic powerCON IN/OUT connectors
Signal connection XLR 3p + 5p IN/OUT connectors
Wireless Connection optional WIBOX, WDBOX proprietary protocol
Data USB port for USB WIFI transmitter (optional)
Mains power supply 100-240V - 50/60Hz
Max power consumption (230V) 69,2W
Output (at 230V) 20 units on a single power line
Max power consumption (120V) 70W
Output (at 120V) 11 units on a single power line
IP rating IP30
Cooling forced-air with low-noise fan
Housing Sturdy die-cast aluminium body
Finish black
Operating temperature Ta -10 to +40 °C (+14 to +104 °F)
Dimensions (WxHxD) 235xx301x223mm
Weight 4kg
Compliance CE, UKCA, RCM

No downloads available yet.

MINIVERSAPAR

Explore Similar
Products

Ready to Transform Your Space?

SKU: MINIVERSAPAR
CATEGORY: Indoor-Fixtures
BRAND: Prolights
DELIVERY For orders above AED 1,000
WARRANTY 2 years
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

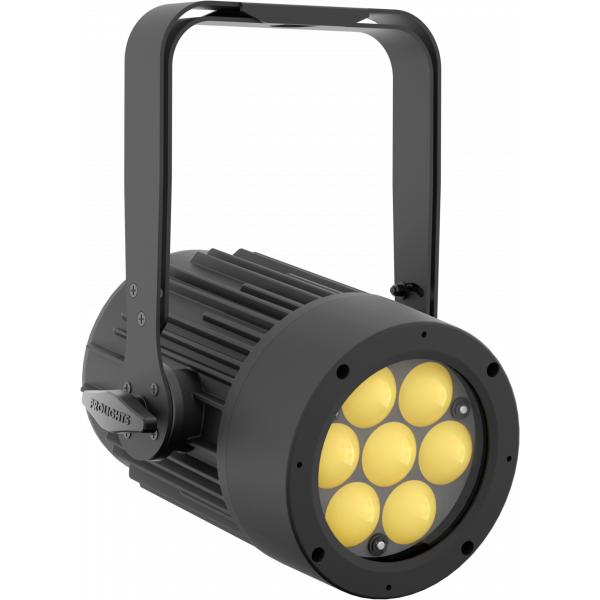

Mini VersaPar is a compact indoor LED zoom PAR designed for rental companies. The multi-purpose concept combining high brightness, wide zoom range and advanced colour mixing truly makes this a unique fixture. Mini VersaPar is equipped with 10° - 40° unrivalled zoom range, high efficiency, perfect chromatic uniformity, HDL dimming technology and totally silent operation.

  • 7x10W RGBW/FC LED
  • Wide zoom range from 10° - 40° (1:4 zoom)
  • Silent operation for studio application

    • Mini VersaPar is a compact indoor LED zoom PAR designed for rental companies. The multi-purpose concept combining high brightness, wide zoom range and advanced colour mixing truly makes this a unique fixture. Mini VersaPar is equipped with 10° - 40° unrivalled zoom range, high efficiency, perfect chromatic uniformity, HDL dimming technology and totally silent operation.

    Features:
    7x10W RGBW/FC LED
    Wide zoom range from 10° - 40° (1:4 zoom)
    Silent operation for studio application

    LIGHT SOURCE
    • Source:
      7x10
      W
      RGBW LEDs
    • Luminous flux:
      (10°) 1'012 lm - (40°) 1'335
    • Lux:
      (10°) 4'415 lx - (40°) 378
      lx
      @3 m
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Zoom range:
      10° - 40
      °
      motorised linear zoom
    • Lens type:
      honeycomb gapless plano-convex optics
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • White presets:
      2.800 K - 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      several pre-built pixel macros with adjustable speed
    DYNAMIC EFFECTS
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    • Sound mode:
      music activation through internal microphone and sensitivity control
    CONTROL
    • Supported Protocols:
      DMX512
    • DMX channels:
      5 / 7 / 10
      ch
    • Display:
      4 chars display
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Dimmer curves:
      selectable dimming modes available
    • Strobe / shutter:
      1 / 28
      Hz, electronic
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX1 (not included)
    CONNECTIONS
    • Power connection:
      Seetronic powerCON IN/OUT connectors
    • Signal connection:
      XLR 3p + 5p IN/OUT connectors
    • Wireless Connection:
      optional WIBOX, WDBOX proprietary protocol
    • Data:
      USB port for USB WIFI transmitter (optional)
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      69,2
      W
    • Output (at 230V):
      20
      units on a single power line
    • Max power consumption (120V):
      70
      W
    • Output (at 120V):
      11
      units on a single power line
    PHYSICAL
    • IP rating:
      IP30
    • Cooling:
      forced-air with low-noise fan
    • Housing:
      Sturdy die-cast aluminium body
    • Finish:
      black
    • Operating temperature:
      Ta
      -10 to +40 °C (+14 to +104 °F)
    • Dimensions (WxHxD):
      235xx301x223
      mm
    • Weight:
      4
      kg
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA, RCM

    No reviews yet.

    Browse Related Categories

    More categories under Stage-Lighting

    Outdoor Fixtures
    Battery-Operated
    Strobes, Pixels and Blinders
    Indoor-Moving-Lights

    7x10W RGBW compact zoom PAR

    Mini VersaPar is a compact indoor LED zoom PAR designed for rental companies. The multi-purpose concept combining high brightness, wide zoom range and advanced colour mixing truly makes this a unique fixture. Mini VersaPar is equipped with 10° - 40° unrivalled zoom range, high efficiency, perfect chromatic uniformity, HD dimming technology and totally silent operation.

    Main features:

    • 7x10W RGBW/FC LED
    • Wide zoom range from 10° - 40° (1:4 zoom)
    • Silent operation for studio application
