Indoor-Fixtures
LUMIPIX16H
1.000x180x63mm
Size
6 / 8 / 12 / 96 / 101ch
DMX Channels
Neutrik powerCON IN/OUT connectors
Power Consumption
5,1kg
Weight
Experience the
LUMIPIX16H
Light Show
| Source | 16x12W RGBWAP LEDs |
|---|---|
| Luminous flux | 4'159 |
| Lux | (22°) 2'692lx @3 m full |
| Lux | (25°) 1'907lx @3 m full |
| Source life expectancy | > 50.000 h |
| Beam angle | 22° |
| Field angle | 37° |
| Lens diameter | 42mm |
| Additional optics | 25° and 45° (optional) |
| Colour mixing | RGBWAP / FC |
| White presets | 3.200 K -10.000K |
| Colour wheel | virtual colour wheel with macros |
| Macros | several pre-built pixel macros with adjustable speed |
| Static mode | selection of static colour |
| Manual mode | manual adjustment of colour |
| Auto mode | built-in programs with execution speed adjustment |
| Supported Protocols | DMX512 |
| DMX channels | 6 / 8 / 12 / 96 / 101ch |
| Pixel control | pixel2pixel control |
| Display | LCD display |
| Master/Slave | for synchronised operation of more units linked in a chain |
| Dimmer | linear 0 - 100% electronic dimmer |
| Dimmer curves | 4 selectable dimming modes available |
| Strobe / shutter | 1-25 Hz, electronic |
| Firmware upgrade | via DMX with UPBOXPRO/UPBOX1 (not included) |
| Power connection | Neutrik powerCON IN/OUT connectors |
| Signal connection | XLR 3p + 5p IN/OUT connectors |
| Mains power supply | 100-240V - 50/60Hz |
| Max power consumption (230V) | 160W |
| Output (at 230V) | 12 units on a single power line |
| Max power consumption (120V) | 165W |
| Power factor | pF 0,95 @120 V - pF 0,90 @230 V |
| IP rating | IP33 |
| Cooling | fan-free with natural convection |
| Housing | Sturdy aluminium profile |
| Finish | black |
| Operating temperature | Ta -10 to +45 °C (+14 to +113 °F) |
| Dimensions (WxHxD) | 1.000x180x63mm |
| Weight | 5,1kg |
| Suspension and fixing | bracket for hanging and positioning |
| Compliance | CE, UKCA, RCM |
No downloads available yet.
Explore Similar
Products
Ready to Transform Your Space?
DELIVERY
For orders above AED 1,000
WARRANTY
2 years
SECURE PAYMENT
Safe encrypted checkup
EXPERT SUPPORT
Pre and post sale support

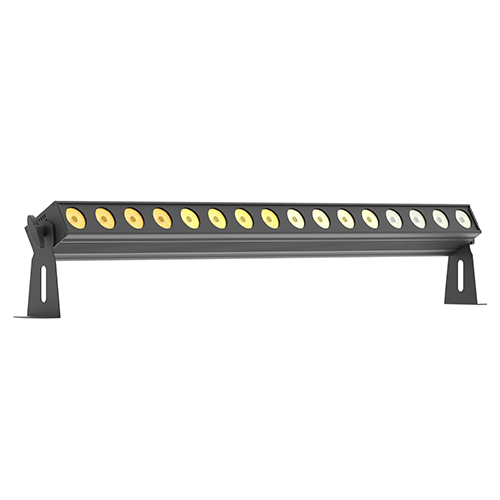

LumiPix 16H is a 100 cm linear LED batten. Designed for professional use utilising an innovative optical system combined with a new light source that performs: 6 primary colours - RGBWAP full colour - granting unprecedented chromatic performance. The super-slim design combined with its extreme colour precision and light output, make LumiPix 16H a flexible and versatile solution for every type of application or for use in venues, as the architectural, cyclorama, wall-washer, pixel effect or blinder.
LumiPix 16H is a 100 cm linear LED batten. Designed for professional use utilising an innovative optical system combined with a new light source that performs: 6 primary colours - RGBWAP full colour - granting unprecedented chromatic performance. The super-slim design combined with its extreme colour precision and light output, make LumiPix 16H a flexible and versatile solution for every type of application or for use in venues, as the architectural, cyclorama, wall-washer, pixel effect or blinder.
Features:LED batten with 16 individually controllable RGBAW + UV LEDs
Extensive colour palette and powerful output
Flicker-free operation for IMAG and broadcast
LIGHT SOURCE
- Source:16x12WRGBWAP LEDs
- Luminous flux:4'159
- Lux:(22°) 2'692lx@3 m full
- Lux:(25°) 1'907lx@3 m full
- Source life expectancy:> 50.000 h
OPTICS
- Beam angle:22°
- Field angle:37°
- Lens diameter:42mm
- Additional optics:25° and 45° (optional)
COLOUR SYSTEM
- Colour mixing:RGBWAP / FC
- White presets:3.200 K -10.000K
- Colour wheel:virtual colour wheel with macros
- Macros:several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
- Static mode:selection of static colour
- Manual mode:manual adjustment of colour
- Auto mode:built-in programs with execution speed adjustment
CONTROL
- Supported Protocols:DMX512
- DMX channels:6 / 8 / 12 / 96 / 101ch
- Pixel control:pixel2pixel control
- Display:LCD display
- Master/Slave:for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1-25Hz, electronic
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
- Power connection:Neutrik powerCON IN/OUT connectors
- Signal connection:XLR 3p + 5p IN/OUT connectors
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):160W
- Output (at 230V):12units on a single power line
- Max power consumption (120V):165W
- Power factor:pF 0,95 @120 V - pF 0,90 @230 V
PHYSICAL
- IP rating:IP33
- Cooling:fan-free with natural convection
- Housing:Sturdy aluminium profile
- Finish:black
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):1.000x180x63mm
- Weight:5,1kg
INSTALLATION
- Suspension and fixing:bracket for hanging and positioning
CERTIFICATIONS / REPORTS
- Compliance:CE, UKCA, RCM
No reviews yet.
16x12 W high power LED pixel batten with RGBWA + UV mixing
LumiPix 16H is a 100 cm linear LED batten. Designed for professional use utilising an innovative optical system combined with a new light source that performs: 6 primary colours - RGBWAP full colour - granting unprecedented chromatic performance. The super-slim design combined with its extreme colour precision and light output, make LumiPix 16H a flexible and versatile solution for every type of application or for use in venues, as the architectural, cyclorama, wall-washer, pixel effect or blinder.
Main features:
- LED batten with 16 individually controllable RGBAW + UV LEDs
- Extensive colour palette and powerful output
- Flicker-free operation for IMAG and broadcast
