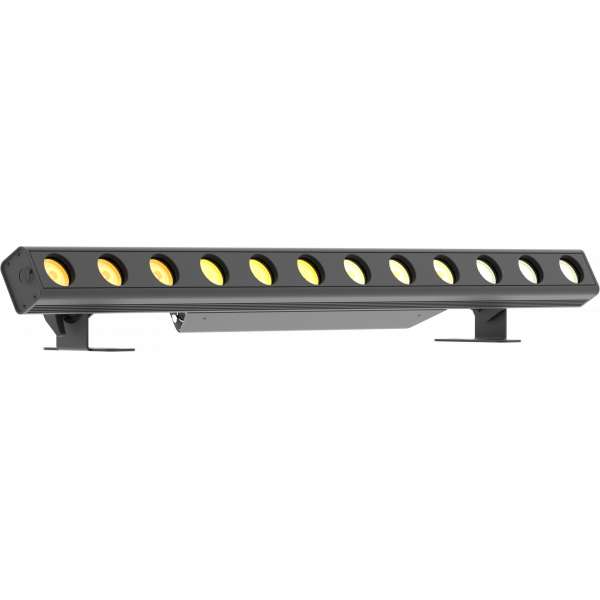

Strobes, Pixels and Blinders
LUMIPIX12QTOUR
994x138x70mm
Size
5 / 7 / 9 / 49ch
DMX Channels
Seetronic powerCON IN/OUT connectors
Power Consumption
5,4kg
Weight
Experience the
LUMIPIX12QTOUR
Light Show
| Source | 12x10W RGBW LEDs |
|---|---|
| Luminous flux | (15°) 3'657 lm - (45°) 3'630 @Full |
| Lux | (15°) 2'901lx @5 m full |
| Lux | (45°) 325lx @5 m full |
| Source life expectancy | > 50.000 h |
| Beam angle | 22,6° |
| Field angle | 39° |
| Lens diameter | 45mm |
| Additional optics | 15° (opt) - 45° (opt) |
| Other | on board magnetic frost holder |
| Colour mixing | RGBW / FC |
| Colour wheel | virtual colour wheel with macros |
| Macros | several pre-built pixel macros with adjustable speed |
| Pixel patterns | pre-programmed static and dynamic patterns |
| Static mode | selection of static colour |
| Manual mode | manual adjustment of colour |
| Auto mode | built-in programs with execution speed adjustment |
| Supported Protocols | DMX512 |
| DMX channels | 5 / 7 / 9 / 49ch |
| Pixel control | pixel2pixel control |
| Display | Graphic User Interface |
| Master/Slave | for synchronised operation of more units linked in a chain |
| Dimmer | linear 0 - 100% electronic dimmer |
| Dimmer curves | 7 selectable dimming modes available |
| Strobe / shutter | 1 - 30 Hz, electronic |
| Firmware upgrade | via DMX with UPBOXPRO/UPBOX1 (not included) |
| Power connection | Seetronic powerCON IN/OUT connectors |
| Signal connection | Amphenol XLR 5p IN/OUT connectors |
| Mains power supply | 100-240V - 50/60Hz |
| Max power consumption (230V) | 100W |
| Output (at 230V) | 30 units on a single power line |
| Max power consumption (120V) | 105W |
| Output (at 120V) | 14 units on a single power line |
| Power factor | 0,94 |
| IP rating | IP30 |
| Cooling | fan-free with natural convection |
| Housing | Sturdy die-cast aluminium body |
| Finish | black |
| Operating temperature | Ta -10 to +45 °C (+14 to +113 °F) |
| Dimensions (WxHxD) | 994x138x70mm |
| Weight | 5,4kg |
| Suspension and fixing | double hanging bracket suitable for safe hanging and for floor positioning |
| Hardware on-board | sockets for quick-Lock Omega bracket (clamp not included) |
| Compliance | CE, UKCA, RCM |
No downloads available yet.
Explore Similar
Products
Ready to Transform Your Space?
DELIVERY
For orders above AED 1,000
WARRANTY
2 years
SECURE PAYMENT
Safe encrypted checkup
EXPERT SUPPORT
Pre and post sale support
LumiPix 12QTour is a 100 cm linear LED batten designed for professional use granting unprecedented chromatic performance. The super-slim design combined with its extreme colour precision and light output make LumiPix 12QTour a highly flexible and versatile solution for any kind of application or venue such as architectural, cyclorama, wall-washer, pixel effect or blinder.
LumiPix 12QTour is a 100 cm linear LED batten designed for professional use granting unprecedented chromatic performance. The super-slim design combined with its extreme colour precision and light output make LumiPix 12QTour a highly flexible and versatile solution for any kind of application or venue such as architectural, cyclorama, wall-washer, pixel effect or blinder.
Features:12x10W RGBW/FC high-power LED
Pixel control of every individual LED
PowerCON IN/OUT and XLR 5p IN/OUT
LIGHT SOURCE
- Source:12x10WRGBW LEDs
- Luminous flux:(15°) 3'657 lm - (45°) 3'630@Full
- Lux:(15°) 2'901lx@5 m full
- Lux:(45°) 325lx@5 m full
- Source life expectancy:> 50.000 h
OPTICS
- Beam angle:22,6°
- Field angle:39°
- Lens diameter:45mm
- Additional optics:15° (opt) - 45° (opt)
- Other:on board magnetic frost holder
COLOUR SYSTEM
- Colour mixing:RGBW / FC
- Colour wheel:virtual colour wheel with macros
- Macros:several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
- Pixel patterns:pre-programmed static and dynamic patterns
- Static mode:selection of static colour
- Manual mode:manual adjustment of colour
- Auto mode:built-in programs with execution speed adjustment
CONTROL
- Supported Protocols:DMX512
- DMX channels:5 / 7 / 9 / 49ch
- Pixel control:pixel2pixel control
- Display:Graphic User Interface
- Master/Slave:for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:7selectable dimming modes available
- Strobe / shutter:1 - 30Hz, electronic
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
- Power connection:Seetronic powerCON IN/OUT connectors
- Signal connection:Amphenol XLR 5p IN/OUT connectors
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):100W
- Output (at 230V):30units on a single power line
- Max power consumption (120V):105W
- Output (at 120V):14units on a single power line
- Power factor:0,94
PHYSICAL
- IP rating:IP30
- Cooling:fan-free with natural convection
- Housing:Sturdy die-cast aluminium body
- Finish:black
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):994x138x70mm
- Weight:5,4kg
INSTALLATION
- Suspension and fixing:double hanging bracket suitable for safe hanging and for floor positioning
- Hardware on-board:sockets for quick-Lock Omega bracket (clamp not included)
CERTIFICATIONS / REPORTS
- Compliance:CE, UKCA, RCM
No reviews yet.
12x10W RGBW/FC indoor LED batten
LumiPix 12QTour is a 100 cm linear LED batten designed for professional use granting unprecedented chromatic performance. The super-slim design combined with its extreme colour precision and light output make LumiPix 12QTour a highly flexible and versatile solution for any kind of application or venue such as architectural, cyclorama, wall-washer, pixel effect or blinder.
Main features:
- 12x10W RGBW/FC high-power LED
- Pixel control of every individual LED
- PowerCON IN/OUT and XLR 5p IN/OUT
