LUMIPAR7IP20D
Outdoor Fixtures

LUMIPAR7IP20D

240x286x154mm Size
4 / 6 / 11ch DMX Channels
Seetronic powerCON TRUE IP65 IN/OUT Power Consumption
3,64kg Weight

Experience the
LUMIPAR7IP20D
Light Show

Source 7x9W RGBW LEDs
Luminous flux (20°) 2'945 lm - (45°) 3'835
Lux (20°) 1'923lx @3 m full
Lux (45°) 654lx @3 m full
Source life expectancy > 50.000 h
Beam angle available in 20° or 45°
Field angle 36° or 60°
Colour mixing RGBW / FC
White presets 3.000 K ~ 10.000K
Colour wheel virtual colour wheel with macros
Macros built-in white presets
Static mode selection of static colour
Manual mode manual adjustment of colour
Auto mode built-in programs with execution speed adjustment
Supported Protocols DMX512
DMX channels 4 / 6 / 11ch
Display black OLED touch display
Master/Slave for synchronised operation of more units linked in a chain
Dimmer linear 0 - 100% electronic dimmer
Dimmer curves 4 selectable dimming modes available
Strobe / shutter 0 - 30 Hz, electronic
Selectable PWM 600 to 25000 Hz (selectable steps)
Firmware upgrade via DMX with UPBOXPRO/UPBOX1 (not included)
Power connection Seetronic powerCON TRUE IP65 IN/OUT
Signal connection Seetronic XLR 5p IN/OUT connectors
Mains power supply 100-240V - 50/60Hz
Max power consumption (230V) 65W
Output (at 230V) 32 units on a single power line
Max power consumption (120V) 64W
IP rating IP65 for temporary outdoor use
Cooling fan-free with natural convection
Housing Sturdy die-cast aluminium body
Finish black
Operating temperature Ta -20 to +45 °C (-4 to +113 °F)
Dimensions (WxHxD) 240x286x154mm
Weight 3,64kg
Suspension and fixing double hanging bracket suitable for safe hanging and for floor positioning
Compliance CE, UKCA, RCM

No downloads available yet.

LUMIPAR7IP20D

Explore Similar
Products

Ready to Transform Your Space?

SKU: LUMIPAR7IP20D
CATEGORY: Outdoor Fixtures
BRAND: Prolights
DELIVERY For orders above AED 1,000
WARRANTY 2 years
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

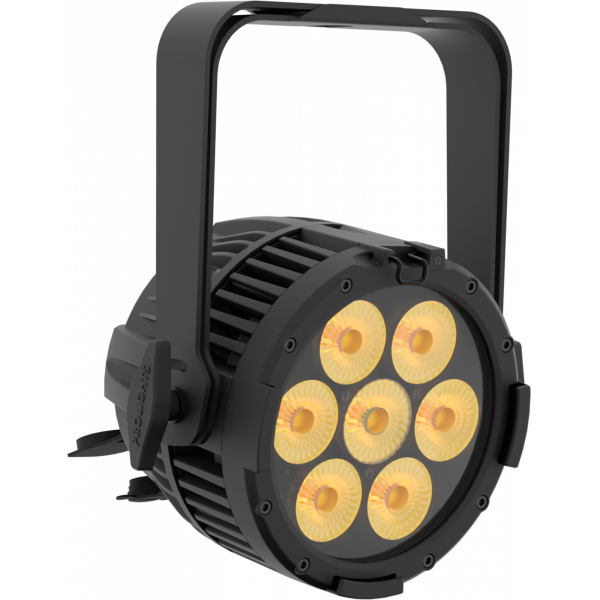

LumiPar 7IP is a compact and flexible IP LED PAR made for small concerts and theatres, and to perform as architectural accent luminaire for outdoor events. The housing in die-cast aluminium is designed to feature both as a robust workhorse and totally fanless being totally silent during its operation.

  • IP65 die-cast aluminium housing
  • 7x9W RGBW LED PAR
  • Fanless and flicker-free operation for IMAG and broadcast
  • Filter frame included

    • LumiPar 7IP is a compact and flexible IP LED PAR made for small concerts and theatres, and to perform as architectural accent luminaire for outdoor events. The housing in die-cast aluminium is designed to feature both as a robust workhorse and totally fanless being totally silent during its operation.

    Features:
    IP65 die-cast aluminium housing
    7x9W RGBW LED PAR
    Fanless and flicker-free operation for IMAG and broadcast
    Filter frame included

    LIGHT SOURCE
    • Source:
      7x9
      W
      RGBW LEDs
    • Luminous flux:
      (20°) 2'945 lm - (45°) 3'835
    • Lux:
      (20°) 1'923
      lx
      @3 m full
    • Lux:
      (45°) 654
      lx
      @3 m full
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      available in 20° or 45
      °
    • Field angle:
      36° or 60
      °
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • White presets:
      3.000 K ~ 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      built-in white presets
    DYNAMIC EFFECTS
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    CONTROL
    • Supported Protocols:
      DMX512
    • DMX channels:
      4 / 6 / 11
      ch
    • Display:
      black OLED touch display
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      0 - 30
      Hz, electronic
    • Selectable PWM:
      600 to 25000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX1 (not included)
    CONNECTIONS
    • Power connection:
      Seetronic powerCON TRUE IP65 IN/OUT
    • Signal connection:
      Seetronic XLR 5p IN/OUT connectors
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      65
      W
    • Output (at 230V):
      32
      units on a single power line
    • Max power consumption (120V):
      64
      W
    PHYSICAL
    • IP rating:
      IP65 for temporary outdoor use
    • Cooling:
      fan-free with natural convection
    • Housing:
      Sturdy die-cast aluminium body
    • Finish:
      black
    • Operating temperature:
      Ta
      -20 to +45 °C (-4 to +113 °F)
    • Dimensions (WxHxD):
      240x286x154
      mm
    • Weight:
      3,64
      kg
    INSTALLATION
    • Suspension and fixing:
      double hanging bracket suitable for safe hanging and for floor positioning
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA, RCM

    No reviews yet.

    Browse Related Categories

    More categories under Stage-Lighting

    Indoor-Fixtures
    Battery-Operated
    Strobes, Pixels and Blinders
    Indoor-Moving-Lights

    7x9W RGBW compact IP65 LED PAR

    LumiPar 7IP is a compact and flexible IP LED PAR made for small concerts and theatres, and to perform as architectural accent luminaire for outdoor events. The housing in die-cast aluminium is designed to feature both as a robust workhorse and totally fanless being totally silent during its operation.

    Main features:

    • IP65 die-cast aluminium housing
    • 7x9W RGBW LED PAR
    • Fanless and flicker-free operation for IMAG and broadcast
    • Filter frame included
