Outdoor Fixtures

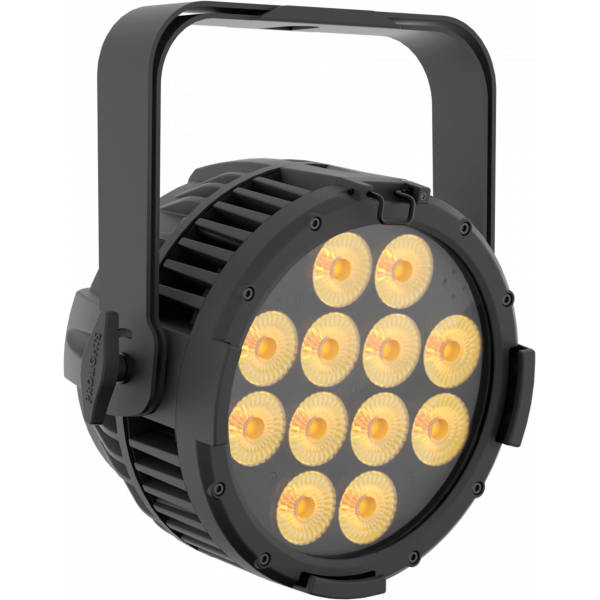

LUMIPAR12IP20D
305x326x177mm
Size
4 / 6 / 11ch
DMX Channels
Seetronic powerCON TRUE IP65 IN/OUT
Power Consumption
6,2kg
Weight
Experience the
LUMIPAR12IP20D
Light Show
| Source | 12x9W RGBW LEDs |
|---|---|
| Luminous flux | (25°) 3'900 lm - (45°) 6'700 |
| Lux | (25°) 2'535lx @3 m full |
| Lux | (45°) 1'154lx @3 m full |
| Source life expectancy | > 50.000 h |
| Beam angle | available in 25° or 45° |
| Field angle | 36° or 60° |
| Colour mixing | RGBW / FC |
| White presets | 3.000 K ~ 10.000K |
| Colour wheel | virtual colour wheel with macros |
| Macros | built-in white presets |
| Static mode | selection of static colour |
| Manual mode | manual adjustment of colour |
| Auto mode | built-in programs with execution speed adjustment |
| Supported Protocols | DMX512 |
| DMX channels | 4 / 6 / 11ch |
| Display | black OLED touch display |
| Master/Slave | for synchronised operation of more units linked in a chain |
| Dimmer | linear 0 - 100% electronic dimmer |
| Dimmer curves | 4 selectable dimming modes available |
| Strobe / shutter | 0 - 30 Hz, electronic |
| Display battery | included, self-charging battery backup |
| Selectable PWM | 600 to 25000 Hz (selectable steps) |
| Firmware upgrade | via DMX with UPBOXPRO/UPBOX1 (not included) |
| Power connection | Seetronic powerCON TRUE IP65 IN/OUT |
| Signal connection | Seetronic XLR 5p IN/OUT connectors |
| Mains power supply | 100-240V - 50/60Hz |
| Max power consumption (230V) | 110W |
| Output (at 230V) | 33 units on a single power line |
| Max power consumption (120V) | 110W |
| Output (at 120V) | 18 units on a single power line |
| IP rating | IP65 for temporary outdoor use |
| IK rating | IK07 impact rating |
| Cooling | fan-free with natural convection |
| Housing | Sturdy die-cast aluminium body |
| Finish | black |
| Operating temperature | Ta -20 to +45 °C (-4 to +113 °F) |
| Dimensions (WxHxD) | 305x326x177mm |
| Weight | 6,2kg |
| Suspension and fixing | double hanging bracket suitable for safe hanging and for floor positioning |
| Compliance | CE, UKCA, RCM |
No downloads available yet.
Explore Similar
Products
Ready to Transform Your Space?
DELIVERY
For orders above AED 1,000
WARRANTY
2 years
SECURE PAYMENT
Safe encrypted checkup
EXPERT SUPPORT
Pre and post sale support
LumiPar 12IP is a bright and flexible IP LED PAR made for concerts, theatres and to perform as an architectural accent light for outdoor events. The housing in die-cast aluminium is designed to feature both as a robust workhorse and being totally fan-free allows for total silence during operation.
LumiPar 12IP is a bright and flexible IP LED PAR made for concerts, theatres and to perform as an architectural accent light for outdoor events. The housing in die-cast aluminium is designed to feature both as a robust workhorse and being totally fan-free allows for total silence during operation.
Features:IP65 die-cast aluminium housing
12x9W RGBW LED PAR
Fan-free and flicker-free
Filter frame included
LIGHT SOURCE
- Source:12x9WRGBW LEDs
- Luminous flux:(25°) 3'900 lm - (45°) 6'700
- Lux:(25°) 2'535lx@3 m full
- Lux:(45°) 1'154lx@3 m full
- Source life expectancy:> 50.000 h
OPTICS
- Beam angle:available in 25° or 45°
- Field angle:36° or 60°
COLOUR SYSTEM
- Colour mixing:RGBW / FC
- White presets:3.000 K ~ 10.000K
- Colour wheel:virtual colour wheel with macros
- Macros:built-in white presets
DYNAMIC EFFECTS
- Static mode:selection of static colour
- Manual mode:manual adjustment of colour
- Auto mode:built-in programs with execution speed adjustment
CONTROL
- Supported Protocols:DMX512
- DMX channels:4 / 6 / 11ch
- Display:black OLED touch display
- Master/Slave:for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:0 - 30Hz, electronic
- Display battery:included, self-charging battery backup
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
- Power connection:Seetronic powerCON TRUE IP65 IN/OUT
- Signal connection:Seetronic XLR 5p IN/OUT connectors
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):110W
- Output (at 230V):33units on a single power line
- Max power consumption (120V):110W
- Output (at 120V):18units on a single power line
PHYSICAL
- IP rating:IP65 for temporary outdoor use
- IK rating:IK07 impact rating
- Cooling:fan-free with natural convection
- Housing:Sturdy die-cast aluminium body
- Finish:black
- Operating temperature:Ta-20 to +45 °C (-4 to +113 °F)
- Dimensions (WxHxD):305x326x177mm
- Weight:6,2kg
INSTALLATION
- Suspension and fixing:double hanging bracket suitable for safe hanging and for floor positioning
CERTIFICATIONS / REPORTS
- Compliance:CE, UKCA, RCM
No reviews yet.
12x9W RGBW compact IP65 LED PAR
LumiPar 12IP is a bright and flexible IP LED PAR made for concerts, theatres and to perform as an architectural accent light for outdoor events. The housing in die-cast aluminium is designed to feature both as a robust workhorse and being totally fan-free allows for total silence during operation.
Main features:
- IP65 die-cast aluminium housing
- 12x9W RGBW LED PAR
- Fan-free and flicker-free
- Filter frame included
