JETWASH19
Indoor-Moving-Lights

JETWASH19

396x487x250mm Size
23ch DMX Channels
Neutrik powerCON TRUE1 IN/OUT connectors Power Consumption
14,7kg Weight

Experience the
JETWASH19
Light Show

Source 19x20W RGBW Osram Ostar LEDs
Luminous flux (4°) 3'019 lm - (52°) 5'337 @Full
Lux Calibration ON: (4°) 23'781 lx - (52°) 682lx @5 m full
Lux Calibration OFF: (4°) 28'000 lx - (52°) 788lx @5 m full
Source life expectancy > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
Zoom range 4° - 52° motorised linear zoom
Lens type honeycomb gapless plano-convex optics
Colour mixing RGBW / FC
CCT CCT control, + / - green correction, tungsten emulation
White presets 2.800 K ~ 10.000K
Colour wheel virtual colour wheel with macros
Control Resolution 16-bit dimmer control
Special features linear crossfade channel from any white to any colour; virtual CTO on colours
Supported Protocols DMX512, RDM
DMX channels 23ch
RDM for remote addressing and parameter configuration
Display LCD high resolution colour display with autoflip
Pan 540° - 16-bit resolution
Tilt 233° - 16-bit resolution
Position feedback automatic repositioning after external movement
Pan / tilt lock for transport and maintenance
Dimmer linear 0 - 100% electronic dimmer
Dimmer curves 4 selectable dimming modes available
Strobe / shutter 1 - 30 Hz, electronic
Selectable PWM 600 to 25000 Hz (selectable steps)
Firmware upgrade via DMX with UPBOXPRO/UPBOX2 (not included)
Power connection Neutrik powerCON TRUE1 IN/OUT connectors
Signal connection Amphenol XLR 5p IN/OUT connectors
Mains power supply 100-240V - 50/60Hz
Max power consumption (230V) 350W
Output (at 230V) 7 units on a single power line
Standby power 24 W
Power factor > 0,96
IP rating IP20
Cooling filtered forced-air with low-noise fan
Housing Aluminium structure with high-resistance polycarbonate cover
Finish black (RAL 9004) or white (RAL 9010)
Operating temperature Ta -10 to +45 °C (+14 to +113 °F)
Dimensions (WxHxD) 396x487x250mm
Weight 14,7kg
Suspension and fixing any position with quick-lock omega brackets
Hardware on-board sockets for quick-Lock Omega bracket (clamp not included)
Compliance CE, UKCA, RCM

No downloads available yet.

JETWASH19

Explore Similar
Products

Ready to Transform Your Space?

SKU: JETWASH19
CATEGORY: Indoor-Moving-Lights
BRAND: Prolights
DELIVERY For orders above AED 1,000
WARRANTY 2 years
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

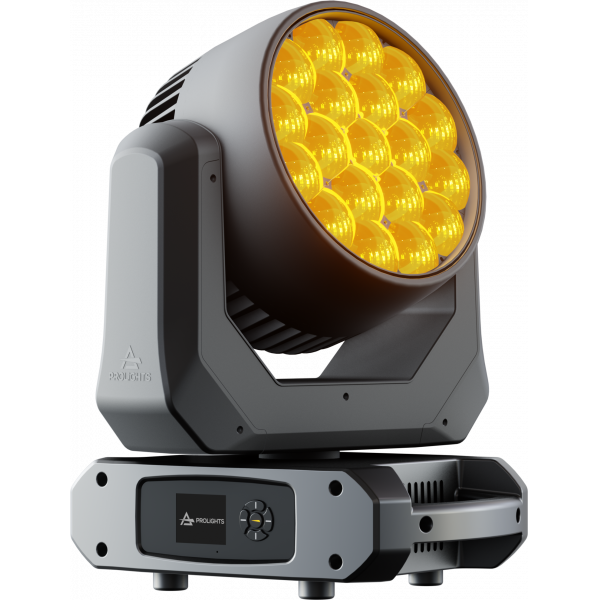

The Jet Wash19 is a compact and fast LED moving wash light with motorized zoom control.

The 20W Osram RGBW LED source provides plenty of output and combined with a highly efficient optical system capable of zooming from 4° to 52°, this unit can easily work as beam or wash light.

The Jet Wash19's colour mixing system features precise and advanced control with superior white and saturated tones, and a clean and intuitive user interface similar to the other series.

  • Compact form factor and fast movements
  • Zoom from 4° to 52° with high optical efficiency
  • Precise white CCT and colour mixing

    • The Jet Wash19 is a compact and fast LED moving wash light with motorized zoom control.

    The 20W Osram RGBW LED source provides plenty of output and combined with a highly efficient optical system capable of zooming from 4° to 52°, this unit can easily work as beam or wash light.

    The Jet Wash19's colour mixing system features precise and advanced control with superior white and saturated tones, and a clean and intuitive user interface similar to the other series.

    Features:
    Compact form factor and fast movements
    Zoom from 4° to 52° with high optical efficiency
    Precise white CCT and colour mixing

    LIGHT SOURCE
    • Source:
      19x20
      W
      RGBW Osram Ostar LEDs
    • Luminous flux:
      (4°) 3'019 lm - (52°) 5'337
      @Full
    • Lux:
      Calibration ON: (4°) 23'781 lx - (52°) 682
      lx
      @5 m full
    • Lux:
      Calibration OFF: (4°) 28'000 lx - (52°) 788
      lx
      @5 m full
    • Source life expectancy:
      > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
    OPTICS
    • Zoom range:
      4° - 52
      °
      motorised linear zoom
    • Lens type:
      honeycomb gapless plano-convex optics
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • CCT:
      CCT control, + / - green correction, tungsten emulation
    • White presets:
      2.800 K ~ 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    DYNAMIC EFFECTS
    • Control Resolution:
      16-bit dimmer control
    • Special features:
      linear crossfade channel from any white to any colour; virtual CTO on colours
    CONTROL
    • Supported Protocols:
      DMX512, RDM
    • DMX channels:
      23
      ch
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      LCD high resolution colour display with autoflip
    MOVEMENT
    • Pan:
      540
      °
      - 16-bit resolution
    • Tilt:
      233
      °
      - 16-bit resolution
    • Position feedback:
      automatic repositioning after external movement
    • Pan / tilt lock:
      for transport and maintenance
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Selectable PWM:
      600 to 25000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX2 (not included)
    CONNECTIONS
    • Power connection:
      Neutrik powerCON TRUE1 IN/OUT connectors
    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      350
      W
    • Output (at 230V):
      7
      units on a single power line
    • Standby power:
      24 W
    • Power factor:
      > 0,96
    PHYSICAL
    • IP rating:
      IP20
    • Cooling:
      filtered forced-air with low-noise fan
    • Housing:
      Aluminium structure with high-resistance polycarbonate cover
    • Finish:
      black (RAL 9004) or white (RAL 9010)
    • Operating temperature:
      Ta
      -10 to +45 °C (+14 to +113 °F)
    • Dimensions (WxHxD):
      396x487x250
      mm
    • Weight:
      14,7
      kg
    INSTALLATION
    • Suspension and fixing:
      any position with quick-lock omega brackets
    • Hardware on-board:
      sockets for quick-Lock Omega bracket (clamp not included)
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA, RCM
