GALLERYECLBTU
Gallery Lights

GALLERYECLBTU

E, outer: 37 mm - image: 23 mm - thickness: 1,1 mm Size
1 / 3ch DMX Channels
1,5 metres 3G0,75 bare end connection Power Consumption
2,5kg Weight

Experience the
GALLERYECLBTU
Light Show

35W White LED source in multiple variants Tungsten, Neutral, Daylight
Source 35W high-power white LED
Source CCT (TU) 3.200 K - (NW) 4.000 K - (DY) 5.000K
Luminous flux (16°) (TU) 1'887 lm; (NW) 1'947 lm; (DY) 2'095 @Full
Luminous flux (36°) (TU) 2'150 lm; (NW) 2'236 lm; (DY) 2'425 lm @full
Lux (16°) (TU) 1'209 lx; (NW) 1'324 lx; (DY) 1'782lx @5 m full
Lux (36°) (TU) 371 lx; (NW) 367 lx; (DY) 455lx @5 m full
CRI (TU) >90 - (NW) > 89 - (DY) >80
TLCI (TU) >92 ; (DY) > 67
TM30 Rf (TU) >89 ; (DY) > 80
TM30 Rg (TU) >98 ; (DY) >93
Source life expectancy > 70.000 hrs (L70B10 @Ta 25° C / 77° F)
Zoom range 16° - 36° manual
Lens type high-quality glass lens optics
Focus manual
Other accessory gobo holder for images and texture projection
Manual mode manual adjustment of dimmer and strobe
Auto mode built-in programs with execution speed adjustment
Gobo size E, outer: 37 mm - image: 23 mm - thickness: 1,1 mm
Supported Protocols W-DMX
DMX channels 1 / 3ch
Display Graphic User Interface
Dimmer linear 0 - 100% electronic dimmer
Dimmer curves 4 selectable dimming modes available
Strobe / shutter 1 - 30 Hz, electronic
Power connection 1,5 metres 3G0,75 bare end connection
Wireless Connection integrated W-DMX receiver
Data connection W-DMX
Mains power supply 100-240V - 50/60Hz
Max power consumption (230V) 42W
Output (at 230V) 38 units on a single power line
Power factor > 0,97
IP rating IP30
Cooling fan-free with natural convection
Housing Sturdy die-cast aluminium body
Finish black (RAL 9004) or white (RAL 9003)
Operating temperature Ta -20 to +45 °C (-4 to +113 °F)
Dimensions (WxHxD) 196x293x378mm
Weight 2,5kg
Compliance CE, UKCA, RCM

No downloads available yet.

GALLERYECLBTU

Explore Similar
Products

Ready to Transform Your Space?

SKU: GALLERYECLBTU
CATEGORY: Gallery Lights
BRAND: Prolights
DELIVERY For orders above AED 1,000
WARRANTY 2 years
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

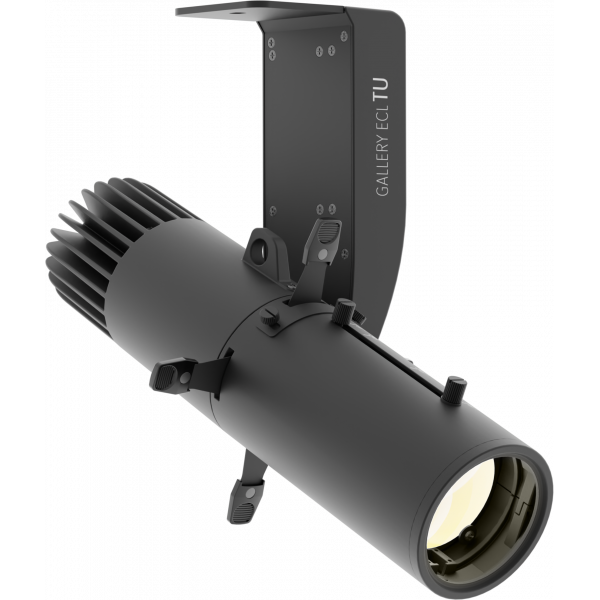

EclGalleryProfile is a compact LED ellipsoidal luminaire engineered with white LED engine and available in Tungsten, Neutral and Daylight White variants, all featuring exceptional high CRI. The luminaire is designed with a stunning aesthetics and it offers a total control of the light, performing a linear zoom system from 16° to 36°, framing shutters for an accurate focusing of the light, and gobo mounting option for image projections. EclGalleryProfile is fitted with electronic and PSU on board, allowing to be implemented on lighting tracks simply applying a track adapter and the fixture can be easily controlled by wireless. EclGalleryProfile is truly flexible for any commercials, venues, art-galleries and churches.

  • 35W White LED source in multiple variants: Tungsten, Neutral, Daylight
  • 16° to 36° on-board zoom with framing shutter and gobo holder
  • Wireless DMX control and optional track adapters for easy implementation

    • EclGalleryProfile is a compact LED ellipsoidal luminaire engineered with white LED engine and available in Tungsten, Neutral and Daylight White variants, all featuring exceptional high CRI. The luminaire is designed with a stunning aesthetics and it offers a total control of the light, performing a linear zoom system from 16° to 36°, framing shutters for an accurate focusing of the light, and gobo mounting option for image projections. EclGalleryProfile is fitted with electronic and PSU on board, allowing to be implemented on lighting tracks simply applying a track adapter and the fixture can be easily controlled by wireless. EclGalleryProfile is truly flexible for any commercials, venues, art-galleries and churches.

    Features:
    35W White LED source in multiple variants: Tungsten, Neutral, Daylight
    16° to 36° on-board zoom with framing shutter and gobo holder
    Wireless DMX control and optional track adapters for easy implementation

    LIGHT SOURCE
    • Source:
      35
      W
      high-power white LED
    • Source CCT:
      (TU) 3.200 K - (NW) 4.000 K - (DY) 5.000
      K
    • Luminous flux:
      (16°) (TU) 1'887 lm; (NW) 1'947 lm; (DY) 2'095
      @Full
    • Luminous flux:
      (36°) (TU) 2'150 lm; (NW) 2'236 lm; (DY) 2'425 lm @full
    • Lux:
      (16°) (TU) 1'209 lx; (NW) 1'324 lx; (DY) 1'782
      lx
      @5 m full
    • Lux:
      (36°) (TU) 371 lx; (NW) 367 lx; (DY) 455
      lx
      @5 m full
    • CRI:
      (TU) >90 - (NW) > 89 - (DY) >80
    • TLCI:
      (TU) >92 ; (DY) > 67
    • TM30 Rf:
      (TU) >89 ; (DY) > 80
    • TM30 Rg:
      (TU) >98 ; (DY) >93
    • Source life expectancy:
      > 70.000 hrs (L70B10 @Ta 25° C / 77° F)
    OPTICS
    • Zoom range:
      16° - 36
      °
      manual
    • Lens type:
      high-quality glass lens optics
    • Focus:
      manual
    • Other:
      accessory gobo holder for images and texture projection
    DYNAMIC EFFECTS
    • Manual mode:
      manual adjustment of dimmer and strobe
    • Auto mode:
      built-in programs with execution speed adjustment
    GOBOS
    • Gobo size:
      E, outer: 37 mm - image: 23 mm - thickness: 1,1 mm
    CONTROL
    • Supported Protocols:
      W-DMX
    • DMX channels:
      1 / 3
      ch
    • Display:
      Graphic User Interface
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    CONNECTIONS
    • Power connection:
      1,5 metres 3G0,75
      bare end connection
    • Wireless Connection:
      integrated W-DMX receiver
    • Data connection:
      W-DMX
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      42
      W
    • Output (at 230V):
      38
      units on a single power line
    • Power factor:
      > 0,97
    PHYSICAL
    • IP rating:
      IP30
    • Cooling:
      fan-free with natural convection
    • Housing:
      Sturdy die-cast aluminium body
    • Finish:
      black (RAL 9004) or white (RAL 9003)
    • Operating temperature:
      Ta
      -20 to +45 °C (-4 to +113 °F)
    • Dimensions (WxHxD):
      196x293x378
      mm
    • Weight:
      2,5
      kg
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA, RCM

    No reviews yet.

    Browse Related Categories

    More categories under Architectural

    Floods
    Linear
    Pendant
    Image Projectors
    Accents
    Spots

    35W zoomable LED ellipsoidals with static white LED source and framing shutter

    EclGalleryProfile is a compact LED ellipsoidal luminaire engineered with white LED engine and available in Tungsten, Neutral and Daylight White variants, all featuring exceptional high CRI. The luminaire is designed with a stunning aesthetics and it offers a total control of the light, performing a linear zoom system from 16° to 36°, framing shutters for an accurate focusing of the light, and gobo mounting option for image projections. EclGalleryProfile is fitted with electronic and PSU on board, allowing to be implemented on lighting tracks simply applying a track adapter and the fixture can be easily controlled by wireless. EclGalleryProfile is truly flexible for any commercials, venues, art-galleries and churches.

    Main features:

    • 35W White LED source in multiple variants: Tungsten, Neutral, Daylight
    • 16° to 36° on-board zoom with framing shutter and gobo holder
    • Wireless DMX control and optional track adapters for easy implementation
