GALLERYECLBFC
Gallery Lights

GALLERYECLBFC

E, outer: 37 mm - image: 23 mm - thickness: 1,1 mm Size
4 / 6 / 11ch DMX Channels
1,5 metres 3G0,75 bare end connection Power Consumption
2,9kg Weight

Experience the
GALLERYECLBFC
Light Show

Source 60W RGBW Osram LED
Luminous flux (20°) 663 lm - (37°) 635 @Full
Lux (20°) 264 lx - (37°) 93lx @5 m full
Source life expectancy > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
Zoom range 20° ~ 37° manual
Lens type high-quality glass lens optics
Focus manual
Other accessory gobo holder for images and texture projection
Colour mixing RGBW / FC
CCT CCT control through dedicated DMX channel
White presets 2.800 K ~ 10.000K
Colour wheel virtual colour wheel with macros
Static mode selection of static colour
Manual mode manual adjustment of colour
Auto mode built-in programs with execution speed adjustment
Gobo size E, outer: 37 mm - image: 23 mm - thickness: 1,1 mm
Supported Protocols W-DMX
DMX channels 4 / 6 / 11ch
Display Graphic User Interface
Dimmer linear 0 - 100% electronic dimmer
Dimmer curves 4 selectable dimming modes available
Strobe / shutter 1 - 30 Hz, electronic
Power connection 1,5 metres 3G0,75 bare end connection
Wireless Connection integrated W-DMX receiver
Data connection W-DMX
Mains power supply 100-240V - 50/60Hz
Max power consumption (230V) 45W
Output (at 230V) 38 units on a single power line
Power factor > 0,96
IP rating IP30
Cooling fan-free with natural convection
Housing Sturdy die-cast aluminium body
Finish black (RAL 9004) or white (RAL 9003)
Operating temperature Ta -20 to +45 °C (-4 to +113 °F)
Dimensions (WxHxD) 196x293x378mm
Weight 2,9kg
Hardware on-board tilt lock on arm
Compliance CE, UKCA, RCM

No downloads available yet.

GALLERYECLBFC

Explore Similar
Products

Ready to Transform Your Space?

SKU: GALLERYECLBFC
CATEGORY: Gallery Lights
BRAND: Prolights
DELIVERY For orders above AED 1,000
WARRANTY 2 years
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

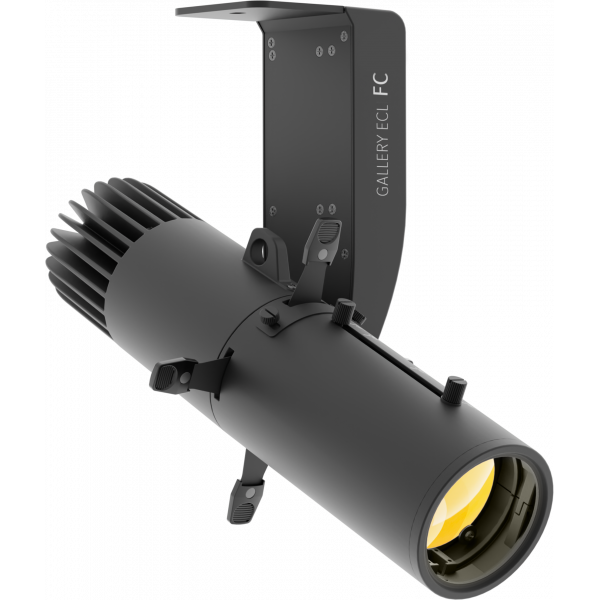

EclGalleryProfile FC is a compact LED ellipsoidal luminaire engineered with a single 60W high power RGBW/FC LED by Osram for a limitless colour and white reporduction. The luminaire is designed with a stunning aesthetics and it offers a total control of the light, performing a linear zoom system from 20° to 37°, framing shutters for an accurate focusing of the light, and gobo mounting option for image projections. EclGalleryProfile FC is fitted with electronic and PSU on board, allowing to be implemented on lighting tracks simply applying a track adapter and the fixture can be easily controlled by wireless. EclGalleryProfile FC is truly flexible for any commercials, venues, artgalleries and churches.

  • 60W RGBW/FC LED source
  • 20° to 37° on-board zoom with framing shutter and gobo holder
  • Wireless DMX control and optional track adapters for easy implementation

    • EclGalleryProfile FC is a compact LED ellipsoidal luminaire engineered with a single 60W high power RGBW/FC LED by Osram for a limitless colour and white reporduction. The luminaire is designed with a stunning aesthetics and it offers a total control of the light, performing a linear zoom system from 20° to 37°, framing shutters for an accurate focusing of the light, and gobo mounting option for image projections. EclGalleryProfile FC is fitted with electronic and PSU on board, allowing to be implemented on lighting tracks simply applying a track adapter and the fixture can be easily controlled by wireless. EclGalleryProfile FC is truly flexible for any commercials, venues, artgalleries and churches.

    Features:
    60W RGBW/FC LED source
    20° to 37° on-board zoom with framing shutter and gobo holder
    Wireless DMX control and optional track adapters for easy implementation

    LIGHT SOURCE
    • Source:
      60
      W
      RGBW Osram LED
    • Luminous flux:
      (20°) 663 lm - (37°) 635
      @Full
    • Lux:
      (20°) 264 lx - (37°) 93
      lx
      @5 m full
    • Source life expectancy:
      > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
    OPTICS
    • Zoom range:
      20° ~ 37
      °
      manual
    • Lens type:
      high-quality glass lens optics
    • Focus:
      manual
    • Other:
      accessory gobo holder for images and texture projection
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • CCT:
      CCT control through dedicated DMX channel
    • White presets:
      2.800 K ~ 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    DYNAMIC EFFECTS
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    GOBOS
    • Gobo size:
      E, outer: 37 mm - image: 23 mm - thickness: 1,1 mm
    CONTROL
    • Supported Protocols:
      W-DMX
    • DMX channels:
      4 / 6 / 11
      ch
    • Display:
      Graphic User Interface
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    CONNECTIONS
    • Power connection:
      1,5 metres 3G0,75
      bare end connection
    • Wireless Connection:
      integrated W-DMX receiver
    • Data connection:
      W-DMX
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      45
      W
    • Output (at 230V):
      38
      units on a single power line
    • Power factor:
      > 0,96
    PHYSICAL
    • IP rating:
      IP30
    • Cooling:
      fan-free with natural convection
    • Housing:
      Sturdy die-cast aluminium body
    • Finish:
      black (RAL 9004) or white (RAL 9003)
    • Operating temperature:
      Ta
      -20 to +45 °C (-4 to +113 °F)
    • Dimensions (WxHxD):
      196x293x378
      mm
    • Weight:
      2,9
      kg
    INSTALLATION
    • Hardware on-board:
      tilt lock on arm
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA, RCM

    No reviews yet.

    Browse Related Categories

    More categories under Architectural

    Floods
    Linear
    Pendant
    Image Projectors
    Accents
    Spots

    60W RGBW/FC zoomable LED ellipsoidals with framing shutter

    EclGalleryProfile FC is a compact LED ellipsoidal luminaire engineered with a single 60W high power RGBW/FC LED by Osram for a limitless colour and white reporduction. The luminaire is designed with a stunning aesthetics and it offers a total control of the light, performing a linear zoom system from 20° to 37°, framing shutters for an accurate focusing of the light, and gobo mounting option for image projections. EclGalleryProfile FC is fitted with electronic and PSU on board, allowing to be implemented on lighting tracks simply applying a track adapter and the fixture can be easily controlled by wireless. EclGalleryProfile FC is truly flexible for any commercials, venues, artgalleries and churches.

    Main features:

    • 60W RGBW/FC LED source
    • 20° to 37° on-board zoom with framing shutter and gobo holder
    • Wireless DMX control and optional track adapters for easy implementation
