ECLPARIPMVWBK
Outdoor Fixtures

ECLPARIPMVWBK

262x327x213mm Size
1 / 2 / 4 / 5 / 9 / 11ch DMX Channels
Seetronic powerCON TRUE IP65 IN/OUT Power Consumption
4,1kg Weight

Experience the
ECLPARIPMVWBK
Light Show

Flex lens system 15° on-board - 30° and 60° optional
Source 100W Variable White LED
Luminous flux (15°) 4'571 lm; (30°) 4'329 lm; (60°) 4'414 @Full
Lux (15°) 3'072 lx; (30°) 451 lx; (60°) 163lx @5 m full
CRI 97,6 @full; 97,1 @2'700K; 96,4 @6'500K
R9 95 @full; 83,7 @2'700K; 94,1 @6'500K
TLCI 99 @full; 97 @2'700K; 98 @6'500K
TM30 Rf 93,3 @full; 93,7 @2'700K; 91,5 @6'500K
TM30 Rg 100,5 @full; 97,1 @2'700K; 98,1 @6'500K
Source life expectancy > 50.000 h
Beam angle (on-board) 15° - (opt) 30°, 60°
Field angle (on-board) 24°
Lens diameter 172mm
Lens type parabolic reflector in combination with HD fresnel lens
Additional optics (opt) 30°, 60°
Other possible to mount lens both on the internal side and on the external side
Colour mixing tunable white
CCT CCT control through dedicated DMX channel
White presets 2.700 K ~ 6.500K
Macros built-in white presets
Static mode selection of static dimmer and color temperature
Manual mode manual adjustment of colour
Auto mode built-in programs with execution speed adjustment
Supported Protocols DMX512, RDM, CRMX (optional)
DMX channels 1 / 2 / 4 / 5 / 9 / 11ch
RDM for remote addressing and parameter configuration
Display Graphic User Interface
Master/Slave for synchronised operation of more units linked in a chain
Dimmer linear 0 - 100% electronic dimmer
Dimmer curves 4 selectable dimming modes available
Strobe / shutter 1 - 30 Hz, electronic
Selectable PWM 600 to 40000 Hz (selectable steps)
Firmware upgrade via DMX with UPBOXPRO/UPBOX1 (not included)
Power connection Seetronic powerCON TRUE IP65 IN/OUT
Signal connection Seetronic XLR 5p IN/OUT connectors
Wireless Connection optional LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
Mains power supply 100-240V - 50/60Hz
Max power consumption (230V) 117W
Output (at 230V) 12 units on a single power line
Power factor > 0,93
IP rating IP65 for temporary outdoor use
Cooling fan-free with natural convection
Housing Sturdy die-cast aluminium body
Finish black
Operating temperature Ta -20 to +45 °C (-4 to +113 °F)
Dimensions (WxHxD) 262x327x213mm
Weight 4,1kg
Suspension and fixing double hanging bracket suitable for safe hanging and for floor positioning
Other Front mount holder for accessories as barn door, filter frame
Compliance CE, UKCA, RCM, cTUVus, FCC
NOTE Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.

No downloads available yet.

ECLPARIPMVWBK

Explore Similar
Products

Ready to Transform Your Space?

SKU: ECLPARIPMVWBK
CATEGORY: Outdoor Fixtures
BRAND: Prolights
DELIVERY For orders above AED 1,000
WARRANTY 2 years
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

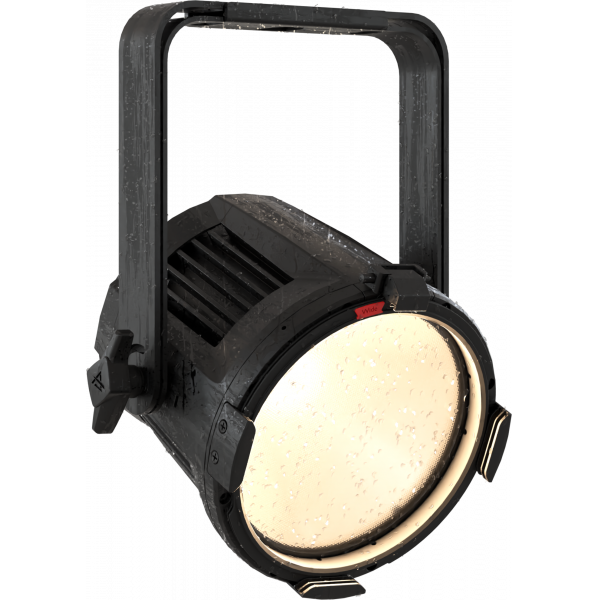

EclPar IPMVW is a flexible IP rated single source LED spotlight, featuring an 100W Variable White light source with high efficiency and advanced colour control.

Its LED source delivers a high-quality white reproduction with high CRI and TM30 with an advanced control over colours, ensuring consistency across fixtures.

The unit is compact and completely fan free, making the EclPar IPMVW a workhorse for any outdoor and dusty environment, but as well as for corporate and studio whereas  silent operations are required.

The flexible optical system allow a wide selection of lenses from narrow 15° (on board), flood 30°, and ultra wide 60°, which can be quickly mounted in front of the luminaire or inside the front tempered glass for lasting exterior installation.

  • 100W Variable White LED delivering high CRI, TLCI, TM30 values
  • Flex lens system: 15° on-board - 30° and 60° optional
  • IP65 for exterior application, fan free

    • EclPar IPMVW is a flexible IP rated single source LED spotlight, featuring an 100W Variable White light source with high efficiency and advanced colour control.

    Its LED source delivers a high-quality white reproduction with high CRI and TM30 with an advanced control over colours, ensuring consistency across fixtures.

    The unit is compact and completely fan free, making the EclPar IPMVW a workhorse for any outdoor and dusty environment, but as well as for corporate and studio whereas  silent operations are required.

    The flexible optical system allow a wide selection of lenses from narrow 15° (on board), flood 30°, and ultra wide 60°, which can be quickly mounted in front of the luminaire or inside the front tempered glass for lasting exterior installation.

    Features:
    100W Variable White LED delivering high CRI, TLCI, TM30 values
    Flex lens system: 15° on-board - 30° and 60° optional
    IP65 for exterior application, fan free

    LIGHT SOURCE
    • Source:
      100
      W
      Variable White LED
    • Luminous flux:
      (15°) 4'571 lm; (30°) 4'329 lm; (60°) 4'414
      @Full
    • Lux:
      (15°) 3'072 lx; (30°) 451 lx; (60°) 163
      lx
      @5 m full
    • CRI:
      97,6 @full; 97,1 @2'700K; 96,4 @6'500K
    • R9:
      95 @full; 83,7 @2'700K; 94,1 @6'500K
    • TLCI:
      99 @full; 97 @2'700K; 98 @6'500K
    • TM30 Rf:
      93,3 @full; 93,7 @2'700K; 91,5 @6'500K
    • TM30 Rg:
      100,5 @full; 97,1 @2'700K; 98,1 @6'500K
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      (on-board) 15° - (opt) 30°, 60
      °
    • Field angle:
      (on-board) 24
      °
    • Lens diameter:
      172
      mm
    • Lens type:
      parabolic reflector in combination with HD fresnel lens
    • Additional optics:
      (opt) 30°, 60°
    • Other:
      possible to mount lens both on the internal side and on the external side
    COLOUR SYSTEM
    • Colour mixing:
      tunable white
    • CCT:
      CCT control through dedicated DMX channel
    • White presets:
      2.700 K ~ 6.500
      K
    • Macros:
      built-in white presets
    DYNAMIC EFFECTS
    • Static mode:
      selection of static dimmer and color temperature
    • Manual mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    CONTROL
    • Supported Protocols:
      DMX512, RDM, CRMX (optional)
    • DMX channels:
      1 / 2 / 4 / 5 / 9 / 11
      ch
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      Graphic User Interface
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Selectable PWM:
      600 to 40000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX1 (not included)
    CONNECTIONS
    • Power connection:
      Seetronic powerCON TRUE IP65 IN/OUT
    • Signal connection:
      Seetronic XLR 5p IN/OUT connectors
    • Wireless Connection:
      optional LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      117
      W
    • Output (at 230V):
      12
      units on a single power line
    • Power factor:
      > 0,93
    PHYSICAL
    • IP rating:
      IP65 for temporary outdoor use
    • Cooling:
      fan-free with natural convection
    • Housing:
      Sturdy die-cast aluminium body
    • Finish:
      black
    • Operating temperature:
      Ta
      -20 to +45 °C (-4 to +113 °F)
    • Dimensions (WxHxD):
      262x327x213
      mm
    • Weight:
      4,1
      kg
    INSTALLATION
    • Suspension and fixing:
      double hanging bracket suitable for safe hanging and for floor positioning
    • Other:
      Front mount holder for accessories as barn door, filter frame
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA, RCM, cTUVus, FCC
    (*)
    • NOTE:
      Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.

    No reviews yet.

    Browse Related Categories

    More categories under Stage-Lighting

    Indoor-Fixtures
    Battery-Operated
    Strobes, Pixels and Blinders
    Indoor-Moving-Lights

    100W IP65 Variable White single source LED PAR

    EclPar IPMVW is a flexible IP rated single source LED spotlight, featuring an 100W Variable White light source with high efficiency and advanced colour control. Its Spektra calibrated LED source delivers a high-quality white reproduction with high CRI and TM30 with an advanced control over colours, ensuring consistency across fixtures. The unit is compact and completely fan free, making the EclPar IPMVW a workhorse for any outdoor and dusty environment, but as well as for corporate and studio whereas  silent operations are required. The flexible optical system allow a wide selection of lenses from narrow 15° (on board), flood 30°, and ultra wide 60°, which can be quickly mounted in front of the luminaire or inside the front tempered glass for lasting exterior installation.

    Main features:

    • 100W Spektra calibrated Variable White LED delivering high CRI, TLCI, TM30 values
    • Flex lens system: 15° on-board - 30° and 60° optional
    • IP65 for exterior application, fan free
