ECLPARIPMFCBK
Outdoor Fixtures

ECLPARIPMFCBK

262x327x213mm Size
1 / 2 / 5 / 9 / 10 / 12 / 18ch DMX Channels
Seetronic powerCON TRUE IP65 IN/OUT Power Consumption
4,1kg Weight

Experience the
ECLPARIPMFCBK
Light Show

Flex lens system 15° on-board - 30° and 60° optional
Source 100W RGB+WW LED array
Luminous flux (15°) 3'324 lm; (30°) 3'348 lm; (60°) 3'462 @Full
Lux (15°) 1'772 lx; (30°) 332 lx; (60°) 155lx @5 m full
CRI 93,7 @3'200K; 91,1 @5'600K
R9 89 @3'200K; 88 @5'600K
TLCI 77 @3'200K; 86 @5'600K
TM30 Rf 90 @3'200K; 89 @5'600K
TM30 Rg 109 @3'200K; 108 @5'600K
Source life expectancy > 50.000 h
Beam angle (on-board) 15° - (opt) 30°, 60°
Field angle (on-board) 26°
Lens diameter 172mm
Lens type parabolic reflector in combination with HD fresnel lens
Additional optics (opt) 30°, 60°
Other possible to mount lens both on the internal side and on the external side
Colour mixing RGB + Warm White
CCT CCT control, + / - green correction, tungsten emulation
White presets 2.700 K ~ 10.000K
Macros Gels library on-board
Static mode selection of static dimmer, colors and color temperature
Manual mode manual adjustment of colour
Auto mode built-in programs with execution speed adjustment
Special features linear crossfade channel from any white to any colour; virtual CTO on colours
Supported Protocols DMX512, RDM, CRMX (optional)
DMX channels 1 / 2 / 5 / 9 / 10 / 12 / 18ch
RDM for remote addressing and parameter configuration
Display Graphic User Interface
Master/Slave for synchronised operation of more units linked in a chain
Dimmer linear 0 - 100% electronic dimmer
Dimmer curves 4 selectable dimming modes available
Strobe / shutter 1 - 30 Hz, electronic
Selectable PWM 600 to 40000 Hz (selectable steps)
Firmware upgrade via DMX with UPBOXPRO/UPBOX1 (not included)
Power connection Seetronic powerCON TRUE IP65 IN/OUT
Signal connection Seetronic XLR 5p IN/OUT connectors
Wireless Connection optional LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
Mains power supply 100-240V - 50/60Hz
Max power consumption (230V) 120W
Output (at 230V) 12 units on a single power line
Power factor > 0,94
IP rating IP65 for temporary outdoor use
Cooling fan-free with natural convection
Housing Sturdy die-cast aluminium body
Finish black
Operating temperature Ta -20 to +45 °C (-4 to +113 °F)
Dimensions (WxHxD) 262x327x213mm
Weight 4,1kg
Suspension and fixing double hanging bracket suitable for safe hanging and for floor positioning
Other Front mount holder for accessories as barn door, filter frame
Compliance CE, UKCA, RCM, cTUVus, FCC
NOTE Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.

No downloads available yet.

ECLPARIPMFCBK

Explore Similar
Products

Ready to Transform Your Space?

SKU: ECLPARIPMFCBK
CATEGORY: Outdoor Fixtures
BRAND: Prolights
DELIVERY For orders above AED 1,000
WARRANTY 2 years
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

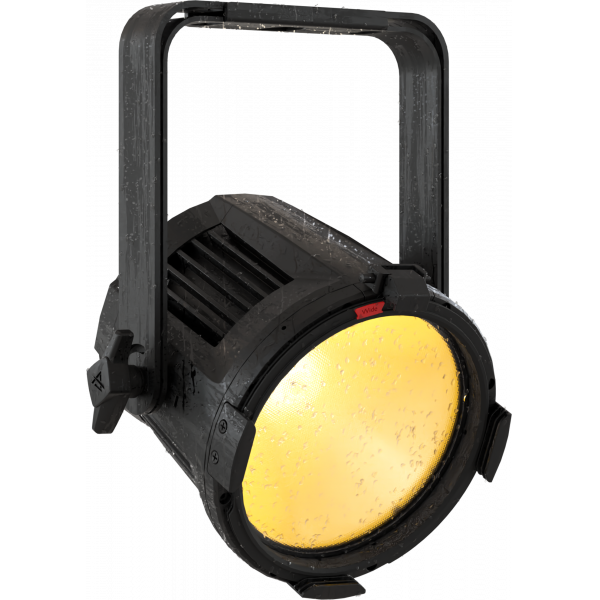

EclPar IPMFC is a flexible IP rated single source LED spotlight, featuring an 100W RGB+WarmWhite light source with high efficiency and advanced colour control.

Its Spektra calibrated LED source delivers a high-quality white reproduction with high CRI and TM30 with an advanced control over colours, ensuring consistency across fixtures.

The unit is compact and completely fan free, making the EclPar IPMFC a workhorse for any outdoor and dusty environment, corporate events or studios where silent operations are required.

The flexible optical system allow a wide selection of lenses from narrow 15° (on board), flood 30°, and ultra wide 60°, which can be quickly mounted in front of the luminaire or inside the front tempered glass for lasting exterior installation.

  • 100W Spektra calibrated RGB + Warm White LED delivering high CRI, TLCI, TM30 values
  • Flex lens system: 15° on-board - 30° and 60° optional
  • IP65 for exterior application, fan free

    • EclPar IPMFC is a flexible IP rated single source LED spotlight, featuring an 100W RGB+WarmWhite light source with high efficiency and advanced colour control.

    Its Spektra calibrated LED source delivers a high-quality white reproduction with high CRI and TM30 with an advanced control over colours, ensuring consistency across fixtures.

    The unit is compact and completely fan free, making the EclPar IPMFC a workhorse for any outdoor and dusty environment, corporate events or studios where silent operations are required.

    The flexible optical system allow a wide selection of lenses from narrow 15° (on board), flood 30°, and ultra wide 60°, which can be quickly mounted in front of the luminaire or inside the front tempered glass for lasting exterior installation.

    Features:
    100W Spektra calibrated RGB + Warm White LED delivering high CRI, TLCI, TM30 values
    Flex lens system: 15° on-board - 30° and 60° optional
    IP65 for exterior application, fan free

    LIGHT SOURCE
    • Source:
      100
      W
      RGB+WW LED array
    • Luminous flux:
      (15°) 3'324 lm; (30°) 3'348 lm; (60°) 3'462
      @Full
    • Lux:
      (15°) 1'772 lx; (30°) 332 lx; (60°) 155
      lx
      @5 m full
    • CRI:
      93,7 @3'200K; 91,1 @5'600K
    • R9:
      89 @3'200K; 88 @5'600K
    • TLCI:
      77 @3'200K; 86 @5'600K
    • TM30 Rf:
      90 @3'200K; 89 @5'600K
    • TM30 Rg:
      109 @3'200K; 108 @5'600K
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      (on-board) 15° - (opt) 30°, 60
      °
    • Field angle:
      (on-board) 26
      °
    • Lens diameter:
      172
      mm
    • Lens type:
      parabolic reflector in combination with HD fresnel lens
    • Additional optics:
      (opt) 30°, 60°
    • Other:
      possible to mount lens both on the internal side and on the external side
    COLOUR SYSTEM
    • Colour mixing:
      RGB + Warm White
    • CCT:
      CCT control, + / - green correction, tungsten emulation
    • White presets:
      2.700 K ~ 10.000
      K
    • Macros:
      Gels library on-board
    DYNAMIC EFFECTS
    • Static mode:
      selection of static dimmer, colors and color temperature
    • Manual mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    • Special features:
      linear crossfade channel from any white to any colour; virtual CTO on colours
    CONTROL
    • Supported Protocols:
      DMX512, RDM, CRMX (optional)
    • DMX channels:
      1 / 2 / 5 / 9 / 10 / 12 / 18
      ch
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      Graphic User Interface
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Selectable PWM:
      600 to 40000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX1 (not included)
    CONNECTIONS
    • Power connection:
      Seetronic powerCON TRUE IP65 IN/OUT
    • Signal connection:
      Seetronic XLR 5p IN/OUT connectors
    • Wireless Connection:
      optional LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      120
      W
    • Output (at 230V):
      12
      units on a single power line
    • Power factor:
      > 0,94
    PHYSICAL
    • IP rating:
      IP65 for temporary outdoor use
    • Cooling:
      fan-free with natural convection
    • Housing:
      Sturdy die-cast aluminium body
    • Finish:
      black
    • Operating temperature:
      Ta
      -20 to +45 °C (-4 to +113 °F)
    • Dimensions (WxHxD):
      262x327x213
      mm
    • Weight:
      4,1
      kg
    INSTALLATION
    • Suspension and fixing:
      double hanging bracket suitable for safe hanging and for floor positioning
    • Other:
      Front mount holder for accessories as barn door, filter frame
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA, RCM, cTUVus, FCC
    (*)
    • NOTE:
      Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
