Pars

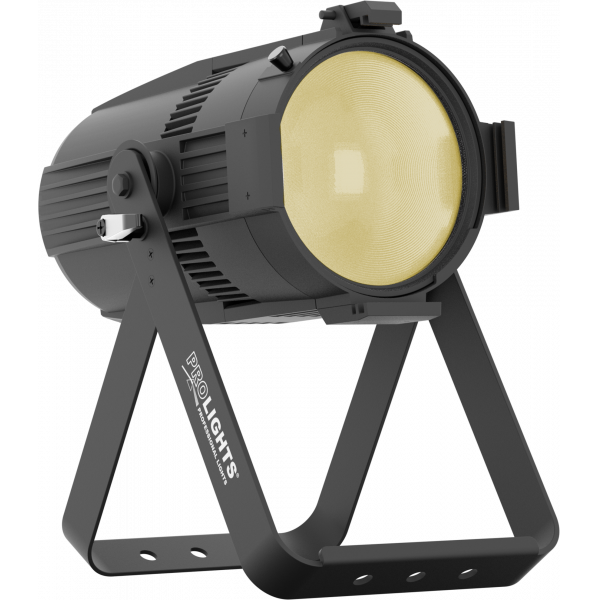

ECLPARDY
316x404x317mm
Size
1 / 2 / 3 / 6ch
DMX Channels
Neutrik powerCON IN/OUT connectors
Power Consumption
5,5kg
Weight
Experience the
ECLPARDY
Light Show
| Flex lens system | TU and DY 24° on-board - 12° and 73° included - 40° optional - UV 40° on-board |
|---|---|
| Source | 108 W (UV) / 177W White LED |
| Source CCT | (TU) 3.200K - (DY) 5.600K |
| Luminous flux | (TU) 12°: 11'726 lm - 24°: 12'454 lm - 73°: 11'834 @Full |
| Luminous flux | (DY) 12°: 13'739 lm - 24°: 14'436 lm - 73°: 13'913 lm; (UV) 229,07 lm |
| Lux | (TU) 12°: 5'102 lx - 24°: 2'333 lx - 73°: 344lx @5 m full |
| Lux | (DY) 12°: 5'947 lx - 24°: 2'777 lx - 73°: 413 lx; (UV) 5'724lx @5 m full |
| CRI | > 97 for TU; > 96 for DY |
| R9 | > 97 for TU; > 96 for DY |
| TLCI | > 98 for TU; > 95 for DY |
| TM30 Rf | > 93 for TU; > 90 for DY |
| TM30 Rg | < 102 for TU; < 101 for DY |
| Source life expectancy | > 70.000 h |
| Beam angle | with different lens included: 12° / 24° / 73° |
| Field angle | with different lens included: 28° / 41° / 104° |
| Lens diameter | 163mm |
| Lens type | fresnel lens |
| Additional optics | 24° (onboard - for TU and DY versions), 12° and 73° lens included (for TU and DY versions), 40° lens optional (for TU and DY versions) |
| Other | 40° lens included on board in UV version; no other lenses availables |
| Static mode | selection of static colour |
| Manual mode | manual adjustment of dimmer and strobe |
| Auto mode | built-in programs with execution speed adjustment |
| Supported Protocols | DMX512, RDM |
| DMX channels | 1 / 2 / 3 / 6ch |
| RDM | for remote addressing and parameter configuration |
| Display | OLED display |
| Master/Slave | for synchronised operation of more units linked in a chain |
| Dimmer | linear 0 - 100% electronic dimmer |
| Dimmer curves | selectable dimming modes available |
| Strobe / shutter | 1 - 30 Hz, electronic |
| Selectable PWM | 600 to 25000 Hz (selectable steps) |
| Firmware upgrade | via DMX with UPBOXPRO/UPBOX1 (not included) |
| Power connection | Neutrik powerCON IN/OUT connectors |
| Signal connection | Amphenol XLR 3p + 5p IN/OUT connectors |
| Mains power supply | 100-240V - 50/60Hz |
| Max power consumption (230V) | (TU, DY) 207 W - (UV) 204W |
| Output (at 230V) | 15 units on a single power line |
| Standby power | 110VAC/3.8W, 230VAC/4.5W |
| Power factor | > 0.95 |
| IP rating | IP20 |
| Cooling | forced-air with low-noise fan |
| Housing | Die-cast aluminium |
| Finish | black |
| Operating temperature | Ta -10 to +45 °C (+14 to +113 °F) |
| Dimensions (WxHxD) | 316x404x317mm |
| Weight | 5,5kg |
| Suspension and fixing | any position with quick-lock omega brackets |
| Other | gel frame holder included in the box (for TU and DY versions) - egg crate optional - barndoors optional |
| Compliance | CE, UKCA, RCM |
No downloads available yet.
Explore Similar
Products
Ready to Transform Your Space?
DELIVERY
For orders above AED 1,000
WARRANTY
2 years
SECURE PAYMENT
Safe encrypted checkup
EXPERT SUPPORT
Pre and post sale support
EclPar is a range of multipurpose LED fixtures with a single source, delivering silent operation, high quality of light and optical flexibility, designed to redefine the standard for theatrical, TV and corporate applications. EclPar TU and DY features a 177W white LED source (3.200 K TU; 6.000 K DY) delivering a tremendous lumen output and superior light quality with CRI and R9 > of 96. EclPar UV is a real UV LED luminaire with a 365nm wavelength LED source. The fixture offers an extensive accessory range including barn doors, filter frame, egg crate and a multitude of interchangeable lenses. EclPar features a smooth 16-bit dimming as well as RDM control and adjustable PWM to look good in front of a camera.
EclPar is a range of multipurpose LED fixtures with a single source, delivering silent operation, high quality of light and optical flexibility, designed to redefine the standard for theatrical, TV and corporate applications. EclPar TU and DY features a 177W white LED source (3.200 K TU; 6.000 K DY) delivering a tremendous lumen output and superior light quality with CRI and R9 > of 96. EclPar UV is a real UV LED luminaire with a 365nm wavelength LED source. The fixture offers an extensive accessory range including barn doors, filter frame, egg crate and a multitude of interchangeable lenses. EclPar features a smooth 16-bit dimming as well as RDM control and adjustable PWM to look good in front of a camera.
Features:177W White LED source (3.200 K TU; 5.600 K DY) with CRI and R9 > of 96; UV 108W 365nm wavelength LED source
Flex lens system: TU and DY 24° on-board - 12° and 73° included - 40° optional - UV 40° on-board
Silent operation and adjustable PWM
LIGHT SOURCE
- Source:108 W (UV) / 177WWhite LED
- Source CCT:(TU) 3.200K - (DY) 5.600K
- Luminous flux:(TU) 12°: 11'726 lm - 24°: 12'454 lm - 73°: 11'834@Full
- Luminous flux:(DY) 12°: 13'739 lm - 24°: 14'436 lm - 73°: 13'913 lm; (UV) 229,07 lm
- Lux:(TU) 12°: 5'102 lx - 24°: 2'333 lx - 73°: 344lx@5 m full
- Lux:(DY) 12°: 5'947 lx - 24°: 2'777 lx - 73°: 413 lx; (UV) 5'724lx@5 m full
- CRI:> 97 for TU; > 96 for DY
- R9:> 97 for TU; > 96 for DY
- TLCI:> 98 for TU; > 95 for DY
- TM30 Rf:> 93 for TU; > 90 for DY
- TM30 Rg:< 102 for TU; < 101 for DY
- Source life expectancy:> 70.000 h
OPTICS
- Beam angle:with different lens included: 12° / 24° / 73°
- Field angle:with different lens included: 28° / 41° / 104°
- Lens diameter:163mm
- Lens type:fresnel lens
- Additional optics:24° (onboard - for TU and DY versions), 12° and 73° lens included (for TU and DY versions), 40° lens optional (for TU and DY versions)
- Other:40° lens included on board in UV version; no other lenses availables
DYNAMIC EFFECTS
- Static mode:selection of static colour
- Manual mode:manual adjustment of dimmer and strobe
- Auto mode:built-in programs with execution speed adjustment
CONTROL
- Supported Protocols:DMX512, RDM
- DMX channels:1 / 2 / 3 / 6ch
- RDM:for remote addressing and parameter configuration
- Display:OLED display
- Master/Slave:for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:selectable dimming modes available
- Strobe / shutter:1 - 30Hz, electronic
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
- Power connection:Neutrik powerCON IN/OUT connectors
- Signal connection:Amphenol XLR 3p + 5p IN/OUT connectors
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):(TU, DY) 207 W - (UV) 204W
- Output (at 230V):15units on a single power line
- Standby power:110VAC/3.8W, 230VAC/4.5W
- Power factor:> 0.95
PHYSICAL
- IP rating:IP20
- Cooling:forced-air with low-noise fan
- Housing:Die-cast aluminium
- Finish:black
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):316x404x317mm
- Weight:5,5kg
INSTALLATION
- Suspension and fixing:any position with quick-lock omega brackets
- Other:gel frame holder included in the box (for TU and DY versions) - egg crate optional - barndoors optional
CERTIFICATIONS / REPORTS
- Compliance:CE, UKCA, RCM
No reviews yet.
Single source multipurpose LED PAR available in TU, DY and UV version
EclPar is a range of multipurpose LED fixtures with a single source, delivering silent operation, high quality of light and optical flexibility, designed to redefine the standard for theatrical, TV and corporate applications. EclPar TU and DY features a 177W white LED source (3.200 K TU; 6.000 K DY) delivering a tremendous lumen output and superior light quality with CRI and R9 > of 96. EclPar UV is a real UV LED luminaire with a 365nm wavelength LED source. The fixture offers an extensive accessory range including barn doors, filter frame, egg crate and a multitude of interchangeable lenses. EclPar features a smooth 16-bit dimming as well as RDM control and adjustable PWM to look good in front of a camera.
Main features:
- 177W White LED source (3.200 K TU; 5.600 K DY) with CRI and R9 > of 96; UV 108W 365nm wavelength LED source
- Flex lens system: TU and DY 24° on-board - 12° and 73° included - 40° optional - UV 40° on-board
- Silent operation and adjustable PWM
