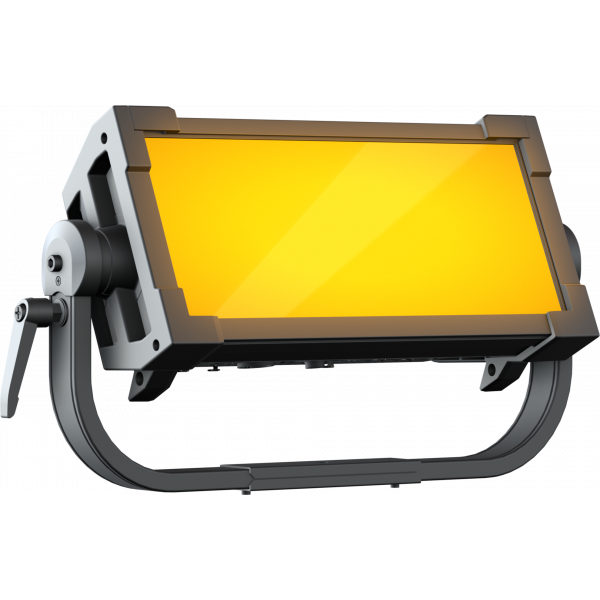

ECLPANELTWCM2X1
Soft Lighting

ECLPANELTWCM2X1

529x276x144mm Size
Neutrik powerCON TRUE1 IN/OUT connectors Power Consumption
6kg Weight
98° Beam Angle

Experience the
ECLPANELTWCM2X1
Light Show

Source 115W RGB + Warm White LED
Luminous flux 7'642 @3.200 K with LD filter
Lux 220lx @5 m full
CRI 93 @3.200 K; 94 @5.600 K
R9 90 @3.200 K; 92 @5.600 K
TLCI 91 @5.600 K
TM30 Rf 91 @3.200 K; 90 @5.600 K
TM30 Rg 105 @3.200 K; 104 @5.600 K
Source life expectancy > 50.000 h
Beam angle 98°
Field angle 153°
Lens type medium density diffusion panel (interchangeable)
Additional optics see available accessories
Colour control XY, CCT, RGBW, Gel, HSI, Source Emulation, Colour Macros, CTO on colours
Colour mixing RGB + Warm White
CCT Max CCT control range from 2.200K to 15.000K, + / - green correction, tungsten emulation
White presets 2.800 K - 10.000K with 28 K resolution
Colour wheel virtual colour wheel with macros
Macros Gels library on-board
Control Resolution 16-bit dimmer and color control
Pixel patterns pre-programmed pixel macros and cinema lighting effects
Special features linear crossfade channel from any white to any colour; virtual CTO on colours
Supported Protocols DMX512, RDM, Art-Net, sACN, W-DMX
Pixel control 2 linear section control
RDM for remote addressing and parameter configuration
Display Graphic User Interface
Stand Alone selectable mode through 3 rotatory knobs
Dimmer linear 0 - 100% electronic dimmer
Dimmer curves 4 selectable dimming modes available
Strobe / shutter 1 - 30 Hz, electronic
Selectable PWM 600 to 40000 Hz (selectable steps)
Firmware upgrade via DMX with UPBOXPRO/UPBOX1 (not included)
Power connection Neutrik powerCON TRUE1 IN/OUT connectors
Signal connection Amphenol XLR 5p IN/OUT connectors
Wireless Connection integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
Low Voltage DC connector XLR 4p
Mains power supply 100-240V - 50/60Hz
Low Voltage DC mains 48Vdc and 24-36V
Max power consumption (230V) 130W
Output (at 230V) 19 units on a single power line
Power factor >0,93
IP rating IP20
Cooling forced-air with low-noise fan
Housing Sturdy die-cast aluminium body
Finish black
Operating temperature Ta -10 to +45 °C (+14 to +113 °F)
Dimensions (WxHxD) 529x276x144mm
Dimensions with PO system (WxHxD) 547x396x144mm
Weight 6kg
Weight with PO system 8,6kg
Suspension and fixing bracket for hanging and positioning
Compliance CE, UKCA, RCM, cTUVus, FCC

No downloads available yet.

ECLPANELTWCM2X1

Explore Similar
Products

Ready to Transform Your Space?

SKU: ECLPANELTWCM2X1
CATEGORY: Soft Lighting
BRAND: Prolights
DELIVERY For orders above AED 1,000
WARRANTY 2 years
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

The EclPanel TWCMini2x1 is an ultra-compact LED soft light that provides a beautiful, wide source of soft and precise colours.

In addition to this, the EclPanel TWCMini2x1 comes with a full range of white presets, from daylight to tungsten tones, and produces a tremendous output whilst keeping high CRI, TLCI and TM-30 values.

The EclPanel TWCMini2x1 has 3 precision rotatory knobs, with multiple stand-alone control modes: CCT with +/- green shift, CCT presets, HSI for total control of hue, saturation and intensity, RAW RGBW mode, XY and FX mode, allowing to scroll through the built-in cinema effects engine.

Each of the 2 sections is controlled individually or simultaneously, allowing to play on-board customizable, cinematic effects through its built-in engine or from a console.
The EclPanel TWCMini2x1 has several colour control modes: RGBW, RGB, CMY, HSI, XY, RAW Direct, CCT Linear and CCT Presets with +/- green shift, source emulation and industry-standard colour gels.

Despite its lightweight, it has an on-board driver, a built-in power supply, Wireless DMX (CRMX+W-DMX), network connectivity (Art-Net, sACN, Kling-Net) and low voltage inputs (24-36V and 48Vdc).

  • 115W RGB + Warm White LED source
  • CRI >94; R9 >88,8; TLCI >92
  • 2 section pixel control and built-in lighting effects for cinema applications, colour gel matching
  • Silent operation with multiple fan modes
  • Wireless DMX (CRMX+W-DMX), Ethernet connectivity, low voltage inputs (24-36V, 48Vdc)

    • The EclPanel TWCMini2x1 is an ultra-compact LED soft light that provides a beautiful, wide source of soft and precise colours.

    In addition to this, the EclPanel TWCMini2x1 comes with a full range of white presets, from daylight to tungsten tones, and produces a tremendous output whilst keeping high CRI, TLCI and TM-30 values.

    The EclPanel TWCMini2x1 has 3 precision rotatory knobs, with multiple stand-alone control modes: CCT with +/- green shift, CCT presets, HSI for total control of hue, saturation and intensity, RAW RGBW mode, XY and FX mode, allowing to scroll through the built-in cinema effects engine.

    Each of the 2 sections is controlled individually or simultaneously, allowing to play on-board customizable, cinematic effects through its built-in engine or from a console.
    The EclPanel TWCMini2x1 has several colour control modes: RGBW, RGB, CMY, HSI, XY, RAW Direct, CCT Linear and CCT Presets with +/- green shift, source emulation and industry-standard colour gels.

    Despite its lightweight, it has an on-board driver, a built-in power supply, Wireless DMX (CRMX+W-DMX), network connectivity (Art-Net, sACN, Kling-Net) and low voltage inputs (24-36V and 48Vdc).

    Features:
    115W RGB + Warm White LED source
    CRI >94; R9 >88,8; TLCI >92
    2 section pixel control and built-in lighting effects for cinema applications, colour gel matching
    Silent operation with multiple fan modes
    Wireless DMX (CRMX+W-DMX), Ethernet connectivity, low voltage inputs (24-36V, 48Vdc)

    LIGHT SOURCE
    • Source:
      115
      W
      RGB + Warm White LED
    • Luminous flux:
      7'642
      @3.200 K with LD filter
    • Lux:
      220
      lx
      @5 m full
    • CRI:
      93 @3.200 K; 94 @5.600 K
    • R9:
      90 @3.200 K; 92 @5.600 K
    • TLCI:
      91 @5.600 K
    • TM30 Rf:
      91 @3.200 K; 90 @5.600 K
    • TM30 Rg:
      105 @3.200 K; 104 @5.600 K
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      98
      °
    • Field angle:
      153
      °
    • Lens type:
      medium density
      diffusion panel (interchangeable)
    • Additional optics:
      see available accessories
    COLOUR SYSTEM
    • Colour control:
      XY, CCT, RGBW, Gel, HSI, Source Emulation, Colour Macros, CTO on colours
    • Colour mixing:
      RGB + Warm White
    • CCT:
      Max CCT control range from 2.200K to 15.000K, + / - green correction, tungsten emulation
    • White presets:
      2.800 K - 10.000
      K
      with 28 K resolution
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      Gels library on-board
    DYNAMIC EFFECTS
    • Control Resolution:
      16-bit dimmer and color control
    • Pixel patterns:
      pre-programmed pixel macros and cinema lighting effects
    • Special features:
      linear crossfade channel from any white to any colour; virtual CTO on colours
    CONTROL
    • Supported Protocols:
      DMX512, RDM, Art-Net, sACN, W-DMX
    • Pixel control:
      2 linear
      section control
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      Graphic User Interface
    • Stand Alone:
      selectable mode through 3
      rotatory knobs
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Selectable PWM:
      600 to 40000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX1 (not included)
    CONNECTIONS
    • Power connection:
      Neutrik powerCON TRUE1 IN/OUT connectors
    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    • Wireless Connection:
      integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
    • Low Voltage DC connector:
      XLR 4p
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Low Voltage DC mains:
      48Vdc and
      24-36V
    • Max power consumption (230V):
      130
      W
    • Output (at 230V):
      19
      units on a single power line
    • Power factor:
      >0,93
    PHYSICAL
    • IP rating:
      IP20
    • Cooling:
      forced-air with low-noise fan
    • Housing:
      Sturdy die-cast aluminium body
    • Finish:
      black
    • Operating temperature:
      Ta
      -10 to +45 °C (+14 to +113 °F)
    • Dimensions (WxHxD):
      529x276x144
      mm
    • Dimensions with PO system (WxHxD):
      547x396x144
      mm
    • Weight:
      6
      kg
    • Weight with PO system:
      8,6
      kg
    INSTALLATION
    • Suspension and fixing:
      bracket for hanging and positioning
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA, RCM, cTUVus, FCC

    No reviews yet.

    Browse Related Categories

    More categories under Theatre, Film & Studio

    Cyclorama
    Pars
    Ellipsoidals
    LED-Par
    Fresnel
    Soft-Panel
    Profile
    Follow Spot

    115W Tunable White and colourful LED soft light with pixels and lighting effects

    The EclPanel TWCMini2x1 is an ultra-compact LED soft light that provides a beautiful, wide source of soft and precise colours. In addition to this, the EclPanel TWCMini2x1 comes with a full range of white presets, from daylight to tungsten tones, and produces a tremendous output whilst keeping high CRI, TLCI and TM-30 values. The EclPanel TWCMini2x1 has 3 precision rotatory knobs, with multiple stand-alone control modes: CCT with +/- green shift, CCT presets, HSI for total control of hue, saturation and intensity, RAW RGBW mode, XY and FX mode, allowing to scroll through the built-in cinema effects engine. Each of the 2 sections is controlled individually or simultaneously, allowing to play on-board customizable, cinematic effects through its built-in engine or from a console. The EclPanel TWCMini2x1 has several colour control modes: RGBW, RGB, CMY, HSI, XY, RAW Direct, CCT Linear and CCT Presets with +/- green shift, source emulation and industry-standard colour gels. Despite its lightweight, it has an on-board driver, a built-in power supply, Wireless DMX (CRMX+W-DMX), network connectivity (Art-Net, sACN, Kling-Net) and low voltage inputs (24-36V and 48Vdc).

    Main features:

    • 115W RGB + Warm White LED source
    • CRI >94; R9 >88,8; TLCI >92
    • 2 section pixel control and built-in lighting effects for cinema applications, colour gel matching
    • Silent operation with multiple fan modes
    • Wireless DMX (CRMX+W-DMX), Ethernet connectivity, low voltage inputs (24-36V, 48Vdc)
