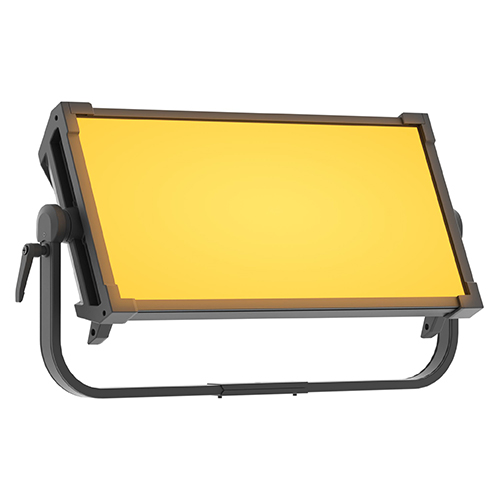

ECLPANELTWC
Experience the
ECLPANELTWC
Light Show
| Battery connection (4pXLR 24-36V) | compatible with industry standard external batteries (optional) |
|---|---|
| Source | 740W RGB + Warm White LEDs (driven @ 430W) |
| Luminous flux | 34'236 @4.000 K with MD filter |
| Lux | @4000K, 517lx @5 m |
| CRI | 94,6 @3.200 K; 95,5 @5.600 K |
| R9 | 97 @3.200 K; 92 @5.600 K |
| TLCI | 92 @5.600 K |
| TM30 Rf | 92 @3.200 K; 89,5 @5.600 K |
| TM30 Rg | 103 @3.200 K; 102,4 @5.600 K |
| Source life expectancy | > 50.000 h |
| Beam angle | 102° |
| Field angle | 159° |
| Lens type | Medium Density diffusion panel (interchangeable) |
| Additional optics | see available accessories |
| Colour control | XY, CCT, RGBW, Gel, HSI, Source Emulation, Colour Macros, CTO on colours |
| Colour mixing | RGB + Warm White |
| CCT | Max CCT control range from 2.200K to 15.000K, + / - green correction, tungsten emulation |
| White presets | 2.800K - 10.000K with 28 K resolution |
| Colour wheel | virtual colour wheel with macros |
| Macros | Gels library on-board |
| Control Resolution | 16-bit dimmer and color control |
| Pixel patterns | pre-programmed pixel macros and cinema lighting effects |
| Special features | linear crossfade channel from any white to any colour; virtual CTO on colours |
| Supported Protocols | DMX512, RDM, W-DMX, rotatory knob |
| Pixel control | 8 section control |
| RDM | for remote addressing and parameter configuration |
| Display | Graphic User Interface |
| Stand Alone | selectable mode through 3 rotatory knobs |
| Dimmer | linear 0 - 100% electronic dimmer |
| Dimmer curves | 4 selectable dimming modes available |
| Strobe / shutter | 1 - 30 Hz, electronic |
| Selectable PWM | 600 to 36000 Hz (selectable steps) |
| Firmware upgrade | via DMX with UPBOXPRO/UPBOX1 (not included) |
| Power connection | Neutrik powerCON TRUE1 IN/OUT connectors |
| Signal connection | Amphenol XLR 5p IN/OUT connectors |
| Wireless Connection | integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible |
| Low Voltage DC connector | XLR 4p |
| Mains power supply | 100-240V - 50/60Hz |
| Low Voltage DC mains | 24-36V |
| Max power consumption (230V) | 460W |
| Output (at 230V) | 6 units on a single power line |
| Power factor | >0,94 |
| IP rating | IP20 |
| Cooling | forced-air with low-noise fan |
| Housing | Sturdy die-cast aluminium body |
| Finish | black |
| Operating temperature | Ta -10 to +45 °C (+14 to +113 °F) |
| Dimensions (WxHxD) | 819x431x144mm |
| Dimensions with PO system (WxHxD) | 836x431x144mm |
| Weight | 15,3kg |
| Weight with PO system | 17,1kg |
| Suspension and fixing | bracket for hanging and positioning |
| Compliance | CE, UKCA, RCM, cTUVus, FCC |
No downloads available yet.
Explore Similar
Products
Ready to Transform Your Space?
EclPanel TWC, is the compact 2x1 LED soft light that provides a beautiful, wide source of soft and precise colours. In addition to this, the PROLIGHTS EclPanel TWC comes with a full range of white reproductions, from daylight through to tungsten tones, reaching a superior light quality with high CRI, TLCI and TM-30.
The EclPanel TWC allows for quick and accurate local adjustment of light through 3 rotatory knobs with three fully featured modes: CCT with +/- green shift, HSI for total control of hue, saturation and intensity, FX mode to access the on board pixel cinema effects.
The unit can also be controlled on a per-section basis, allowing for reproduction of onboard customisable effects or to be self-made through the lighting desk.
Both methods provide eye-candy, with the appealing and modern front looks and cinematic special effects.
The unit is designed with an onboard driver and built-in power supply and, being lightweight, the EclPanel TWC offers easy rigging and cabling making it the perfect lighting tool for every location.
EclPanel TWC, is the compact 2x1 LED soft light that provides a beautiful, wide source of soft and precise colours. In addition to this, the PROLIGHTS EclPanel TWC comes with a full range of white reproductions, from daylight through to tungsten tones, reaching a superior light quality with high CRI, TLCI and TM-30.
The EclPanel TWC allows for quick and accurate local adjustment of light through 3 rotatory knobs with three fully featured modes: CCT with +/- green shift, HSI for total control of hue, saturation and intensity, FX mode to access the on board pixel cinema effects.
The unit can also be controlled on a per-section basis, allowing for reproduction of onboard customisable effects or to be self-made through the lighting desk.
Both methods provide eye-candy, with the appealing and modern front looks and cinematic special effects.
The unit is designed with an onboard driver and built-in power supply and, being lightweight, the EclPanel TWC offers easy rigging and cabling making it the perfect lighting tool for every location.
Features:740W RGB + Warm White Led source (driven @430W)
CRI > 95,5; R9 > 92; TLCI > 92
8 section pixel control and built-in lighting effects for Cinema applications
Silent operation with multiple fan modes
Battery connection (4pXLR 24-36V): compatible with industry standard external batteries (optional)
- Source:740WRGB + Warm White LEDs (driven @ 430W)
- Luminous flux:34'236@4.000 K with MD filter
- Lux:@4000K, 517lx@5 m
- CRI:94,6 @3.200 K; 95,5 @5.600 K
- R9:97 @3.200 K; 92 @5.600 K
- TLCI:92 @5.600 K
- TM30 Rf:92 @3.200 K; 89,5 @5.600 K
- TM30 Rg:103 @3.200 K; 102,4 @5.600 K
- Source life expectancy:> 50.000 h
- Beam angle:102°
- Field angle:159°
- Lens type:Medium Densitydiffusion panel (interchangeable)
- Additional optics:see available accessories
- Colour control:XY, CCT, RGBW, Gel, HSI, Source Emulation, Colour Macros, CTO on colours
- Colour mixing:RGB + Warm White
- CCT:Max CCT control range from 2.200K to 15.000K, + / - green correction, tungsten emulation
- White presets:2.800K - 10.000Kwith 28 K resolution
- Colour wheel:virtual colour wheel with macros
- Macros:Gels library on-board
- Control Resolution:16-bit dimmer and color control
- Pixel patterns:pre-programmed pixel macros and cinema lighting effects
- Special features:linear crossfade channel from any white to any colour; virtual CTO on colours
- Supported Protocols:DMX512, RDM, W-DMX, rotatory knob
- Pixel control:8section control
- RDM:for remote addressing and parameter configuration
- Display:Graphic User Interface
- Stand Alone:selectable mode through 3rotatory knobs
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 30Hz, electronic
- Selectable PWM:600 to 36000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
- Power connection:Neutrik powerCON TRUE1 IN/OUT connectors
- Signal connection:Amphenol XLR 5p IN/OUT connectors
- Wireless Connection:integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
- Low Voltage DC connector:XLR 4p
- Mains power supply:100-240V - 50/60Hz
- Low Voltage DC mains:24-36V
- Max power consumption (230V):460W
- Output (at 230V):6units on a single power line
- Power factor:>0,94
- IP rating:IP20
- Cooling:forced-air with low-noise fan
- Housing:Sturdy die-cast aluminium body
- Finish:black
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):819x431x144mm
- Dimensions with PO system (WxHxD):836x431x144mm
- Weight:15,3kg
- Weight with PO system:17,1kg
- Suspension and fixing:bracket for hanging and positioning
- Compliance:CE, UKCA, RCM, cTUVus, FCC
No reviews yet.
740W Tunable White and colourful LED soft light with pixels and lighting effects (driven @ 430W)
Main features:
- 740W RGB + Warm White Led source (driven @430W)
- CRI > 95,5; R9 > 92; TLCI > 92
- 8 section pixel control and built-in lighting effects for Cinema applications
- Silent operation with multiple fan modes
- Battery connection (4pXLR 24-36V): compatible with industry standard external batteries (optional)
