Gallery Lights

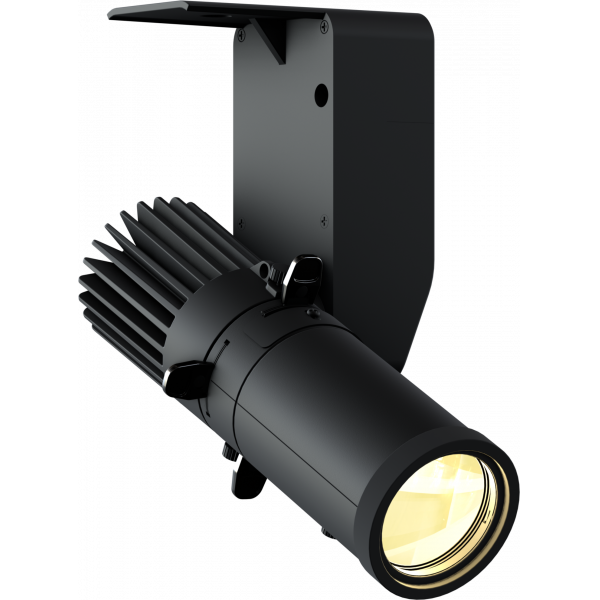

ECLMINIDAT30KB
126x170x95mm
Size
1 / 2 / 3 / 4ch
DMX Channels
screw terminal blocks
Power Consumption
1,15kg
Weight
Experience the
ECLMINIDAT30KB
Light Show
| Multiple lens options | 19° / 26° / 36° / 50° profile or zoomable 15°-30° or 25°-50° wash optics |
|---|---|
| Source | 18W White COB LED |
| Source CCT | 2.700K - 3.000K - 4.000K - 5.600K |
| Luminous flux | (3.000K) (19°) 1.134 lm - (26°) 1.130 lm - (36°) 1.144 lm - (50°) 1.105 @Full |
| Luminous flux | (5.600K) (19°) 1.230 lm - (26°) 1.250 lm - (36°) 1.251 lm - (50°) 1.212 lm @full |
| Lux | (3.000K) (19°) 588 lx - (26°) 334 lx - (36°) 184 lx - (50°) 98lx @5 m full |
| Lux | (5.600K) (19°) 632 lx - (26°) 363 lx - (36°) 193 lx - (50°) 105lx @5 m full |
| CRI | 93 @2.700 K; 92 @3.000 K; 89@4.000 K; 93 @5.600 K |
| TLCI | 84 @2.700 K; 87 @3.000 K; 89 @4.000 K; 95 @5.600 K |
| TM30 Rf | > 89 @2.700 K; 3.000 K; 4.000 K; > 93 @5.600 K |
| TM30 Rg | > 102 @2.700 K; 3.000 K; 4.000 K; 5.600 K |
| Source life expectancy | > 50.000 hrs (L70B10 @Ta 25° C / 77° F) |
| Optics | (profile lens - optional) 19°, 26°, 36°, 50° - gobo holder included |
| Zoom range | (wash lens - optional) 15° ~ 30° or 25° ~ 50° |
| Other | 360° lens rotation - optional 360° rotating barndoors and gel frame holder |
| Other | (profile lens - optional) gobo holder size E, outer: 37,3 mm - image: 24 mm - thickness: 1,1 mm |
| Control Resolution | 16-bit dimmer control |
| Static mode | selection of static dimmer |
| Manual mode | manual adjustment of dimmer and strobe |
| Supported Protocols | Local Knob, DMX, DALI Type6, RDM |
| DMX channels | 1 / 2 / 3 / 4ch |
| RDM | for remote addressing and parameter configuration |
| Dimmer | linear 0 - 100% electronic dimmer |
| Dimmer curves | 4 selectable dimming modes available |
| Strobe / shutter | 1 - 30 Hz, electronic |
| Selectable PWM | 600 to 25000 Hz (selectable steps) |
| Firmware upgrade | via DMX with UPBOXPRO/UPBOX1 (not included) |
| Power connection | screw terminal blocks |
| Data connection | screw terminal blocks |
| Mains power supply | 100-240V - 50/60Hz |
| Max power consumption (230V) | 25W |
| Output (at 230V) | 68 units on a single power line |
| Power factor | > 0,90 |
| IP rating | IP20 |
| Cooling | fan-free with natural convection |
| Housing | Die-cast aluminium |
| Finish | black (RAL 9004) or white (RAL 9003) |
| Operating temperature | Ta -10 to +45 °C (+14 to +113 °F) |
| Dimensions (WxHxD) | 126x170x95mm |
| Weight | 1,15kg |
| Suspension and fixing | track / hanging / ceiling installation |
| Hardware on-board | lockable tilt with screw |
| Other | cable not included - Cable diameter range: 6 - 10 mm |
| Compliance | CE, UKCA, RCM, cTUVus, FCC |
No downloads available yet.
Explore Similar
Products
Ready to Transform Your Space?
DELIVERY
For orders above AED 1,000
SECURE PAYMENT
Safe encrypted checkup
EXPERT SUPPORT
Pre and post sale support
The EclMini is a range of ultra-compact, low-profile LED spotlights, designed for galleries, retail or any hospitality venue.
There are several control options, sources, and optics available to fit any application.
The EclMini DAT is configurable and addressed through RDM and includes a broad set of on-board control options: DMX, DALI Type 6 or local knob dimming control.
The EclMini DAT includes a high-efficiency 18W white, high CRI LED source, available in 2,700K, 3,000K, 4,000K, 5,600K variants, with a wide choice of optics and accessories available, making it truly a multi-purpose fixture.
The EclMini is a range of ultra-compact, low-profile LED spotlights, designed for galleries, retail or any hospitality venue.
There are several control options, sources, and optics available to fit any application.
The EclMini DAT is configurable and addressed through RDM and includes a broad set of on-board control options: DMX, DALI Type 6 or local knob dimming control.
The EclMini DAT includes a high-efficiency 18W white, high CRI LED source, available in 2,700K, 3,000K, 4,000K, 5,600K variants, with a wide choice of optics and accessories available, making it truly a multi-purpose fixture.
Features:Data control through RDM, DMX, DALI Type 6 and local knob dimming
18W High-CRI White LED available in 2,700K, 3,000K, 4,000K, 5,600K versions, black and white housing
Multiple lens options: 19° / 26° / 36° / 50° profile or zoomable 15°-30° or 25°-50° wash optics
LIGHT SOURCE
- Source:18WWhite COB LED
- Source CCT:2.700K - 3.000K - 4.000K - 5.600K
- Luminous flux:(3.000K) (19°) 1.134 lm - (26°) 1.130 lm - (36°) 1.144 lm - (50°) 1.105@Full
- Luminous flux:(5.600K) (19°) 1.230 lm - (26°) 1.250 lm - (36°) 1.251 lm - (50°) 1.212 lm @full
- Lux:(3.000K) (19°) 588 lx - (26°) 334 lx - (36°) 184 lx - (50°) 98lx@5 m full
- Lux:(5.600K) (19°) 632 lx - (26°) 363 lx - (36°) 193 lx - (50°) 105lx@5 m full
- CRI:93 @2.700 K; 92 @3.000 K; 89@4.000 K; 93 @5.600 K
- TLCI:84 @2.700 K; 87 @3.000 K; 89 @4.000 K; 95 @5.600 K
- TM30 Rf:> 89 @2.700 K; 3.000 K; 4.000 K; > 93 @5.600 K
- TM30 Rg:> 102 @2.700 K; 3.000 K; 4.000 K; 5.600 K
- Source life expectancy:> 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
- Optics:(profile lens - optional) 19°, 26°, 36°, 50° - gobo holder included
- Zoom range:(wash lens - optional) 15° ~ 30° or 25° ~ 50°
- Other:360° lens rotation - optional 360° rotating barndoors and gel frame holder
- Other:(profile lens - optional) gobo holder size E, outer: 37,3 mm - image: 24 mm - thickness: 1,1 mm
DYNAMIC EFFECTS
- Control Resolution:16-bit dimmer control
- Static mode:selection of static dimmer
- Manual mode:manual adjustment of dimmer and strobe
CONTROL
- Supported Protocols:Local Knob, DMX, DALI Type6, RDM
- DMX channels:1 / 2 / 3 / 4ch
- RDM:for remote addressing and parameter configuration
ELECTRONICS
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 30Hz, electronic
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
- Power connection:screw terminal blocks
- Data connection:screw terminal blocks
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):25W
- Output (at 230V):68units on a single power line
- Power factor:> 0,90
PHYSICAL
- IP rating:IP20
- Cooling:fan-free with natural convection
- Housing:Die-cast aluminium
- Finish:black (RAL 9004) or white (RAL 9003)
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):126x170x95mm
- Weight:1,15kg
INSTALLATION
- Suspension and fixing:track / hanging / ceiling installation
- Hardware on-board:lockable tilt with screw
- Other:cable not included - Cable diameter range: 6 - 10 mm
CERTIFICATIONS / REPORTS
- Compliance:CE, UKCA, RCM, cTUVus, FCC
No reviews yet.
18W White LED Gallery light, with data control (DMX, DALI T6, knob-dimming)
The EclMini is a range of ultra-compact, low-profile LED spotlights, designed for galleries, retail or any hospitality venue.
There are several control options, sources, and optics available to fit any application.
The EclMini DAT is configurable and addressed through RDM and includes a broad set of on-board control options: DMX, DALI Type 6 or local knob dimming control.
The EclMini DAT includes a high-efficiency 18W white, high CRI LED source, available in 2,700K, 3,000K, 4,000K, 5,600K variants, with a wide choice of optics and accessories available, making it truly a multi-purpose fixture.
Main features:
- Data control through RDM, DMX, DALI Type 6 and local knob dimming
- 18W High-CRI White LED available in 2,700K, 3,000K, 4,000K, 5,600K versions, black and white housing
- Multiple lens options: 19° / 26° / 36° / 50° profile or zoomable 15°-30° or 25°-50° wash optics
