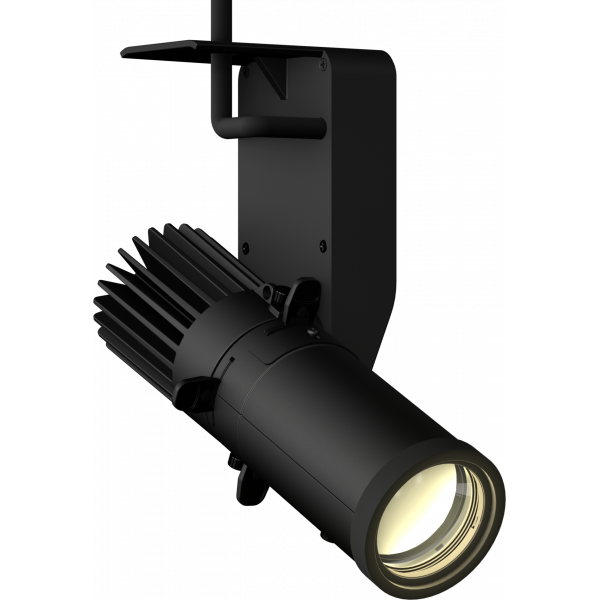

ECLMINICC27KB
Gallery Lights

ECLMINICC27KB

103X170x103mm Size
18W Power Consumption
1kg Weight

Experience the
ECLMINICC27KB
Light Show

Multiple lens options 19° / 26° / 36° / 50° profile or zoomable 15-30° or 25-50° wash optics
Source 18W White COB LED
Source CCT K see available versions
Luminous flux (3.000K) (19°) 1.134 lm - (26°) 1.130 lm - (36°) 1.144 lm - (50°) 1.105
Luminous flux (5.600K) (19°) 1.230 lm - (26°) 1.250 lm - (36°) 1.251 lm - (50°) 1.212 lm @full
Lux (3.000K) (19°) 588 lx - (26°) 334 lx - (36°) 184 lx - (50°) 98lx
Lux (5.600K) (19°) 632 lx - (26°) 363 lx - (36°) 193 lx - (50°) 105lx
CRI 93 @2.700 K; 92 @3.000 K; 89@4.000 K; 93 @5.600 K
R9 TBD
TLCI 84 @2.700 K; 87 @3.000 K; 89 @4.000 K; 95 @5.600 K
TM30 Rf > 89 @2.700 K; 3.000 K; 4.000 K; > 93 @5.600 K
TM30 Rg > 102 @2.700 K; 3.000 K; 4.000 K; 5.600 K
Source life expectancy > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
Optics (profile lens - optional) 19°, 26°, 36°, 50° - gobo holder included
Zoom range (wash lens - optional) 15° ~ 30° or 25° ~ 50°
Other 360° lens rotation - optional 360° rotating barndoors and gel frame holder
Other (profile lens - optional) gobo holder size E, outer: 37,3 mm - image: 24 mm - thickness: 1,1 mm
Data connection screw terminal blocks
Constant Current mains max 500mA/36V
Max power consumption (230V) 18W
Output (at 230V) 40 units on a single power line
IP rating IP20
Cooling fan-free with natural convection
Housing Die-cast aluminium
Finish black (RAL 9004) or white (RAL 9003)
Operating temperature Ta -10 to +45 °C (+14 to +113 °F)
Dimensions (WxHxD) 103X170x103mm
Weight 1kg
Suspension and fixing track / hanging / ceiling installation
Hardware on-board lockable tilt with screw
Other 1m cable included - Cable diameter range: 6 - 10 mm
Compliance CE, UKCA, RCM, cTUVus, FCC

No downloads available yet.

ECLMINICC27KB

Explore Similar
Products

Ready to Transform Your Space?

SKU: ECLMINICC27KB
CATEGORY: Gallery Lights
BRAND: Prolights
DELIVERY For orders above AED 1,000
WARRANTY 2 years
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

The EclMini is a range of ultra-compact, low-profile LED spotlights, designed for galleries, retail or any hospitality venue. There are several control options, sources, and optics available to fit any application.

The EclMini CC connects to an external Constant Current PSU and driver (max 500mA/36V). PROLIGHTS accessories are available or, alternatively, the use any third-party compatible components is possible, leaving to system integrators to install these spotlights in venues with their own wiring distribution and control.

The EclMini CC includes a high-efficiency 18W white, high CRI LED source, available in 2,700K, 3,000K, 4,000K, 5,600K variants, with a wide choice of optics and accessories available, making it a multi-purpose fixture.

  • Constant Current version, connects to an external PSU and driver (max 500 mA/36V)
  • 18W High-CRI White LED available in 2,700K, 3,000K, 4,000K, 5,600K versions, black and white housing
  • Multiple lens options: 19° / 26° / 36° / 50° profile or zoomable 15-30° or 25-50° wash optics

    • The EclMini is a range of ultra-compact, low-profile LED spotlights, designed for galleries, retail or any hospitality venue. There are several control options, sources, and optics available to fit any application.

    The EclMini CC connects to an external Constant Current PSU and driver (max 500mA/36V). PROLIGHTS accessories are available or, alternatively, the use any third-party compatible components is possible, leaving to system integrators to install these spotlights in venues with their own wiring distribution and control.

    The EclMini CC includes a high-efficiency 18W white, high CRI LED source, available in 2,700K, 3,000K, 4,000K, 5,600K variants, with a wide choice of optics and accessories available, making it a multi-purpose fixture.

    Features:
    Constant Current version, connects to an external PSU and driver (max 500 mA/36V)
    18W High-CRI White LED available in 2,700K, 3,000K, 4,000K, 5,600K versions, black and white housing
    Multiple lens options: 19° / 26° / 36° / 50° profile or zoomable 15-30° or 25-50° wash optics

    LIGHT SOURCE
    • Source:
      18
      W
      White COB LED
    • Source CCT:
      K
      see available versions
    • Luminous flux:
      (3.000K) (19°) 1.134 lm - (26°) 1.130 lm - (36°) 1.144 lm - (50°) 1.105
    • Luminous flux:
      (5.600K) (19°) 1.230 lm - (26°) 1.250 lm - (36°) 1.251 lm - (50°) 1.212 lm @full
    • Lux:
      (3.000K) (19°) 588 lx - (26°) 334 lx - (36°) 184 lx - (50°) 98
      lx
    • Lux:
      (5.600K) (19°) 632 lx - (26°) 363 lx - (36°) 193 lx - (50°) 105
      lx
    • CRI:
      93 @2.700 K; 92 @3.000 K; 89@4.000 K; 93 @5.600 K
    • R9:
      TBD
    • TLCI:
      84 @2.700 K; 87 @3.000 K; 89 @4.000 K; 95 @5.600 K
    • TM30 Rf:
      > 89 @2.700 K; 3.000 K; 4.000 K; > 93 @5.600 K
    • TM30 Rg:
      > 102 @2.700 K; 3.000 K; 4.000 K; 5.600 K
    • Source life expectancy:
      > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
    OPTICS
    • Optics:
      (profile lens - optional) 19°, 26°, 36°, 50° - gobo holder included
    • Zoom range:
      (wash lens - optional) 15° ~ 30° or 25° ~ 50
      °
    • Other:
      360° lens rotation - optional 360° rotating barndoors and gel frame holder
    • Other:
      (profile lens - optional) gobo holder size E, outer: 37,3 mm - image: 24 mm - thickness: 1,1 mm
    CONNECTIONS
    • Data connection:
      screw terminal blocks
    ELECTRICAL
    • Constant Current mains:
      max 500mA/36V
    • Max power consumption (230V):
      18
      W
    • Output (at 230V):
      40
      units on a single power line
    PHYSICAL
    • IP rating:
      IP20
    • Cooling:
      fan-free with natural convection
    • Housing:
      Die-cast aluminium
    • Finish:
      black (RAL 9004) or white (RAL 9003)
    • Operating temperature:
      Ta
      -10 to +45 °C (+14 to +113 °F)
    • Dimensions (WxHxD):
      103X170x103
      mm
    • Weight:
      1
      kg
    INSTALLATION
    • Suspension and fixing:
      track / hanging / ceiling installation
    • Hardware on-board:
      lockable tilt with screw
    • Other:
      1m cable included - Cable diameter range: 6 - 10 mm
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA, RCM, cTUVus, FCC
