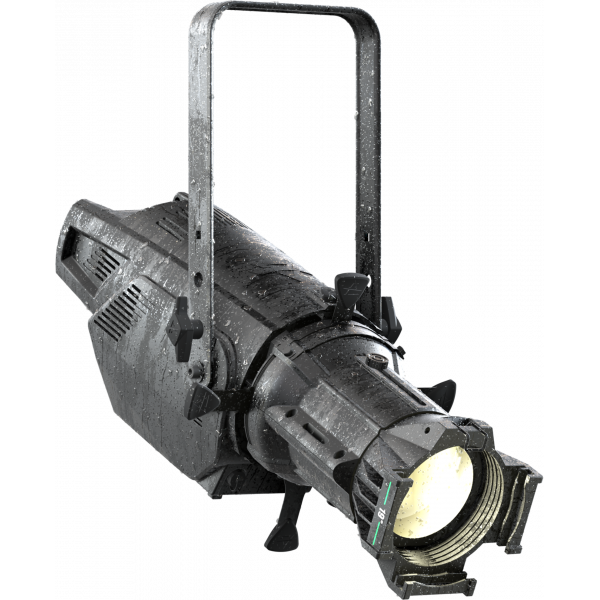

ECLFWIPTUBK
Ellipsoidals

ECLFWIPTUBK

(B size) 86 mm outer / 64.5 mm image / 1.1 mm thickness Size
2 / 3 / 4 / 5ch DMX Channels
Seetronic powerCON TRUE IP65 IN/OUT Power Consumption
10kg Weight

Experience the
ECLFWIPTUBK
Light Show

Source 91x3W high-power white LED
Source CCT (TU) 3.200 K - (DY) 5.600K
Luminous flux (TU) 5°: 6'662 - 10°: 8'005 - 14°: 7'283 lm -19°: 8'704 lm - 26°: 8'944 lm - 36°: 8'996 lm - 50°: 8'286 lm - 70°: 9'670 @Full
Luminous flux (DY) 5°: 7'231 - 10°: 8'828 - 14°: 8'061 lm -19°: 7'664 lm - 26°: 9'826 lm - 36°: 9'707 lm - 50°: 9'017 lm - 70°: 11'708 lm @full
Lux (TU) 5°: 30'529 - 10°: 14'813 - 14°: 7'197 lx - 19°: 4'218 lx - 26°: 2'459 lx - 36°: 1'323 lx - 50°: 680 lx - 70°: 419lx @5 m full
Lux (DY) 5°: 35'955 - 10°: 16'083 - 14°: 7'894 lx - 19°: 4'626 lx - 26°: 2'722 lx - 36°: 1'450 lx - 50°: 766 lx - 70°: 494lx @5 m full
CRI (TU) >98; (DY) >97
R9 (TU) >91; (DY) >97
TLCI (TU) >98; (DY) >98
TM30 Rf (TU) >94; (DY) >91
TM30 Rg (TU) >99; (DY) >99
Source life expectancy > 50.000 h
Beam angle optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / 90° zoom 15°-30° / zoom 25°-50°°
Lens type HD anti-reflection lenses with achromatic coating
Focus manual
Other see available accessories
Colour mixing static white
Static mode selection of static dimmer
Manual mode manual adjustment of dimmer and strobe
Auto mode built-in programs with execution speed adjustment
Special features HIGH mode, AUTO mode and SILENT mode fan management
Rotating gobos optional, see available accessories
Gobo size (B size) 86 mm outer / 64.5 mm image / 1.1 mm thickness
Supported Protocols DMX512, RDM
DMX channels 2 / 3 / 4 / 5ch
RDM for remote addressing and parameter configuration
Display Graphic User Interface
Master/Slave for synchronised operation of more units linked in a chain
Dimmer linear 0 - 100% electronic dimmer
Strobe / shutter 1 - 25 Hz, electronic
Selectable PWM 600 to 25000 Hz (selectable steps)
Firmware upgrade via DMX with UPBOXPRO/UPBOX2 (not included)
Power connection Seetronic powerCON TRUE IP65 IN/OUT
Signal connection Seetronic XLR 5p IN/OUT connectors
Mains power supply 100-240V - 50/60Hz
Max power consumption (230V) 264W
Output (at 230V) 10 units on a single power line
Standby power 10W
Power factor 0,97
IP rating IP65 for temporary outdoor use
Cooling low-noise fan
Housing Sturdy die-cast aluminium body
Finish black
Operating temperature Ta -10 to +45 °C (+14 to +113 °F)
Dimensions (WxHxD) 324x540x660mm
Weight 10kg
Suspension and fixing bracket for hanging and positioning
Compliance CE, RCM

No downloads available yet.

ECLFWIPTUBK

Explore Similar
Products

Ready to Transform Your Space?

SKU: ECLFWIPTUBK
CATEGORY: Ellipsoidals
BRAND: Prolights
DELIVERY For orders above AED 1,000
WARRANTY 2 years
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

EclProfile FWIP is the IP Full White version of the new generation of Ecl Profile LED ellipsoidals, and it is available in the TU (tungsten) and DY (daylight) source variants. The EclProfile FWIP has been engineered in the same housing and optical design of the colour mixing versions and for those users who require higher brightness and quality on a specific white point, offering a superior evenness and crisp focus of the new EclProfile range, or simply prefer to operate LED fixtures in a classical way. The LED source for both versions has been selected to achieve the finest quality of whites, having high scores of CRI, R9 and TM30 and being ideal for applications like corporate events, advertising, exhibitions, among others.

  • IP rated for exterior applications
  • Rotating gobo IP65 (optional)
  • 3.200 K (TU) and 5.600 K (DY) versions available
  • High lumen output and superior quality of whites (high CRI, TLCI, TM30)
  • Silent operation and compatible with industry standard accessories

    • EclProfile FWIP is the IP Full White version of the new generation of Ecl Profile LED ellipsoidals, and it is available in the TU (tungsten) and DY (daylight) source variants. The EclProfile FWIP has been engineered in the same housing and optical design of the colour mixing versions and for those users who require higher brightness and quality on a specific white point, offering a superior evenness and crisp focus of the new EclProfile range, or simply prefer to operate LED fixtures in a classical way. The LED source for both versions has been selected to achieve the finest quality of whites, having high scores of CRI, R9 and TM30 and being ideal for applications like corporate events, advertising, exhibitions, among others.

    Features:
    IP rated for exterior applications
    Rotating gobo IP65 (optional)
    3.200 K (TU) and 5.600 K (DY) versions available
    High lumen output and superior quality of whites (high CRI, TLCI, TM30)
    Silent operation and compatible with industry standard accessories

    LIGHT SOURCE
    • Source:
      91x3
      W
      high-power white LED
    • Source CCT:
      (TU) 3.200 K - (DY) 5.600
      K
    • Luminous flux:
      (TU) 5°: 6'662 - 10°: 8'005 - 14°: 7'283 lm -19°: 8'704 lm - 26°: 8'944 lm - 36°: 8'996 lm - 50°: 8'286 lm - 70°: 9'670
      @Full
    • Luminous flux:
      (DY) 5°: 7'231 - 10°: 8'828 - 14°: 8'061 lm -19°: 7'664 lm - 26°: 9'826 lm - 36°: 9'707 lm - 50°: 9'017 lm - 70°: 11'708 lm @full
    • Lux:
      (TU) 5°: 30'529 - 10°: 14'813 - 14°: 7'197 lx - 19°: 4'218 lx - 26°: 2'459 lx - 36°: 1'323 lx - 50°: 680 lx - 70°: 419
      lx
      @5 m full
    • Lux:
      (DY) 5°: 35'955 - 10°: 16'083 - 14°: 7'894 lx - 19°: 4'626 lx - 26°: 2'722 lx - 36°: 1'450 lx - 50°: 766 lx - 70°: 494
      lx
      @5 m full
    • CRI:
      (TU) >98; (DY) >97
    • R9:
      (TU) >91; (DY) >97
    • TLCI:
      (TU) >98; (DY) >98
    • TM30 Rf:
      (TU) >94; (DY) >91
    • TM30 Rg:
      (TU) >99; (DY) >99
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / 90° zoom 15°-30° / zoom 25°-50°
      °
    • Lens type:
      HD anti-reflection lenses with achromatic coating
    • Focus:
      manual
    • Other:
      see available accessories
    COLOUR SYSTEM
    • Colour mixing:
      static white
    DYNAMIC EFFECTS
    • Static mode:
      selection of static dimmer
    • Manual mode:
      manual adjustment of dimmer and strobe
    • Auto mode:
      built-in programs with execution speed adjustment
    • Special features:
      HIGH mode, AUTO mode and SILENT mode fan management
    GOBOS
    • Rotating gobos:
      optional, see available accessories
    • Gobo size:
      (B size) 86 mm outer / 64.5 mm image / 1.1 mm thickness
    CONTROL
    • Supported Protocols:
      DMX512, RDM
    • DMX channels:
      2 / 3 / 4 / 5
      ch
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      Graphic User Interface
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Strobe / shutter:
      1 - 25
      Hz, electronic
    • Selectable PWM:
      600 to 25000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX2 (not included)
    CONNECTIONS
    • Power connection:
      Seetronic powerCON TRUE IP65 IN/OUT
    • Signal connection:
      Seetronic XLR 5p IN/OUT connectors
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      264
      W
    • Output (at 230V):
      10
      units on a single power line
    • Standby power:
      10W
    • Power factor:
      0,97
    PHYSICAL
    • IP rating:
      IP65 for temporary outdoor use
    • Cooling:
      low-noise fan
    • Housing:
      Sturdy die-cast aluminium body
    • Finish:
      black
    • Operating temperature:
      Ta
      -10 to +45 °C (+14 to +113 °F)
    • Dimensions (WxHxD):
      324x540x660
      mm
    • Weight:
      10
      kg
    INSTALLATION
    • Suspension and fixing:
      bracket for hanging and positioning
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, RCM

    No reviews yet.

    Browse Related Categories

    More categories under Theatre, Film & Studio

    Cyclorama
    Soft Lighting
    Pars
    LED-Par
    Fresnel
    Soft-Panel
    Profile
    Follow Spot

    Waterproofed high quality Full White LED ellipsoidal available in Tungsten and Daylight versions

    EclProfile FWIP is the IP Full White version of the new generation of Ecl Profile LED ellipsoidals, and it is available in the TU (tungsten) and DY (daylight) source variants. The EclProfile FWIP has been engineered in the same housing and optical design of the colour mixing versions and for those users who require higher brightness and quality on a specific white point, offering a superior evenness and crisp focus of the new EclProfile range, or simply prefer to operate LED fixtures in a classical way. The LED source for both versions has been selected to achieve the finest quality of whites, having high scores of CRI, R9 and TM30 and being ideal for applications like corporate events, advertising, exhibitions, among others.

    Main features:

    • IP rated for exterior applications
    • Rotating gobo IP65 (optional)
    • 3.200 K (TU) and 5.600 K (DY) versions available
    • High lumen output and superior quality of whites (high CRI, TLCI, TM30)
    • Silent operation and compatible with industry standard accessories
