Profile
ECLFSBK
(B size) 86 mm outer / 64.5 mm image / 1.1 mm thickness
Size
1 / 2 / 3RGB / 4RGBL / 5RGBL / 3 / 4 / 5 / 8 / 13 ch - Tungsten / 3.200 K / 5.400 K / 6.500 Kch
DMX Channels
Neutrik powerCON TRUE1 IN/OUT connectors
Power Consumption
7,3kg
Weight
Experience the
ECLFSBK
Light Show
| Source | 91x3W RGB + Lime LEDs |
|---|---|
| Source CCT | @full 5.000K |
| Luminous flux | (5°) TBD; (10°) TBD; (14°) 4'619 lm; (19°) 5'133 lm; (26°) 6'100 lm; (36°) 5'970 lm; (50°) 5'596 lm; (70°) TBD @Full |
| Lux | (5°) TBD; (10°) TBD; (14°) 4'321 lx; (19°) 2'567 lx; (26°) 1'711 lx; (36°) 873 lx; (50°) 462 lx; (70°) TBDlx @5 m full |
| CRI | 86 @3.200 K; 85 @5.600 K |
| TLCI | 82 @5.600 K |
| TM30 Rf | 84 @3.200 K |
| TM30 Rg | 109 @3.200 K |
| Source life expectancy | > 50.000 h |
| Lens type | high-quality glass lens optics |
| Additional optics | optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / zoom 15°-30° / zoom 25°-50 |
| Focus | manual |
| Colour mixing | RGB + lime / full colour |
| CCT | CCT control through dedicated DMX channel |
| White presets | 2.700 K ~ 10.000K |
| Colour wheel | virtual colour wheel with macros |
| Static mode | selection of static colour |
| Manual mode | manual adjustment of colour |
| Auto mode | built-in programs with execution speed adjustment |
| Special features | different presets for fan mode and output management |
| Other | automatic software colour balance when fixture warms up - linear crossfade from a white to any color and virtual CTO app |
| Gobo size | (B size) 86 mm outer / 64.5 mm image / 1.1 mm thickness |
| Supported Protocols | DMX512, RDM |
| DMX channels | 1 / 2 / 3RGB / 4RGBL / 5RGBL / 3 / 4 / 5 / 8 / 13 ch - Tungsten / 3.200 K / 5.400 K / 6.500 Kch |
| RDM | for remote addressing and parameter configuration |
| Display | Graphic User Interface |
| Master/Slave | for synchronised operation of more units linked in a chain |
| Dimmer | linear 0 - 100% electronic dimmer |
| Strobe / shutter | 1 - 25 Hz, electronic |
| Display battery | included, self-charging battery backup |
| Selectable PWM | 600 to 25000 Hz (selectable steps) |
| Firmware upgrade | via DMX with UPBOXPRO/UPBOX2 (not included) |
| Power connection | Neutrik powerCON TRUE1 IN/OUT connectors |
| Signal connection | Amphenol XLR 5p IN/OUT connectors |
| Mains power supply | 100-240V - 50/60Hz |
| Max power consumption (230V) | 220W |
| Output (at 230V) | 10 units on a single power line |
| Standby power | 5 W |
| Power factor | > 0,95 |
| IP rating | IP20 |
| Cooling | low-noise fan |
| Housing | Sturdy die-cast aluminium body |
| Finish | black |
| Operating temperature | Ta -20 to +45 °C (-4 to +113 °F) |
| Dimensions (WxHxD) | 265x259x540mm |
| Weight | 7,3kg |
| Suspension and fixing | bracket for hanging and positioning |
| Compliance | CE, UKCA, RCM, cTUVus, FCC |
No downloads available yet.
Explore Similar
Products
Order Code
VPC180VCT-19
View Details
Order Code
VPC180RGBW-1528
View Details
Order Code
VPC200WW-26
View Details
Ready to Transform Your Space?
DELIVERY
For orders above AED 1,000
WARRANTY
2 years
SECURE PAYMENT
Safe encrypted checkup
EXPERT SUPPORT
Pre and post sale support

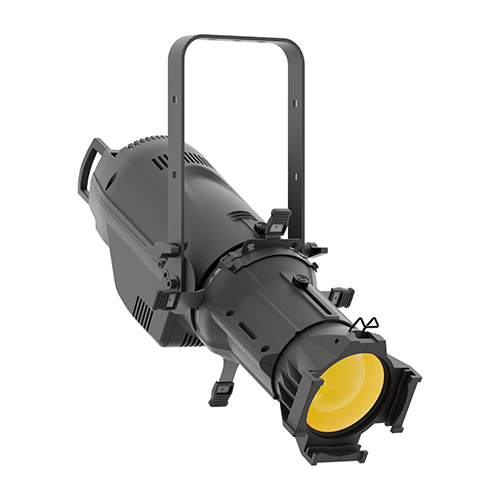

EclProfile FS is a full colour elipsoidal LED, designed to deliver a full range of pastels, saturates and whites, both with or without gobos. The EclProfile FS' RGB + Lime LED engine has been specially engineered to provide a full spectrum and full output in the most discerning environments, regardless of which role the EclProfile FS is playing.
EclProfile FS is a full colour elipsoidal LED, designed to deliver a full range of pastels, saturates and whites, both with or without gobos. The EclProfile FS' RGB + Lime LED engine has been specially engineered to provide a full spectrum and full output in the most discerning environments, regardless of which role the EclProfile FS is playing.
Features:RGB + Lime ellipsoidal LED with HD dimming and extensive colour palette
High definition optics for sharp focus and gobo projection
Accepts industry standard accessories
LIGHT SOURCE
- Source:91x3WRGB + Lime LEDs
- Source CCT:@full 5.000K
- Luminous flux:(5°) TBD; (10°) TBD; (14°) 4'619 lm; (19°) 5'133 lm; (26°) 6'100 lm; (36°) 5'970 lm; (50°) 5'596 lm; (70°) TBD@Full
- Lux:(5°) TBD; (10°) TBD; (14°) 4'321 lx; (19°) 2'567 lx; (26°) 1'711 lx; (36°) 873 lx; (50°) 462 lx; (70°) TBDlx@5 m full
- CRI:86 @3.200 K; 85 @5.600 K
- TLCI:82 @5.600 K
- TM30 Rf:84 @3.200 K
- TM30 Rg:109 @3.200 K
- Source life expectancy:> 50.000 h
OPTICS
- Lens type:high-quality glass lens optics
- Additional optics:optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / zoom 15°-30° / zoom 25°-50
- Focus:manual
COLOUR SYSTEM
- Colour mixing:RGB + lime / full colour
- CCT:CCT control through dedicated DMX channel
- White presets:2.700 K ~ 10.000K
- Colour wheel:virtual colour wheel with macros
DYNAMIC EFFECTS
- Static mode:selection of static colour
- Manual mode:manual adjustment of colour
- Auto mode:built-in programs with execution speed adjustment
- Special features:different presets for fan mode and output management
- Other:automatic software colour balance when fixture warms up - linear crossfade from a white to any color and virtual CTO app
GOBOS
- Gobo size:(B size) 86 mm outer / 64.5 mm image / 1.1 mm thickness
CONTROL
- Supported Protocols:DMX512, RDM
- DMX channels:1 / 2 / 3RGB / 4RGBL / 5RGBL / 3 / 4 / 5 / 8 / 13 ch - Tungsten / 3.200 K / 5.400 K / 6.500 Kch
- RDM:for remote addressing and parameter configuration
- Display:Graphic User Interface
- Master/Slave:for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer:linear 0 - 100% electronic dimmer
- Strobe / shutter:1 - 25Hz, electronic
- Display battery:included, self-charging battery backup
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX2 (not included)
CONNECTIONS
- Power connection:Neutrik powerCON TRUE1 IN/OUT connectors
- Signal connection:Amphenol XLR 5p IN/OUT connectors
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):220W
- Output (at 230V):10units on a single power line
- Standby power:5 W
- Power factor:> 0,95
PHYSICAL
- IP rating:IP20
- Cooling:low-noise fan
- Housing:Sturdy die-cast aluminium body
- Finish:black
- Operating temperature:Ta-20 to +45 °C (-4 to +113 °F)
- Dimensions (WxHxD):265x259x540mm
- Weight:7,3kg
INSTALLATION
- Suspension and fixing:bracket for hanging and positioning
CERTIFICATIONS / REPORTS
- Compliance:CE, UKCA, RCM, cTUVus, FCC
No reviews yet.
High power RGBL full spectrum ellipsoidal LED
EclProfile FS is a full colour elipsoidal LED, designed to deliver a full range of pastels, saturates and whites, both with or without gobos. The EclProfile FS' RGB + Lime LED engine has been specially engineered to provide a full spectrum and full output in the most discerning environments, regardless of which role the EclProfile FS is playing.
Main features:
- RGB + Lime ellipsoidal LED with HD dimming and extensive colour palette
- High definition optics for sharp focus and gobo projection
- Accepts industry standard accessories
