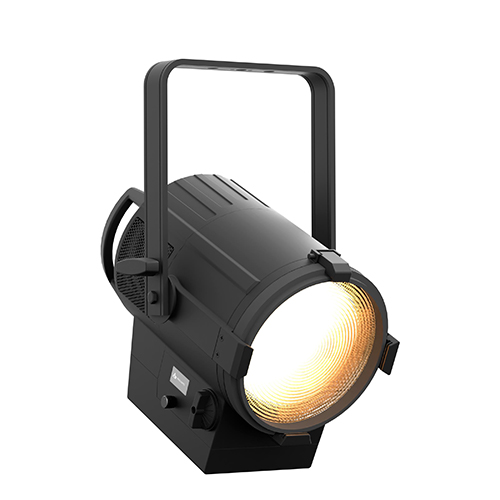

ECLFRESNELTU
Fresnel

ECLFRESNELTU

283x440x343mm Size
ch1: 1 / 2 - ch2: 2 / 3 / 5ch DMX Channels
Neutrik powerCON TRUE1 IN/OUT connectors Power Consumption
7,5kg Weight

Experience the
ECLFRESNELTU
Light Show

Source 230W high-power white LED
Source CCT (TU) 3.200 K - (DY) 5.600K
Luminous flux (TU) (17°) 10'842 lm (66°) 13'320 @Full
Luminous flux (DY) (17°) 12'546 lm (66°) 15'623 lm @full
Lux (TU) (17°) 3'728 lx - (66°) 1'019lx @5 m full
Lux (DY) (17°) 4'260 lx - (66°) 1'182lx @5 m full
CRI (TU) >98 - (DY) >95
R9 (TU) >90 - (DY) >90
TLCI (TU) >98; (DY) >95
TM30 Rf (TU) >92; (DY) >89
TM30 Rg (TU) >99; (DY) >98
Source life expectancy > 50.000 h
Zoom range 17° - 66° manual
Lens diameter 200mm
Lens type fresnel zoom lens
Other barndoor and gel frame included
Colour mixing white
Static mode selection of static dimmer
Manual mode manual adjust of dimmer throught menu and knob
Auto mode built-in programs with execution speed adjustment
Supported Protocols DMX512, RDM, rotatory knob
DMX channels ch1: 1 / 2 - ch2: 2 / 3 / 5ch
RDM for remote addressing and parameter configuration
Display Graphic User Interface
Master/Slave for synchronised operation of more units linked in a chain
Other 16bit control of dimmer
Pan (for pole operated version) 360° with manual regulation
Tilt (for pole operated version) 340° with manual adjustment
Dimmer linear 0 - 100%, manual knob dimmer
Dimmer curves selectable dimming modes available
Strobe / shutter 1 - 30 Hz, electronic
Selectable PWM 600 to 25000 Hz (selectable steps)
Firmware upgrade via DMX with UPBOXPRO/UPBOX1 (not included)
Power connection Neutrik powerCON TRUE1 IN/OUT connectors
Signal connection Amphenol XLR 5p IN/OUT connectors
Mains power supply 100-240V - 50/60Hz
Max power consumption (230V) 220W
Output (at 230V) 17 units on a single power line
Power factor 0,95
IP rating IP20
Cooling heat pipe with low-noise fan
Housing Sturdy die-cast aluminium body
Finish black (RAL 9004) or white (RAL 9010)
Operating temperature Ta -10 to +45 °C (+14 to +113 °F)
Dimensions (WxHxD) 283x440x343mm
Dimensions with PO system (WxHxD) 341x545x343mm
Weight 7,5kg
Weight with PO system 9,7kg
Suspension and fixing bracket for hanging and positioning
Hardware on-board included filter frame, 8 doors barndoor, spigot
Other Spigot 28 mm
Compliance CE, UKCA, RCM

No downloads available yet.

ECLFRESNELTU

Explore Similar
Products

VFR200WW-1555
Order Code VFR200WW-1555 View Details
VFR100WW-1555
Order Code VFR100WW-1555 View Details

Ready to Transform Your Space?

SKU: ECLFRESNELTU
CATEGORY: Fresnel
BRAND: Prolights
DELIVERY For orders above AED 1,000
WARRANTY 2 years
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

EclFresnel is the LED replacement for a standard tungsten 1.000W Fresnel. Featuring the output characteristics of a traditional Fresnel but with beam control, functional barn doors and a powerful source that focuses on outstanding colour rendition. The EclFresnel adds all the advantages of LED to the Fresnel.

  • TU (3.200 K) and DY (5.600 K) versions available both with HD dimming
  • Fresnel lens with 17° to 66° zoom range
  • Silent operation for studio and stage use

    • EclFresnel is the LED replacement for a standard tungsten 1.000W Fresnel. Featuring the output characteristics of a traditional Fresnel but with beam control, functional barn doors and a powerful source that focuses on outstanding colour rendition. The EclFresnel adds all the advantages of LED to the Fresnel.

    Features:
    TU (3.200 K) and DY (5.600 K) versions available both with HD dimming
    Fresnel lens with 17° to 66° zoom range
    Silent operation for studio and stage use

    LIGHT SOURCE
    • Source:
      230
      W
      high-power white LED
    • Source CCT:
      (TU) 3.200 K - (DY) 5.600
      K
    • Luminous flux:
      (TU) (17°) 10'842 lm (66°) 13'320
      @Full
    • Luminous flux:
      (DY) (17°) 12'546 lm (66°) 15'623 lm @full
    • Lux:
      (TU) (17°) 3'728 lx - (66°) 1'019
      lx
      @5 m full
    • Lux:
      (DY) (17°) 4'260 lx - (66°) 1'182
      lx
      @5 m full
    • CRI:
      (TU) >98 - (DY) >95
    • R9:
      (TU) >90 - (DY) >90
    • TLCI:
      (TU) >98; (DY) >95
    • TM30 Rf:
      (TU) >92; (DY) >89
    • TM30 Rg:
      (TU) >99; (DY) >98
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Zoom range:
      17° - 66
      °
      manual
    • Lens diameter:
      200
      mm
    • Lens type:
      fresnel zoom lens
    • Other:
      barndoor and gel frame included
    COLOUR SYSTEM
    • Colour mixing:
      white
    DYNAMIC EFFECTS
    • Static mode:
      selection of static dimmer
    • Manual mode:
      manual adjust of dimmer throught menu and knob
    • Auto mode:
      built-in programs with execution speed adjustment
    CONTROL
    • Supported Protocols:
      DMX512, RDM, rotatory knob
    • DMX channels:
      ch1: 1 / 2 - ch2: 2 / 3 / 5
      ch
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      Graphic User Interface
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    • Other:
      16bit control of dimmer
    MOVEMENT
    • Pan:
      (for pole operated version) 360
      °
      with manual regulation
    • Tilt:
      (for pole operated version) 340
      °
      with manual adjustment
    ELECTRONICS
    • Dimmer:
      linear 0 - 100%, manual knob dimmer
    • Dimmer curves:
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Selectable PWM:
      600 to 25000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX1 (not included)
    CONNECTIONS
    • Power connection:
      Neutrik powerCON TRUE1 IN/OUT connectors
    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      220
      W
    • Output (at 230V):
      17
      units on a single power line
    • Power factor:
      0,95
    PHYSICAL
    • IP rating:
      IP20
    • Cooling:
      heat pipe with low-noise fan
    • Housing:
      Sturdy die-cast aluminium body
    • Finish:
      black (RAL 9004) or white (RAL 9010)
    • Operating temperature:
      Ta
      -10 to +45 °C (+14 to +113 °F)
    • Dimensions (WxHxD):
      283x440x343
      mm
    • Dimensions with PO system (WxHxD):
      341x545x343
      mm
    • Weight:
      7,5
      kg
    • Weight with PO system:
      9,7
      kg
    INSTALLATION
    • Suspension and fixing:
      bracket for hanging and positioning
    • Hardware on-board:
      included
      filter frame, 8 doors barndoor, spigot
    • Other:
      Spigot 28 mm
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA, RCM

    No reviews yet.

    Browse Related Categories

    More categories under Theatre, Film & Studio

    Cyclorama
    Soft Lighting
    Pars
    Ellipsoidals
    LED-Par
    Soft-Panel
    Profile
    Follow Spot

    LED Fresnel with HB white source, to replace 1.000W lamp

    EclFresnel is the LED replacement for a standard tungsten 1.000W Fresnel. Featuring the output characteristics of a traditional Fresnel but with beam control, functional barn doors and a powerful source that focuses on outstanding colour rendition. The EclFresnel adds all the advantages of LED to the Fresnel.

    Main features:

    • TU (3.200 K) and DY (5.600 K) versions available both with HD dimming
    • Fresnel lens with 17° to 42° zoom range
    • Silent operation for studio and stage use
