ECLFR2KVWBK
Fresnel

ECLFR2KVWBK

421x537x456mm Size
1 / 2 / 4 / 5 / 11ch DMX Channels
Neutrik powerCON TRUE1 IN/OUT connectors Power Consumption
17,2kg Weight

Experience the
ECLFR2KVWBK
Light Show

Source 500W Variable White LED
Source CCT 2.700 K - 5.600K
Luminous flux (15°) 12'196 lm - (79,5°) 19'711 @Full
Lux (15°) 6'782 lx - (79,5°) 1'118lx @5 m full
CRI 94 @WW; 96 @CW; 92 @full
R9 90 @WW; 88 @CW; 73 @full
TLCI 97 @WW; 99 @CW; 98 @full
TM30 Rf >94 @WW; >94 @CW; >93 @full
TM30 Rg <103 @WW; <103 @CW; <104 @full
Source life expectancy > 50.000 h
Zoom range 15° - 79,5° manual
Lens diameter 250mm
Lens type fresnel zoom lens
Colour mixing tunable white
CCT CCT control through dedicated DMX channel
White presets 2.700 K - 5.600K
Colour wheel built-in white presets
Control Resolution 16-bit dimmer control
Static mode selection of static dimmer and color temperature
Manual mode manual adjustment of intensity and CT from knob
Auto mode built-in programs with execution speed adjustment
Supported Protocols DMX512, RDM
DMX channels 1 / 2 / 4 / 5 / 11ch
RDM for remote addressing and parameter configuration
Display Graphic User Interface
Stand Alone 3 rotatory knobs
Pan (for pole operated version) 360° with manual regulation
Tilt (for pole operated version) 180° with manual adjustment
Dimmer linear 0 - 100% electronic dimmer
Dimmer curves 4 selectable dimming modes available
Strobe / shutter 1 - 30 Hz, electronic
Selectable PWM 600 to 25000 Hz (selectable steps)
Firmware upgrade via DMX with UPBOXPRO/UPBOX1 (not included)
Power connection Neutrik powerCON TRUE1 IN/OUT connectors
Signal connection Amphenol XLR 5p IN/OUT connectors
Mains power supply 100-240V - 50/60Hz
Max power consumption (230V) 450W
Output (at 230V) 5 units on a single power line
Power factor > 0,95
IP rating IP20
Cooling heat pipe with low-noise fan
Housing Sturdy die-cast aluminium body
Finish black (RAL 9004) or white (RAL 9010)
Operating temperature Ta -20 to +45 °C (-4 to +113 °F)
Dimensions (WxHxD) 421x537x456mm
Dimensions with PO system (WxHxD) 401x576x456mm
Weight 17,2kg
Weight with PO system 18kg
Suspension and fixing bracket for hanging and positioning
Hardware on-board filter frame, 8 doors barndoor, spigot
Compliance CE, UKCA, RCM

No downloads available yet.

ECLFR2KVWBK

Explore Similar
Products

VFR200WW-1555
Order Code VFR200WW-1555 View Details
VFR100WW-1555
Order Code VFR100WW-1555 View Details

Ready to Transform Your Space?

SKU: ECLFR2KVWBK
CATEGORY: Fresnel
BRAND: Prolights
DELIVERY For orders above AED 1,000
WARRANTY 2 years
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

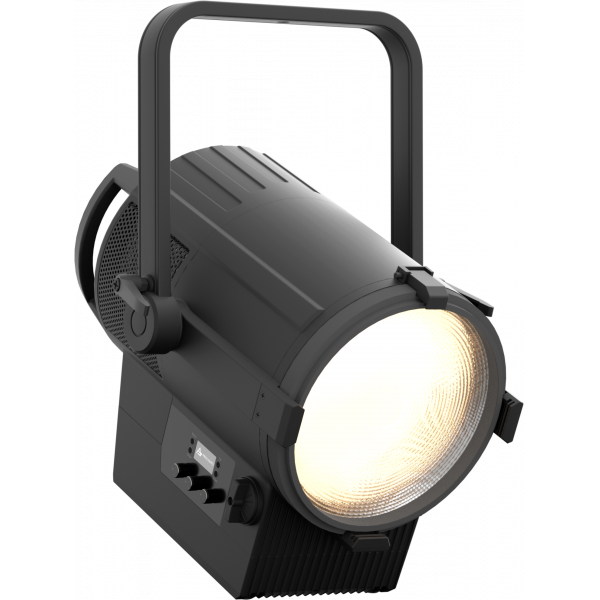

The EclFresnel 2KVW is a powerful LED Fresnel lamp, designed as a replacement for a 2,000W fixture, with a bright and high-quality variable-white light, from 2,700K to 5,600K, using a 500W LED source.

This is the perfect luminaire for those applications requiring high-quality white rendering, such as in TV studios, galleries, and virtual productions, with high CRI (>96), TLCI (>96), TM-30 and R9.

The EclFresnel 2KVW has a manual zoom range from 15° to 79,5°, with precise focusing, and an 8-leaf barndoor (included).

This fixture has an intuitive user interface with rotatory knobs. It also has stand-alone settings, PowerCon True in & through connections and XLR in & through, offering an incredible user experience and easy setup.

  • Linear white CCT, from 2,700K to 5,600K
  • 500W Variable White LED with CRI >96; TLCI >96; high TM-30 and R9
  • Barndoor, 28 mm spigot and filter frame included

    • The EclFresnel 2KVW is a powerful LED Fresnel lamp, designed as a replacement for a 2,000W fixture, with a bright and high-quality variable-white light, from 2,700K to 5,600K, using a 500W LED source.

    This is the perfect luminaire for those applications requiring high-quality white rendering, such as in TV studios, galleries, and virtual productions, with high CRI (>96), TLCI (>96), TM-30 and R9.

    The EclFresnel 2KVW has a manual zoom range from 15° to 79,5°, with precise focusing, and an 8-leaf barndoor (included).

    This fixture has an intuitive user interface with rotatory knobs. It also has stand-alone settings, PowerCon True in & through connections and XLR in & through, offering an incredible user experience and easy setup.

    Features:
    Linear white CCT, from 2,700K to 5,600K
    500W Variable White LED with CRI >96; TLCI >96; high TM-30 and R9
    Barndoor, 28 mm spigot and filter frame included

    LIGHT SOURCE
    • Source:
      500
      W
      Variable White LED
    • Source CCT:
      2.700 K - 5.600
      K
    • Luminous flux:
      (15°) 12'196 lm - (79,5°) 19'711
      @Full
    • Lux:
      (15°) 6'782 lx - (79,5°) 1'118
      lx
      @5 m full
    • CRI:
      94 @WW; 96 @CW; 92 @full
    • R9:
      90 @WW; 88 @CW; 73 @full
    • TLCI:
      97 @WW; 99 @CW; 98 @full
    • TM30 Rf:
      >94 @WW; >94 @CW; >93 @full
    • TM30 Rg:
      <103 @WW; <103 @CW; <104 @full
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Zoom range:
      15° - 79,5
      °
      manual
    • Lens diameter:
      250
      mm
    • Lens type:
      fresnel zoom lens
    COLOUR SYSTEM
    • Colour mixing:
      tunable white
    • CCT:
      CCT control through dedicated DMX channel
    • White presets:
      2.700 K - 5.600
      K
    • Colour wheel:
      built-in white presets
    DYNAMIC EFFECTS
    • Control Resolution:
      16-bit dimmer control
    • Static mode:
      selection of static dimmer and color temperature
    • Manual mode:
      manual adjustment of intensity and CT from knob
    • Auto mode:
      built-in programs with execution speed adjustment
    CONTROL
    • Supported Protocols:
      DMX512, RDM
    • DMX channels:
      1 / 2 / 4 / 5 / 11
      ch
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      Graphic User Interface
    • Stand Alone:
      3
      rotatory knobs
    MOVEMENT
    • Pan:
      (for pole operated version) 360
      °
      with manual regulation
    • Tilt:
      (for pole operated version) 180
      °
      with manual adjustment
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Selectable PWM:
      600 to 25000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX1 (not included)
    CONNECTIONS
    • Power connection:
      Neutrik powerCON TRUE1 IN/OUT connectors
    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      450
      W
    • Output (at 230V):
      5
      units on a single power line
    • Power factor:
      > 0,95
    PHYSICAL
    • IP rating:
      IP20
    • Cooling:
      heat pipe with low-noise fan
    • Housing:
      Sturdy die-cast aluminium body
    • Finish:
      black (RAL 9004) or white (RAL 9010)
    • Operating temperature:
      Ta
      -20 to +45 °C (-4 to +113 °F)
    • Dimensions (WxHxD):
      421x537x456
      mm
    • Dimensions with PO system (WxHxD):
      401x576x456
      mm
    • Weight:
      17,2
      kg
    • Weight with PO system:
      18
      kg
    INSTALLATION
    • Suspension and fixing:
      bracket for hanging and positioning
    • Hardware on-board:
      filter frame, 8 doors barndoor, spigot
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA, RCM

    No reviews yet.

    Browse Related Categories

    More categories under Theatre, Film & Studio

    Cyclorama
    Soft Lighting
    Pars
    Ellipsoidals
    LED-Par
    Soft-Panel
    Profile
    Follow Spot

    500W Variable White LED Fresnel (2,700K - 5,600K), with manual zoom 15° - 79,5°

    The EclFresnel 2KVW is a powerful LED Fresnel lamp, designed as a replacement for a 2,000W fixture, with a bright and high-quality variable-white light, from 2,700K to 5,600K, using a 500W LED source. This is the perfect luminaire for those applications requiring high-quality white rendering, such as in TV studios, galleries, and virtual productions, with high CRI (>96), TLCI (>96), TM-30 and R9. The EclFresnel 2KVW has a manual zoom range from 15° to 79,5°, with precise focusing, and an 8-leaf barndoor (included). This fixture has an intuitive user interface with rotatory knobs. It also has stand-alone settings, PowerCon True in & through connections and XLR in & through, offering an incredible user experience and easy setup.

    Main features:

    • Linear white CCT, from 2,700K to 5,600K
    • 500W Variable White LED with CRI >96; TLCI >96; high TM-30 and R9
    • Barndoor, 28 mm spigot and filter frame included
