ECLFR2KTU
Fresnel

ECLFR2KTU

421x537x456mm Size
1 / 2 - 1 / 2 - 2 / 3 / 5ch DMX Channels
Neutrik powerCON TRUE1 IN/OUT connectors Power Consumption
17,2kg Weight

Experience the
ECLFR2KTU
Light Show

Source 500W high-power white LED
Source CCT (TU) 3.200 K - (DY) 5.600K
Luminous flux (TU) (16°) 20'256 lm; (64°) 26'126 @Full
Luminous flux (DY) (16°) 26'255 lm; (64°) 32'428 lm @ full
Lux (TU) (16°) 9'047 lx - (64°) 1'770lx @5 m full
Lux (DY) (16°) 11'975 lx - (64°) 2'306lx @5 m full
CRI (TU) >94; (DY) >91
R9 (TU) >73; (DY) >80
TLCI (TU) >93; (DY) >93
TM30 Rf (TU) >92; (DY) >88
TM30 Rg (TU) <103; (DY) <104
Source life expectancy > 50.000 h
Zoom range 16° - 64° manual
Lens diameter 250mm
Lens type Fresnel zoom lens
Other spigot, barndoor and gel frame included
Macros several pre-built macros with adjustable speed
Static mode selection of static dimmer
Manual mode manual adjust of dimmer throught menu and knob
Auto mode built-in programs with execution speed adjustment
Supported Protocols DMX512, RDM, rotatory knob
DMX channels 1 / 2 - 1 / 2 - 2 / 3 / 5ch
RDM for remote addressing and parameter configuration
Display Graphic User Interface
Master/Slave for synchronised operation of more units linked in a chain
Other 16bit control of dimmer
Pan (for pole operated version) 360° with manual regulation
Tilt (for pole operated version) 180° with manual adjustment
Dimmer linear 0 - 100% electronic dimmer
Dimmer curves selectable dimming modes available
Strobe / shutter 1 - 30 Hz, electronic
Selectable PWM 600 to 25000 Hz (selectable steps)
Firmware upgrade via DMX with UPBOXPRO/UPBOX1 (not included)
Power connection Neutrik powerCON TRUE1 IN/OUT connectors
Signal connection Amphenol XLR 5p IN/OUT connectors
Mains power supply 100-240V - 50/60Hz
Max power consumption (230V) 500W
Output (at 230V) 5 units on a single power line
Power factor >0,96
IP rating IP20
Cooling heat pipe with low-noise fan
Housing Sturdy die-cast aluminium body
Finish black (RAL 9004) or white (RAL 9010)
Operating temperature Ta -10 to +45 °C (+14 to +113 °F)
Dimensions (WxHxD) 421x537x456mm
Dimensions with PO system (WxHxD) 401x691x456mm
Weight 17,2kg
Weight with PO system 18kg
Suspension and fixing bracket for hanging and positioning
Hardware on-board filter frame, 8 doors barndoor, spigot
Other Spigot 28 mm
Compliance CE, UKCA, RCM

No downloads available yet.

ECLFR2KTU

Explore Similar
Products

VFR200WW-1555
Order Code VFR200WW-1555 View Details
VFR100WW-1555
Order Code VFR100WW-1555 View Details

Ready to Transform Your Space?

SKU: ECLFR2KTU
CATEGORY: Fresnel
BRAND: Prolights
DELIVERY For orders above AED 1,000
WARRANTY 2 years
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

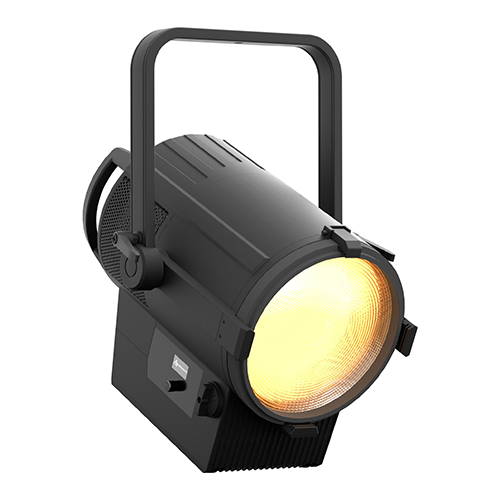

EclFresnel 2K is the LED replacement for a standard tungsten 2.000W Fresnel. Featuring the output characteristics of a traditional Fresnel but with beam control, functional barn doors and a power source that focuses on outstanding colour rendition. The EclFresnel 2K adds all the advantages of LED to the Fresnel.

  • TU (3.200 K) and DY (5.600 K) versions available both with HD dimming
  • Fresnel lens with 16° to 64° zoom range
  • Silent operation for studio and stage use

    • EclFresnel 2K is the LED replacement for a standard tungsten 2.000W Fresnel. Featuring the output characteristics of a traditional Fresnel but with beam control, functional barn doors and a power source that focuses on outstanding colour rendition. The EclFresnel 2K adds all the advantages of LED to the Fresnel.

    Features:
    TU (3.200 K) and DY (5.600 K) versions available both with HD dimming
    Fresnel lens with 16° to 64° zoom range
    Silent operation for studio and stage use

    LIGHT SOURCE
    • Source:
      500
      W
      high-power white LED
    • Source CCT:
      (TU) 3.200 K - (DY) 5.600
      K
    • Luminous flux:
      (TU) (16°) 20'256 lm; (64°) 26'126
      @Full
    • Luminous flux:
      (DY) (16°) 26'255 lm; (64°) 32'428 lm @ full
    • Lux:
      (TU) (16°) 9'047 lx - (64°) 1'770
      lx
      @5 m full
    • Lux:
      (DY) (16°) 11'975 lx - (64°) 2'306
      lx
      @5 m full
    • CRI:
      (TU) >94; (DY) >91
    • R9:
      (TU) >73; (DY) >80
    • TLCI:
      (TU) >93; (DY) >93
    • TM30 Rf:
      (TU) >92; (DY) >88
    • TM30 Rg:
      (TU) <103; (DY) <104
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Zoom range:
      16° - 64
      °
      manual
    • Lens diameter:
      250
      mm
    • Lens type:
      Fresnel zoom lens
    • Other:
      spigot, barndoor and gel frame included
    COLOUR SYSTEM
    • Macros:
      several pre-built macros with adjustable speed
    DYNAMIC EFFECTS
    • Static mode:
      selection of static dimmer
    • Manual mode:
      manual adjust of dimmer throught menu and knob
    • Auto mode:
      built-in programs with execution speed adjustment
    CONTROL
    • Supported Protocols:
      DMX512, RDM, rotatory knob
    • DMX channels:
      1 / 2 - 1 / 2 - 2 / 3 / 5
      ch
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      Graphic User Interface
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    • Other:
      16bit control of dimmer
    MOVEMENT
    • Pan:
      (for pole operated version) 360
      °
      with manual regulation
    • Tilt:
      (for pole operated version) 180
      °
      with manual adjustment
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Dimmer curves:
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Selectable PWM:
      600 to 25000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX1 (not included)
    CONNECTIONS
    • Power connection:
      Neutrik powerCON TRUE1 IN/OUT connectors
    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      500
      W
    • Output (at 230V):
      5
      units on a single power line
    • Power factor:
      >0,96
    PHYSICAL
    • IP rating:
      IP20
    • Cooling:
      heat pipe with low-noise fan
    • Housing:
      Sturdy die-cast aluminium body
    • Finish:
      black (RAL 9004) or white (RAL 9010)
    • Operating temperature:
      Ta
      -10 to +45 °C (+14 to +113 °F)
    • Dimensions (WxHxD):
      421x537x456
      mm
    • Dimensions with PO system (WxHxD):
      401x691x456
      mm
    • Weight:
      17,2
      kg
    • Weight with PO system:
      18
      kg
    INSTALLATION
    • Suspension and fixing:
      bracket for hanging and positioning
    • Hardware on-board:
      filter frame, 8 doors barndoor, spigot
    • Other:
      Spigot 28 mm
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA, RCM

    No reviews yet.

    Browse Related Categories

    More categories under Theatre, Film & Studio

    Cyclorama
    Soft Lighting
    Pars
    Ellipsoidals
    LED-Par
    Soft-Panel
    Profile
    Follow Spot

    LED Fresnel with HB white source, to replace 2.000W lamp

    EclFresnel 2K is the LED replacement for a standard tungsten 2.000W Fresnel. Featuring the output characteristics of a traditional Fresnel but with beam control, functional barn doors and a power source that focuses on outstanding colour rendition. The EclFresnel 2K adds all the advantages of LED to the Fresnel.

    Main features:

    • TU (3.200 K) and DY (5.600 K) versions available both with HD dimming
    • Fresnel lens with 15° to 47° zoom range
    • Silent operation for studio and stage use
