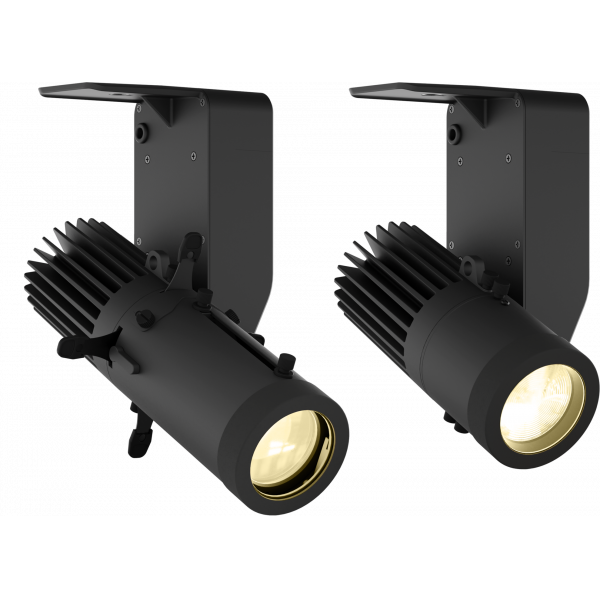

Gallery Lights
ECLDISPLAYDATVWB
141X200x150mm
Size
1 / 2 / 3 / 4ch
DMX Channels
screw terminal blocks
Power Consumption
1,5kg
Weight
Experience the
ECLDISPLAYDATVWB
Light Show
| Multiple lens options | profile (zoom and static) or wash optics |
|---|---|
| Source | 35W Variable White LED |
| Source CCT | 2700K to 5600KK |
| Luminous flux | 2700K: (profile - 8°) 461 lm - (profile - 18° HD) 525 lm - (profile - 36° HD) 582 lm - (profile - 50° HD) 573 lm - (profile - 10°-20°) 838 lm @20° - (profile - 20°-40°) 833 lm @40° - (wash 25°-50°) 866 lm @50° - (wash 15°-30°) 802 lm @30° |
| Luminous flux | 5600K: (profile - 8°) 641 lm - (profile - 18° HD) 1'180 lm - (profile - 36° HD) 1'242 lm - (profile - 50° HD) 1'225 lm - (profile - 10°-20°) 1'168 lm @20° - (profile - 20°-40°) 1'153 lm @40° - (wash 25°-50°) 1'183 lm @50° - (wash 15°-30°) 1'122 lm @30° |
| Lux | 2700K: (profile - 8°) 1'334 lx - (profile - 18° HD) 338 lx - (profile - 36° HD) 110 lx - (profile - 50° HD) 48 lx - (profile - 10°-20°) 1'344 lx @10°; 426 lx @20° - (profile - 20°-40°) 347 lx @20°; 91 lx @40° - (wash 25°-50°) 134 lx @25°; 49 lx @50° - (walx @5 m |
| Lux | 5600K: (profile - 8°) 1'807 lx - (profile - 18° HD) 738 lx - (profile - 36° HD) 232 lx - (profile - 50° HD) 100 lx - (profile - 10°-20°) 1'765 lx @10°; 529 lx @20° - (profile - 20°-40°) 587 lx @20°; 128 lx @40° - (wash 25°-50°) 186 lx @25°; 69 lx @50° - (lx @5 m |
| CRI | 2700K: >96; 5600K: >96 |
| R9 | 2700K: >87; 5600K: >90 |
| TLCI | 2700K: >96; 5600K: >97 |
| TM30 Rf | 2700K: >96; 5600K: >92 |
| TM30 Rg | 2700K: <101; 5600K: <99 |
| Source life expectancy | > 50.000 hrs (L70B10 @Ta 25° C / 77° F) |
| Zoom range | (wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or fix 8°, 18°, 36°, 50° |
| Other | 360° lens rotation - shutter blades lockable - optional 360° rotating barndoors and gel frame holder |
| Other | (profile lens) shutter blades lockable |
| Other | (profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm |
| Colour mixing | warm white + cold white - tunable white |
| CCT | linear CCT control |
| Control Resolution | 16-bit dimmer control |
| Static mode | selection of static dimmer |
| Manual mode | manual adjustment of dimmer and strobe |
| Auto mode | built-in programs with execution speed adjustment |
| Supported Protocols | Local Knob, DMX, DALI Type6, RDM |
| DMX channels | 1 / 2 / 3 / 4ch |
| RDM | for remote addressing and parameter configuration |
| Display | user interface through DATAMASTER external coder (not included) |
| Dimmer | linear 0 - 100% electronic dimmer |
| Dimmer curves | 4 selectable dimming modes available |
| Strobe / shutter | 1 - 30 Hz, electronic |
| Selectable PWM | 600 to 25000 Hz (selectable steps) |
| Firmware upgrade | via DMX with UPBOXPRO/UPBOX1 (not included) |
| Power connection | screw terminal blocks |
| Data connection | screw terminal blocks |
| Mains power supply | 100-240V - 50/60Hz |
| Max power consumption (230V) | 33W |
| Output (at 230V) | 40 units on a single power line |
| Power factor | > 0,93 |
| IP rating | IP20 |
| Cooling | fan-free with natural convection |
| Housing | Die-cast aluminium |
| Finish | black (RAL 9004) or white (RAL 9010) |
| Operating temperature | Ta -10 to +45 °C (+14 to +113 °F) |
| Dimensions (WxHxD) | 141X200x150mm |
| Weight | 1,5kg |
| Suspension and fixing | track / hanging / ceiling installation |
| Hardware on-board | lockable tilt with screw |
| Other | cable not included - Cable diameter range: 6 - 10 mm |
| Compliance | CE, UKCA, RCM, cTUVus, FCC |
No downloads available yet.
Explore Similar
Products
Ready to Transform Your Space?
DELIVERY
For orders above AED 1,000
WARRANTY
2 years
SECURE PAYMENT
Safe encrypted checkup
EXPERT SUPPORT
Pre and post sale support
The EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, commercials and any public venue where an advanced but classy fixture, with several control options, sources and optic versions available to precisely meet any application. The EclDisplay DATVW can be set and addressed through RDM, and includes a broad set of on-board input control options: DMX, DALI Type 6 or local knob dimming control. The EclDisplay DATVW includes a high-efficiency 35W tunable white, high CRI LED source, with a CCT range from 2,700K to 5,600K, and it is completed with a wide selection of optional profile (zoom and static) or wash lenses, and other optical accessories like louvres and snoots, making it truly a multi-purpose fixture.
The EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, commercials and any public venue where an advanced but classy fixture, with several control options, sources and optic versions available to precisely meet any application. The EclDisplay DATVW can be set and addressed through RDM, and includes a broad set of on-board input control options: DMX, DALI Type 6 or local knob dimming control. The EclDisplay DATVW includes a high-efficiency 35W tunable white, high CRI LED source, with a CCT range from 2,700K to 5,600K, and it is completed with a wide selection of optional profile (zoom and static) or wash lenses, and other optical accessories like louvres and snoots, making it truly a multi-purpose fixture.
Features:Data control through RDM, DMX, DALI Type 6 and local knob dimming
35W high CRI tunable white LED, from 2,700K to 5,600K, in black and white housing
Multiple lens options: profile (zoom and static) or wash optics
LIGHT SOURCE
- Source:35WVariable White LED
- Source CCT:2700K to 5600KK
- Luminous flux:2700K: (profile - 8°) 461 lm - (profile - 18° HD) 525 lm - (profile - 36° HD) 582 lm - (profile - 50° HD) 573 lm - (profile - 10°-20°) 838 lm @20° - (profile - 20°-40°) 833 lm @40° - (wash 25°-50°) 866 lm @50° - (wash 15°-30°) 802 lm @30°
- Luminous flux:5600K: (profile - 8°) 641 lm - (profile - 18° HD) 1'180 lm - (profile - 36° HD) 1'242 lm - (profile - 50° HD) 1'225 lm - (profile - 10°-20°) 1'168 lm @20° - (profile - 20°-40°) 1'153 lm @40° - (wash 25°-50°) 1'183 lm @50° - (wash 15°-30°) 1'122 lm @30°
- Lux:2700K: (profile - 8°) 1'334 lx - (profile - 18° HD) 338 lx - (profile - 36° HD) 110 lx - (profile - 50° HD) 48 lx - (profile - 10°-20°) 1'344 lx @10°; 426 lx @20° - (profile - 20°-40°) 347 lx @20°; 91 lx @40° - (wash 25°-50°) 134 lx @25°; 49 lx @50° - (walx@5 m
- Lux:5600K: (profile - 8°) 1'807 lx - (profile - 18° HD) 738 lx - (profile - 36° HD) 232 lx - (profile - 50° HD) 100 lx - (profile - 10°-20°) 1'765 lx @10°; 529 lx @20° - (profile - 20°-40°) 587 lx @20°; 128 lx @40° - (wash 25°-50°) 186 lx @25°; 69 lx @50° - (lx@5 m
- CRI:2700K: >96; 5600K: >96
- R9:2700K: >87; 5600K: >90
- TLCI:2700K: >96; 5600K: >97
- TM30 Rf:2700K: >96; 5600K: >92
- TM30 Rg:2700K: <101; 5600K: <99
- Source life expectancy:> 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
- Zoom range:(wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or fix 8°, 18°, 36°, 50°
- Other:360° lens rotation - shutter blades lockable - optional 360° rotating barndoors and gel frame holder
- Other:(profile lens) shutter blades lockable
- Other:(profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm
COLOUR SYSTEM
- Colour mixing:warm white + cold white -tunable white
- CCT:linear CCT control
DYNAMIC EFFECTS
- Control Resolution:16-bit dimmer control
- Static mode:selection of static dimmer
- Manual mode:manual adjustment of dimmer and strobe
- Auto mode:built-in programs with execution speed adjustment
CONTROL
- Supported Protocols:Local Knob, DMX, DALI Type6, RDM
- DMX channels:1 / 2 / 3 / 4ch
- RDM:for remote addressing and parameter configuration
- Display:user interface through DATAMASTER external coder (not included)
ELECTRONICS
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 30Hz, electronic
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
- Power connection:screw terminal blocks
- Data connection:screw terminal blocks
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):33W
- Output (at 230V):40units on a single power line
- Power factor:> 0,93
PHYSICAL
- IP rating:IP20
- Cooling:fan-free with natural convection
- Housing:Die-cast aluminium
- Finish:black (RAL 9004) or white (RAL 9010)
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):141X200x150mm
- Weight:1,5kg
INSTALLATION
- Suspension and fixing:track / hanging / ceiling installation
- Hardware on-board:lockable tilt with screw
- Other:cable not included - Cable diameter range: 6 - 10 mm
CERTIFICATIONS / REPORTS
- Compliance:CE, UKCA, RCM, cTUVus, FCC
No reviews yet.
35W variable white LED Gallery light, with data control (DMX, Dali T6, knob-dimming)
The EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, commercials and any public venue where an advanced but classy fixture, with several control options, sources and optic versions available to precisely meet any application. The EclDisplay DATVW can be set and addressed through RDM, and includes a broad set of on-board input control options: DMX, DALI Type 6 or local knob dimming control. The EclDisplay DATVW includes a high-efficiency 33W tunable white, high CRI LED source, with a CCT range from 2,700K to 5,600K, and it is completed with a wide selection of optional profile (zoom and static) or wash lenses, and other optical accessories like louvres and snoots, making it truly a multi-purpose fixture.
Main features:
- Data control through RDM, DMX, DALI Type 6 and local knob dimming
- 35W high CRI tunable white LED, from 2,700K to 5,600K, in black and white housing
- Multiple lens options: profile (zoom and static) or wash optics
