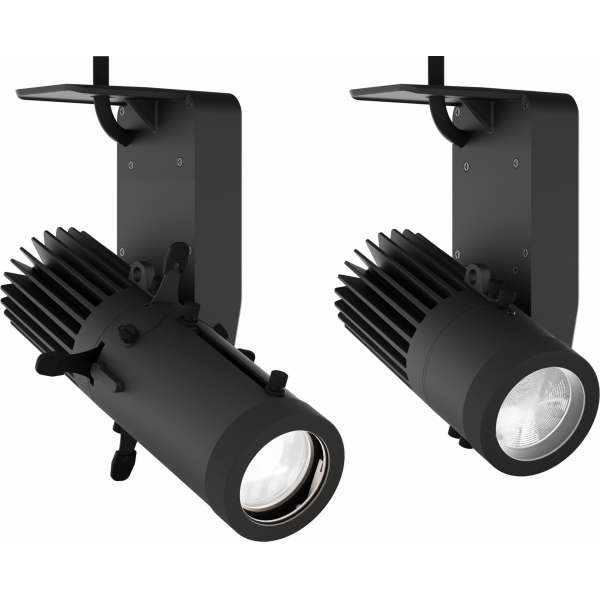

ECLDISPLAYCC27KB
Gallery Lights

ECLDISPLAYCC27KB

124X200x115,5mm Size
25W Power Consumption
1,15kg Weight

Experience the
ECLDISPLAYCC27KB
Light Show

Multiple lens options profile (zoom and static) or wash optics
Source 25W White COB LED
Luminous flux (2.800 K - 17°) 1'498 lm - (2.800 K - 36°) 1'586 lm - (3.000 K - 17°) 1'556 lm - (3.000 K - 36°) 1'676 @Full
Luminous flux (4.000 K - 17°) 1'576 lm - (4.000 K - 36°) 1'810 lm - (5.600 K - 17°) 1'631 lm - (5.600 K - 36°) 1'869 lm @ full
Lux (2.800 K - 17°) 825 lx - (2.800 K - 36°) 221 lx - (3.000 K - 17°) 1'556 lx - (3.000 K - 17°) 887 lx - (3.000 K - 36°) 241lx @5 m full
Lux (4.000 K - 17°) 923 lx - (4.000 K - 36°) 245 lx - (5.600 K - 17°) 964 lx - (5.600 K - 36°) 256lx @5 m full
CRI 90.5 @2.800 K; 90 @3.000 K; 92.9 @4.000 K; 90.5 @5.600 K
TLCI 87 @2.800 K; 88 @3.000 K; 94 @4.000 K; 93 @5.600 K
TM30 Rf > 89 @2.800 K and 3.000 K; > 91 @4.000 K; > 88 @5.600 K
TM30 Rg < 101 @2.800 K and 3.000 K; > 99 @4.000 K; < 101 @5.600 K
Source life expectancy > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
Zoom range (wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or fix 8°
Other 360° lens rotation - optional 360° rotating barndoors and gel frame holder
Other (profile lens) shutter blades lockable
Other (profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm
Data connection screw terminal blocks
Constant Current mains max 700mA/36V
Max power consumption (230V) 25W
Output (at 230V) 40 units on a single power line
IP rating IP20
Cooling fan-free with natural convection
Housing Die-cast aluminium
Finish black (RAL 9004) or white (RAL 9010)
Operating temperature Ta -10 to +45 °C (+14 to +113 °F)
Dimensions (WxHxD) 124X200x115,5mm
Weight 1,15kg
Suspension and fixing track / hanging / ceiling installation
Hardware on-board lockable tilt with screw
Other 1m cable included - Cable diameter range: 6 - 10 mm
Compliance CE, UKCA, RCM, cTUVus, FCC

No downloads available yet.

ECLDISPLAYCC27KB

Explore Similar
Products

Ready to Transform Your Space?

SKU: ECLDISPLAYCC27KB
CATEGORY: Gallery Lights
BRAND: Prolights
DELIVERY For orders above AED 1,000
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, retail and any public venue where an advanced but classical looking fixture is needed, with several control options, sources and optic versions available to precisely meet any application. The EclDisplay CC is the version of the EclDisplay range made to be connected to an external Constant Current PSU and driver (max 700mA/36V), selecting among the PROLIGHTS accessories or any third-party compatible component, leaving to System Integrators to install this luminaire in venues with their own wiring distribution and control. The EclDisplay CC includes a high-efficiency 25 W White, high CRI LED source, available in 2.700 K, 3.000 K, 4.000 K, 5.600 K variants, and it is completed with a wide selection of optional profile (zoom and static) or wash lenses, and other optical accessories like louvres and snoots, making it truly a multi-purpose fixture.

  • Constant Current version to be connected to external PSU and driver (max 700mA/36V)
  • 25W high CRI White LED available in 2.700 K, 3.000 K, 4.000 K, 5.600 K versions, both black and white housing
  • Multiple lens options: profile (zoom and static) or wash optics

    • EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, retail and any public venue where an advanced but classical looking fixture is needed, with several control options, sources and optic versions available to precisely meet any application. The EclDisplay CC is the version of the EclDisplay range made to be connected to an external Constant Current PSU and driver (max 700mA/36V), selecting among the PROLIGHTS accessories or any third-party compatible component, leaving to System Integrators to install this luminaire in venues with their own wiring distribution and control. The EclDisplay CC includes a high-efficiency 25 W White, high CRI LED source, available in 2.700 K, 3.000 K, 4.000 K, 5.600 K variants, and it is completed with a wide selection of optional profile (zoom and static) or wash lenses, and other optical accessories like louvres and snoots, making it truly a multi-purpose fixture.

    Features:
    Constant Current version to be connected to external PSU and driver (max 700mA/36V)
    25W high CRI White LED available in 2.700 K, 3.000 K, 4.000 K, 5.600 K versions, both black and white housing
    Multiple lens options: profile (zoom and static) or wash optics

    LIGHT SOURCE
    • Source:
      25
      W
      White COB LED
    • Luminous flux:
      (2.800 K - 17°) 1'498 lm - (2.800 K - 36°) 1'586 lm - (3.000 K - 17°) 1'556 lm - (3.000 K - 36°) 1'676
      @Full
    • Luminous flux:
      (4.000 K - 17°) 1'576 lm - (4.000 K - 36°) 1'810 lm - (5.600 K - 17°) 1'631 lm - (5.600 K - 36°) 1'869 lm @ full
    • Lux:
      (2.800 K - 17°) 825 lx - (2.800 K - 36°) 221 lx - (3.000 K - 17°) 1'556 lx - (3.000 K - 17°) 887 lx - (3.000 K - 36°) 241
      lx
      @5 m full
    • Lux:
      (4.000 K - 17°) 923 lx - (4.000 K - 36°) 245 lx - (5.600 K - 17°) 964 lx - (5.600 K - 36°) 256
      lx
      @5 m full
    • CRI:
      90.5 @2.800 K; 90 @3.000 K; 92.9 @4.000 K; 90.5 @5.600 K
    • TLCI:
      87 @2.800 K; 88 @3.000 K; 94 @4.000 K; 93 @5.600 K
    • TM30 Rf:
      > 89 @2.800 K and 3.000 K; > 91 @4.000 K; > 88 @5.600 K
    • TM30 Rg:
      < 101 @2.800 K and 3.000 K; > 99 @4.000 K; < 101 @5.600 K
    • Source life expectancy:
      > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
    OPTICS
    • Zoom range:
      (wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or fix 8
      °
    • Other:
      360° lens rotation - optional 360° rotating barndoors and gel frame holder
    • Other:
      (profile lens) shutter blades lockable
    • Other:
      (profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm
    CONNECTIONS
    • Data connection:
      screw terminal blocks
    ELECTRICAL
    • Constant Current mains:
      max 700mA/36V
    • Max power consumption (230V):
      25
      W
    • Output (at 230V):
      40
      units on a single power line
    PHYSICAL
    • IP rating:
      IP20
    • Cooling:
      fan-free with natural convection
    • Housing:
      Die-cast aluminium
    • Finish:
      black (RAL 9004) or white (RAL 9010)
    • Operating temperature:
      Ta
      -10 to +45 °C (+14 to +113 °F)
    • Dimensions (WxHxD):
      124X200x115,5
      mm
    • Weight:
      1,15
      kg
    INSTALLATION
    • Suspension and fixing:
      track / hanging / ceiling installation
    • Hardware on-board:
      lockable tilt with screw
    • Other:
      1m cable included - Cable diameter range: 6 - 10 mm
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA, RCM, cTUVus, FCC

    No reviews yet.

    Browse Related Categories

    More categories under Architectural

    Floods
    Linear
    Pendant
    Image Projectors
    Accents
    Spots

    25W White LED gallery light, constant current to be connected to external PSU & Driver

    EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, retail and any public venue where an advanced but classical looking fixture is needed, with several control options, sources and optic versions available to precisely meet any application. The EclDisplay CC is the version of the EclDisplay range made to be connected to an external Constant Current PSU and driver (max 700mA/36V), selecting among the PROLIGHTS accessories or any third-party compatible component, leaving to System Integrators to install this luminaire in venues with their own wiring distribution and control. The EclDisplay CC includes a high-efficiency 25 W White, high CRI LED source, available in 2.700 K, 3.000 K, 4.000 K, 5.600 K variants, and it is completed with a wide selection of optional profile (zoom and static) or wash lenses, and other optical accessories like louvres and snoots, making it truly a multi-purpose fixture.

    Main features:

    • Constant Current version to be connected to external PSU and driver (max 700mA/36V)
    • 25W high CRI White LED available in 2.700 K, 3.000 K, 4.000 K, 5.600 K versions, both black and white housing
    • Multiple lens options: profile (zoom and static) or wash optics
