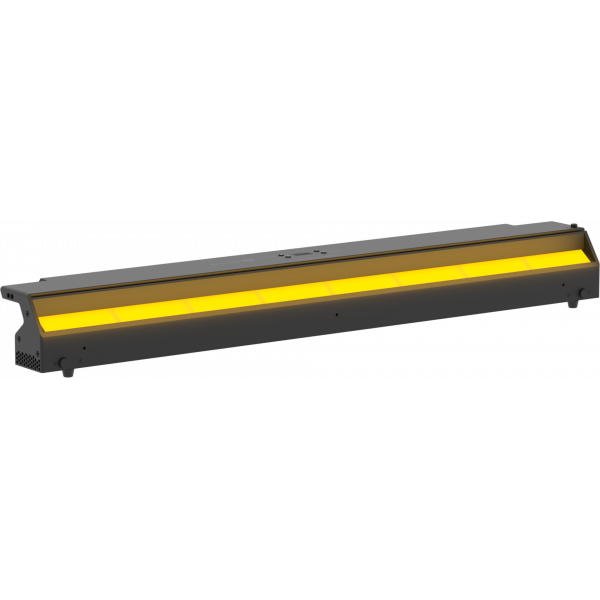

ECLCYC100
Cyclorama

ECLCYC100

1000x119x148mm Size
Seetronic powerCON waterproof IN/OUT connectors Power Consumption
9,6kg Weight
(VxH) 40°x80° Beam Angle

Experience the
ECLCYC100
Light Show

Source 330W RGB + Warm White LEDs
Luminous flux (with 40°x80° filter on board) 22'649 @Full
Lux @1 m to wall and 1,5 m height @full (with standard filter 40°x80°) 1'240 lx - (with 40° filter) 2'610 lx - (with 10°x60° filter) 3'110 lx - (with 30°x60° filter) 2'880lx
CRI 93 @3.200 K; 92,6 @5.600 K
R9 88 @3.200 K; 93,7 @5.600 K
TLCI 91 @5.600 K
TM30 Rf 90,9 @5.600 K
TM30 Rg 106 @5.600 K
Source life expectancy > 50.000 h
Beam angle (VxH) 40°x80°
Additional optics see available accessories
Colour mixing RGB + Warm White
CCT CCT control, + / - green correction, tungsten emulation
White presets 2.800 K - 10.000K
Colour wheel virtual colour wheel with macros
Control Resolution 16-bit dimmer and color control
Supported Protocols DMX512, RDM, Art-Net, sACN, W-DMX
RDM for remote addressing and parameter configuration
Display Graphic User Interface
Dimmer curves selectable dimming modes available
Strobe / shutter 1 - 30 Hz, electronic
Selectable PWM 600 to 25000 Hz (selectable steps)
Firmware upgrade via DMX with UPBOXPRO/UPBOX1 (not included)
Power connection Seetronic powerCON waterproof IN/OUT connectors
Signal connection Amphenol XLR 5p IN/OUT connectors
Wireless Connection integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
Data connection RJ45 IN/OUT
Mains power supply 100-240V - 50/60Hz
Max power consumption (230V) 400W
Standby power 110V (60Hz): 9,4W; 230V (50Hz): 9,6W
Power factor >0,94
IP rating IP20
Cooling passive, fan-free
Housing Sturdy die-cast aluminium body
Finish black
Operating temperature Ta -10 to +45 °C (+14 to +113 °F)
Dimensions (WxHxD) 1000x119x148mm
Weight 9,6kg
Suspension and fixing any position with quick-lock omega brackets
Hardware on-board sockets for quick-Lock Omega bracket (clamp not included)
Other +/- 8° angle adjusting
Compliance CE, UKCA, RCM, cTUVus, FCC

No downloads available yet.

ECLCYC100

Explore Similar
Products

Ready to Transform Your Space?

SKU: ECLCYC100
CATEGORY: Cyclorama
BRAND: Prolights
DELIVERY For orders above AED 1,000
WARRANTY 2 years
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

EclCyclorama 100 is a soft-edge, linear cyclorama and floodlight, designed in a surprisingly low profile form factor to meet applications at both front and end of the stage, offering an unprecedent level of brightness in its category. The fixture is equipped with a custom and calibrated RGB + Warm White LED source, which is capable to deliver a linear and high quality white reproduction of the entire spectrum with high CRI, TLCI and TM30 performances. The optical system has been designed to offer a very wide asymetric beam angle, and capable of a superior lumen efficiency, making the EclCyclorama range a very flexible solution, suitable for both application where fixture are connected each other or separated by a considerable distance, without worrying of dark-edge or uniformity gaps. The fixture is extremely user friendly and offers a multitude of control possibilities being DMX, RDM, Artnet, sACN and Wireless DMX.

  • RGB + Warm White colour systems allows high quality of whites (CRI 93 @3.200 K) and bright colours.
  • Slim design, with only 12 cm height for easy implementation in the front or at the back of the stage.
  • Wide Asymmetric beam angle to allow flexible installation at modular distances between fixtures
  • Hardware designed with tilt angle adjustment, beam control and flexible hanging and ground stacking applications.

    • EclCyclorama 100 is a soft-edge, linear cyclorama and floodlight, designed in a surprisingly low profile form factor to meet applications at both front and end of the stage, offering an unprecedent level of brightness in its category. The fixture is equipped with a custom and calibrated RGB + Warm White LED source, which is capable to deliver a linear and high quality white reproduction of the entire spectrum with high CRI, TLCI and TM30 performances. The optical system has been designed to offer a very wide asymetric beam angle, and capable of a superior lumen efficiency, making the EclCyclorama range a very flexible solution, suitable for both application where fixture are connected each other or separated by a considerable distance, without worrying of dark-edge or uniformity gaps. The fixture is extremely user friendly and offers a multitude of control possibilities being DMX, RDM, Artnet, sACN and Wireless DMX.

    Features:
    RGB + Warm White colour systems allows high quality of whites (CRI 93 @3.200 K) and bright colours.
    Slim design, with only 12 cm height for easy implementation in the front or at the back of the stage.
    Wide Asymmetric beam angle to allow flexible installation at modular distances between fixtures
    Hardware designed with tilt angle adjustment, beam control and flexible hanging and ground stacking applications.

    LIGHT SOURCE
    • Source:
      330
      W
      RGB + Warm White LEDs
    • Luminous flux:
      (with 40°x80° filter on board) 22'649
      @Full
    • Lux:
      @1 m to wall and 1,5 m height @full (with standard filter 40°x80°) 1'240 lx - (with 40° filter) 2'610 lx - (with 10°x60° filter) 3'110 lx - (with 30°x60° filter) 2'880
      lx
    • CRI:
      93 @3.200 K; 92,6 @5.600 K
    • R9:
      88 @3.200 K; 93,7 @5.600 K
    • TLCI:
      91 @5.600 K
    • TM30 Rf:
      90,9 @5.600 K
    • TM30 Rg:
      106 @5.600 K
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      (VxH) 40°x80
      °
    • Additional optics:
      see available accessories
    COLOUR SYSTEM
    • Colour mixing:
      RGB + Warm White
    • CCT:
      CCT control, + / - green correction, tungsten emulation
    • White presets:
      2.800 K - 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    DYNAMIC EFFECTS
    • Control Resolution:
      16-bit dimmer and color control
    CONTROL
    • Supported Protocols:
      DMX512, RDM, Art-Net, sACN, W-DMX
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      Graphic User Interface
    ELECTRONICS
    • Dimmer curves:
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Selectable PWM:
      600 to 25000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX1 (not included)
    CONNECTIONS
    • Power connection:
      Seetronic powerCON waterproof IN/OUT connectors
    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    • Wireless Connection:
      integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
    • Data connection:
      RJ45 IN/OUT
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      400
      W
    • Standby power:
      110V (60Hz): 9,4W; 230V (50Hz): 9,6W
    • Power factor:
      >0,94
    PHYSICAL
    • IP rating:
      IP20
    • Cooling:
      passive, fan-free
    • Housing:
      Sturdy die-cast aluminium body
    • Finish:
      black
    • Operating temperature:
      Ta
      -10 to +45 °C (+14 to +113 °F)
    • Dimensions (WxHxD):
      1000x119x148
      mm
    • Weight:
      9,6
      kg
    INSTALLATION
    • Suspension and fixing:
      any position with quick-lock omega brackets
    • Hardware on-board:
      sockets for quick-Lock Omega bracket (clamp not included)
    • Other:
      +/- 8° angle adjusting
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA, RCM, cTUVus, FCC

    No reviews yet.

    Browse Related Categories

    More categories under Theatre, Film & Studio

    Soft Lighting
    Pars
    Ellipsoidals
    LED-Par
    Fresnel
    Soft-Panel
    Profile
    Follow Spot

    330W linear soft CYC and flood light with RGB+Warm White colour mixing

    EclCyclorama 100 is a soft-edge, linear cyclorama and floodlight, designed in a surprisingly low profile form factor to meet applications at both front and end of the stage, offering an unprecedent level of brightness in its category. The fixture is equipped with a custom and calibrated RGB + Warm White LED source, which is capable to deliver a linear and high quality white reproduction of the entire spectrum with high CRI, TLCI and TM30 performances. The optical system has been designed to offer a very wide asymetric beam angle, and capable of a superior lumen efficiency, making the EclCyclorama range a very flexible solution, suitable for both application where fixture are connected each other or separated by a considerable distance, without worrying of dark-edge or uniformity gaps. The fixture is extremely user friendly and offers a multitude of control possibilities being DMX, RDM, Artnet, sACN and Wireless DMX.

    Main features:

    • RGB + Warm White colour systems allows high quality of whites (CRI 93 @3.200 K) and bright colours.
    • Slim design, with only 12 cm height for easy implementation in the front or at the back of the stage.
    • Wide Asymmetric beam angle to allow flexible installation at modular distances between fixtures
    • Hardware designed with tilt angle adjustment, beam control and flexible hanging and ground stacking applications.
