Battery-Operated
DOTQPACKMR
520x125x320mm
Size
5 / 9ch
DMX Channels
100-240V - 50/60Hz
Power Consumption
6kg
Weight
Experience the
DOTQPACKMR
Light Show
| Source | 1x15W RGBW LED |
|---|---|
| Luminous flux | 550 |
| Lux | 710lx @3 m full |
| Source life expectancy | > 50.000 h |
| Beam angle | 15° |
| Field angle | 23° |
| Additional optics | Magnetic Frost filter included for wider diffusion |
| Colour mixing | RGBW / FC |
| White presets | 2.800-9.000K |
| Colour wheel | virtual colour wheel with macros |
| Macros | built-in white presets |
| Static mode | selection of static colour |
| Manual mode | manual adjustment of colour |
| Auto mode | built-in programs with execution speed adjustment |
| Supported Protocols | W-DMX, RDM |
| DMX channels | 5 / 9ch |
| RDM | for remote addressing and parameter configuration |
| Display | 3 chars display |
| IR | infrared remote controller for simple control, addressing and settings |
| Tilt | ° with adjustable foot support |
| Dimmer | linear 0 - 100% electronic dimmer |
| Strobe / shutter | 1-25 Hz, electronic |
| Battery | 11,1V lithium |
| Battery life in colour change mode up to | 16h |
| Battery life in full-mode up to | 6h |
| Recharge connection | power cable fast-charge in pelican case |
| Recharge time | 3h (max) |
| Battery level indicator | LED battery status indicator |
| Wireless Connection | integrated W-DMX receiver |
| Mains power supply | 100-240V - 50/60Hz |
| IP rating | IP65 (front) - IP54 (bottom) for temporary outdoor use |
| Cooling | fan-free with natural convection |
| Housing | Sturdy polycarbonate body |
| Finish | mirror finishing |
| Operating temperature | Ta 0 to +35 °C (+32 to +95 °F) |
| Dimensions (WxHxD) | 520x125x320mm |
| Weight | 6kg |
| Suspension and fixing | bracket for hanging and positioning |
| Hardware on-board | air suckers, eye bolts, top hat, rubber feets (included in DOTQPACK) |
| Compliance | CE, UKCA, RCM, cTUVus, FCC |
No downloads available yet.
Explore Similar
Products
Ready to Transform Your Space?
DELIVERY
For orders above AED 1,000
WARRANTY
2 years
SECURE PAYMENT
Safe encrypted checkup
EXPERT SUPPORT
Pre and post sale support
Dot QPack is a bundle composed by 6pcs of Dot Q, IR remote controller, accessories and charger for the whole set - all included in a sturdy ABS case. Dot Q is an ultra-compact, wireless, battery, LED accent luminaire designed to complement uplighting both inside and outside a room. The compact form factor and chrome finish allow it to be used anywhere that needs a “little lift” to finish off the perfect event design.
Dot QPack is a bundle composed by 6pcs of Dot Q, IR remote controller, accessories and charger for the whole set - all included in a sturdy ABS case. Dot Q is an ultra-compact, wireless, battery, LED accent luminaire designed to complement uplighting both inside and outside a room. The compact form factor and chrome finish allow it to be used anywhere that needs a “little lift” to finish off the perfect event design.
Features:Even, powerful saturated and pastel colours from single 15W RGBW LED.
Chrome finish, ultra-compact size and IP65 rating for incredible versatility.
DOTQPACK include:
ABS case with 6pcs of Dot Q;
6 hanging bracket;
12 air suckers;
6 eye bolt;
6 magnetic frost filter;
6 top hat;
IR controller;
Battery charger for 6 Dot Q;
24 pcs rubber feet;
adjustable foot support
LIGHT SOURCE
- Source:1x15WRGBW LED
- Luminous flux:550
- Lux:710lx@3 m full
- Source life expectancy:> 50.000 h
OPTICS
- Beam angle:15°
- Field angle:23°
- Additional optics:Magnetic Frost filter included for wider diffusion
COLOUR SYSTEM
- Colour mixing:RGBW / FC
- White presets:2.800-9.000K
- Colour wheel:virtual colour wheel with macros
- Macros:built-in white presets
DYNAMIC EFFECTS
- Static mode:selection of static colour
- Manual mode:manual adjustment of colour
- Auto mode:built-in programs with execution speed adjustment
CONTROL
- Supported Protocols:W-DMX, RDM
- DMX channels:5 / 9ch
- RDM:for remote addressing and parameter configuration
- Display:3 chars display
- IR:infrared remote controller for simple control, addressing and settings
MOVEMENT
- Tilt:°with adjustable foot support
ELECTRONICS
- Dimmer:linear 0 - 100% electronic dimmer
- Strobe / shutter:1-25Hz, electronic
BATTERY
- Battery:11,1Vlithium
- Battery life in colour change mode up to:16h
- Battery life in full-mode up to:6h
- Recharge connection:power cable fast-charge in pelican case
- Recharge time:3h (max)
- Battery level indicator:LED battery status indicator
CONNECTIONS
- Wireless Connection:integrated W-DMX receiver
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
PHYSICAL
- IP rating:IP65 (front) - IP54 (bottom) for temporary outdoor use
- Cooling:fan-free with natural convection
- Housing:Sturdy polycarbonate body
- Finish:mirror finishing
- Operating temperature:Ta0 to +35 °C (+32 to +95 °F)
- Dimensions (WxHxD):520x125x320mm
- Weight:6kg
INSTALLATION
- Suspension and fixing:bracket for hanging and positioning
- Hardware on-board:air suckers, eye bolts, top hat, rubber feets (included in DOTQPACK)
CERTIFICATIONS / REPORTS
- Compliance:CE, UKCA, RCM, cTUVus, FCC
No reviews yet.

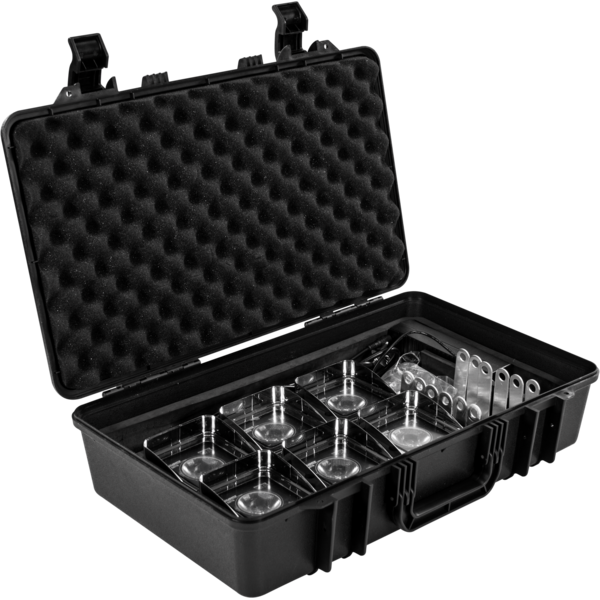

Kit composed by 6 pcs of Dot Q, charger, IR remote controller, pelican case
Dot QPack is a bundle composed by 6pcs of Dot Q, IR remote controller, accessories and charger for the whole set - all included in a sturdy ABS case. Dot Q is an ultra-compact, wireless, battery, LED accent luminaire designed to complement uplighting both inside and outside a room. The compact form factor and chrome finish allow it to be used anywhere that needs a “little lift” to finish off the perfect event design.
Main features:
- Even, powerful saturated and pastel colours from single 15W RGBW LED.
- Chrome finish, ultra-compact size and IP65 rating for incredible versatility.
- DOTQPACK include:
- ABS case with 6pcs of Dot Q;
- 6 hanging bracket;
- 12 air suckers;
- 6 eye bolt;
- 6 magnetic frost filter;
- 6 top hat;
- IR controller;
- Battery charger for 6 Dot Q;
- 24 pcs rubber feet;
- adjustable foot support
