Indoor-Fixtures
DISPLAYCOBDY
166x118x250mm
Size
1 / 2 / 5ch
DMX Channels
moulded IP power IN connector
Power Consumption
1,85kg
Weight
Experience the
DISPLAYCOBDY
Light Show
| Source | 45W White COB LED |
|---|---|
| Source CCT | 5.000K |
| Luminous flux | (30°) 2'651 - (60°) 2'684 @Full |
| Lux | (30°) 313lx @5 m full |
| Lux | (60°) 120lx @5 m full |
| CRI | >91 |
| R9 | >58 |
| TLCI | >91 |
| TM30 Rf | >88 |
| TM30 Rg | >98 |
| Source life expectancy | > 50.000 hrs (L70B10 @Ta 25° C / 77° F) |
| Beam angle | 60° |
| Field angle | 80° |
| Lens type | parabolic reflector in combination with HD fresnel lens |
| Additional optics | 30° (inc) - 15° (opt) |
| Static mode | selection of static colour |
| Manual mode | manual adjustment of dimmer and strobe |
| Auto mode | built-in programs with execution speed adjustment |
| Supported Protocols | DMX512 |
| DMX channels | 1 / 2 / 5ch |
| Display | Graphic User Interface |
| Master/Slave | for synchronised operation of more units linked in a chain |
| Dimmer | linear 0 - 100% electronic dimmer |
| Dimmer curves | 4 selectable dimming modes available |
| Strobe / shutter | 1 - 28 Hz, electronic |
| Selectable PWM | 600 to 25000 Hz (selectable steps) |
| Firmware upgrade | via DMX with UPBOXPRO/UPBOX1 (not included) |
| Power connection | moulded IP power IN connector |
| Signal connection | XLR 5p IN/OUT connectors |
| Mains power supply | 100-240V - 50/60Hz |
| Max power consumption (230V) | 54W |
| Output (at 230V) | 29 units on a single power line |
| Power factor | >0,98 |
| IP rating | IP20 |
| Cooling | fan-free with natural convection |
| Housing | Sturdy die-cast aluminium body |
| Finish | black |
| Operating temperature | Ta -10 to +45 °C (+14 to +113 °F) |
| Dimensions (WxHxD) | 166x118x250mm |
| Weight | 1,85kg |
| Suspension and fixing | double hanging bracket suitable for safe hanging and for floor positioning |
| Compliance | CE, UKCA, RCM |
No downloads available yet.
Explore Similar
Products
Ready to Transform Your Space?
DELIVERY
For orders above AED 1,000
WARRANTY
2 years
SECURE PAYMENT
Safe encrypted checkup
EXPERT SUPPORT
Pre and post sale support

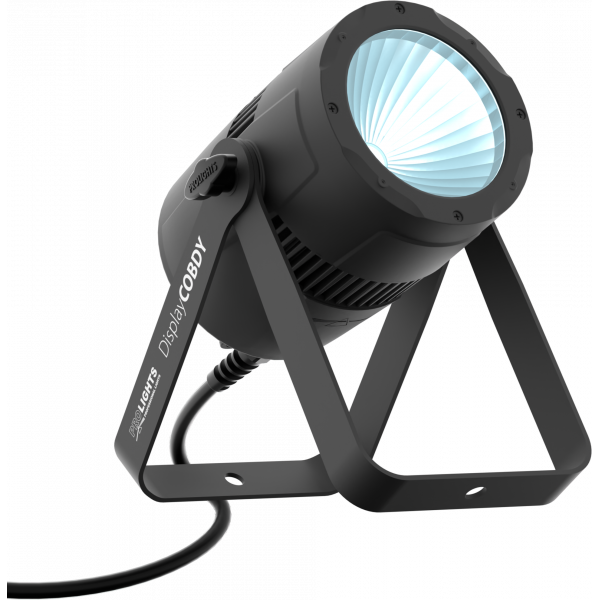

DisplayCob DY is the compact version of the popular StudioCob DY - perfect for an installation or indoor venues. DisplayCob DY uses a 45W COB LED source daylight white 5.000 K, combined with a special parabolic reflector built in aluminium which develops an extremely bright and homogeneous output of 91 CRI and interchangeable lens systems to switch from 60° (incl.) to 30° (incl.) and 15° (opt.).
DisplayCob DY is the compact version of the popular StudioCob DY - perfect for an installation or indoor venues. DisplayCob DY uses a 45W COB LED source daylight white 5.000 K, combined with a special parabolic reflector built in aluminium which develops an extremely bright and homogeneous output of 91 CRI and interchangeable lens systems to switch from 60° (incl.) to 30° (incl.) and 15° (opt.).
Features:Compact LED PAR with high CRI 45W cold white COB source
HD dimming and an extensive and even colour palette.
Flexible lens options of 15° - 30° - 60° and functional barn doors
LIGHT SOURCE
- Source:45WWhite COB LED
- Source CCT:5.000K
- Luminous flux:(30°) 2'651 - (60°) 2'684@Full
- Lux:(30°) 313lx@5 m full
- Lux:(60°) 120lx@5 m full
- CRI:>91
- R9:>58
- TLCI:>91
- TM30 Rf:>88
- TM30 Rg:>98
- Source life expectancy:> 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
- Beam angle:60°
- Field angle:80°
- Lens type:parabolic reflector in combination with HD fresnel lens
- Additional optics:30° (inc) - 15° (opt)
DYNAMIC EFFECTS
- Static mode:selection of static colour
- Manual mode:manual adjustment of dimmer and strobe
- Auto mode:built-in programs with execution speed adjustment
CONTROL
- Supported Protocols:DMX512
- DMX channels:1 / 2 / 5ch
- Display:Graphic User Interface
- Master/Slave:for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 28Hz, electronic
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
- Power connection:moulded IP power IN connector
- Signal connection:XLR 5p IN/OUT connectors
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):54W
- Output (at 230V):29units on a single power line
- Power factor:>0,98
PHYSICAL
- IP rating:IP20
- Cooling:fan-free with natural convection
- Housing:Sturdy die-cast aluminium body
- Finish:black
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):166x118x250mm
- Weight:1,85kg
INSTALLATION
- Suspension and fixing:double hanging bracket suitable for safe hanging and for floor positioning
CERTIFICATIONS / REPORTS
- Compliance:CE, UKCA, RCM
No reviews yet.
45W compact Daylight White COB PAR with parabolic reflector
DisplayCob DY is the compact version of the popular StudioCob DY - perfect for an installation or indoor venues. DisplayCob DY uses a 45W COB LED source daylight white 5.000 K, combined with a special parabolic reflector built in aluminium which develops an extremely bright and homogeneous output of 91 CRI and interchangeable lens systems to switch from 60° (incl.) to 30° (incl.) and 15° (opt.).
Main features:
- Compact LED PAR with high CRI 45W cold white COB source
- HD dimming and an extensive and even colour palette.
- Flexible lens options of 15° - 30° - 60° and functional barn doors
