ASTRAWASH7PIXIP
Outdoor Moving Lights

ASTRAWASH7PIXIP

300x424x213mm Size
main personality 24 / 27 / 39ch DMX Channels
Seetronic powerCON TRUE IP65 IN Power Consumption
11,3kg Weight

Experience the
ASTRAWASH7PIXIP
Light Show

Source 7x40W RGBW Osram Ostar LEDs
Luminous flux (4°) 2'013 lm - (56°) 3'543 @Full
Lux (4°) 18'360 lx - (56°) 364lx @5 m full
Source life expectancy > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
Zoom range 4° - 56° motorised linear zoom
Lens type honeycomb gapless plano-convex optics
Colour mixing RGBW / FC
CCT CCT control, + / - green correction, tungsten emulation
White presets 2.800 K ~ 10.000K
Colour wheel virtual colour wheel with macros
Control Resolution 16-bit dimmer control
Pixel patterns pre-programmed static and dynamic pixel patterns
FX generator adjustable foreground/background colour, index, speed, direction
Supported Protocols DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
DMX channels main personality 24 / 27 / 39ch
Pixel control OFF, ring and pixel2pixel selectable options
RDM for remote addressing and parameter configuration
Display LCD high resolution colour display with autoflip
Pan 540° - 16-bit resolution
Tilt 233° - 16-bit resolution
Position feedback automatic repositioning after external movement
Dimmer linear 0 - 100% electronic dimmer
Dimmer curves 4 selectable dimming modes available
Strobe / shutter 1 - 30 Hz, electronic
Display battery included, self-charging battery backup
Selectable PWM 600 to 50000 Hz (selectable steps)
Firmware upgrade via DMX with UPBOXPRO/UPBOX2 (not included)
Power connection Seetronic powerCON TRUE IP65 IN
Signal connection Seetronic XLR 5p IN/OUT connectors
Wireless Connection integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
Data connection Seetronic Art-Net RJ45 IN/OUT
Mains power supply 100-240V - 50/60Hz
Max power consumption (230V) 220W
Output (at 230V) 12 units on a single power line
Standby power 36W
Power factor > 0,93
IP rating IP65 for temporary outdoor use (*)
Cooling filtered forced-air with low-noise fan
Housing Weatherproof IP65 construction
Finish black (RAL 9004)
Operating temperature Ta -20 to +45 °C (-4 to +113 °F)
Dimensions (WxHxD) 300x424x213mm
Weight 11,3kg
Suspension and fixing any position with quick-lock omega brackets
Hardware on-board sockets for quick-Lock Omega bracket (clamp not included)
Compliance CE, UKCA, RCM, cTUVus, FCC
NOTE Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.

No downloads available yet.

ASTRAWASH7PIXIP

Explore Similar
Products

Ready to Transform Your Space?

SKU: ASTRAWASH7PIXIP
CATEGORY: Outdoor Moving Lights
BRAND: Prolights
DELIVERY For orders above AED 1,000
WARRANTY 2 years
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

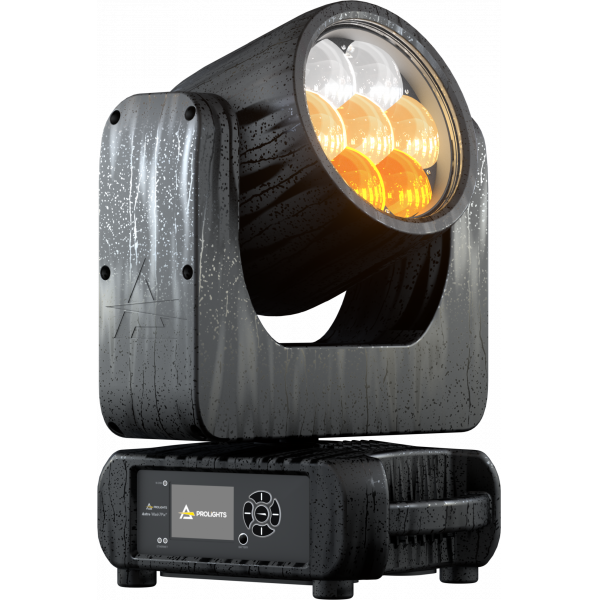

The Astra Wash7PIXIP is an IP65 LED moving wash light, designed in a small and lightweight body, with the same features and performances than its indoor version.

This fixture has a 7x40W Osram RGBW LED light source, and an extremely high-efficiency optical system capable of zooming from 4° to 56°, making this luminaire extremely versatile for any application as a beam or wash light.

The Astra Wash7PIXIP is single pixel controllable, with multiple on-board FX, along with precise and advanced white and colour control, all through DMX/RDM, W-DMX, Art-Net, sACN and Kling-Net.

  • IP65 with a compact form factor and fast movements
  • Zoom from 4° to 56° with a high-optical efficiency
  • Pixel control, precise white CCT, multiple FXs and colour features

    • The Astra Wash7PIXIP is an IP65 LED moving wash light, designed in a small and lightweight body, with the same features and performances than its indoor version.

    This fixture has a 7x40W Osram RGBW LED light source, and an extremely high-efficiency optical system capable of zooming from 4° to 56°, making this luminaire extremely versatile for any application as a beam or wash light.

    The Astra Wash7PIXIP is single pixel controllable, with multiple on-board FX, along with precise and advanced white and colour control, all through DMX/RDM, W-DMX, Art-Net, sACN and Kling-Net.

    Features:
    IP65 with a compact form factor and fast movements
    Zoom from 4° to 56° with a high-optical efficiency
    Pixel control, precise white CCT, multiple FXs and colour features

    LIGHT SOURCE
    • Source:
      7x40
      W
      RGBW Osram Ostar LEDs
    • Luminous flux:
      (4°) 2'013 lm - (56°) 3'543
      @Full
    • Lux:
      (4°) 18'360 lx - (56°) 364
      lx
      @5 m full
    • Source life expectancy:
      > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
    OPTICS
    • Zoom range:
      4° - 56
      °
      motorised linear zoom
    • Lens type:
      honeycomb gapless plano-convex optics
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • CCT:
      CCT control, + / - green correction, tungsten emulation
    • White presets:
      2.800 K ~ 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    DYNAMIC EFFECTS
    • Control Resolution:
      16-bit dimmer control
    • Pixel patterns:
      pre-programmed static and dynamic pixel patterns
    • FX generator:
      adjustable foreground/background colour, index, speed, direction
    CONTROL
    • Supported Protocols:
      DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
    • DMX channels:
      main personality 24 / 27 / 39
      ch
    • Pixel control:
      OFF, ring and pixel2pixel selectable options
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      LCD high resolution colour display with autoflip
    MOVEMENT
    • Pan:
      540
      °
      - 16-bit resolution
    • Tilt:
      233
      °
      - 16-bit resolution
    • Position feedback:
      automatic repositioning after external movement
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Display battery:
      included, self-charging battery backup
    • Selectable PWM:
      600 to 50000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX2 (not included)
    CONNECTIONS
    • Power connection:
      Seetronic powerCON TRUE IP65 IN
    • Signal connection:
      Seetronic XLR 5p IN/OUT connectors
    • Wireless Connection:
      integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
    • Data connection:
      Seetronic Art-Net
      RJ45 IN/OUT
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      220
      W
    • Output (at 230V):
      12
      units on a single power line
    • Standby power:
      36W
    • Power factor:
      > 0,93
    PHYSICAL
    • IP rating:
      IP65 for temporary outdoor use (*)
    • Cooling:
      filtered forced-air with low-noise fan
    • Housing:
      Weatherproof IP65 construction
    • Finish:
      black (RAL 9004)
    • Operating temperature:
      Ta
      -20 to +45 °C (-4 to +113 °F)
    • Dimensions (WxHxD):
      300x424x213
      mm
    • Weight:
      11,3
      kg
    INSTALLATION
    • Suspension and fixing:
      any position with quick-lock omega brackets
    • Hardware on-board:
      sockets for quick-Lock Omega bracket (clamp not included)
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA, RCM, cTUVus, FCC
    (*)
    • NOTE:
      Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.

    No reviews yet.

    Browse Related Categories

    More categories under Entertainment Lighting

    Indoor-Fixtures
    Battery Operated
    Strob
    Outdoor Fixtures
    Lazer
    Effects Lighting
    Indoor Moving Lights
    Battery Operated

    IP65 moving wash light with 7x40W RGBW LED and 4°-56° zoom

    The Astra Wash7PIXIP is an IP65 LED moving wash light, designed in a small and lightweight body, with the same features and performances than its indoor version. This fixture has a 7x40W Osram RGBW LED light source, and an extremely high-efficiency optical system capable of zooming from 4° to 56°, making this luminaire extremely versatile for any application as a beam or wash light. The Astra Wash7PIXIP is single pixel controllable, with multiple on-board FX, along with precise and advanced white and colour control, all through DMX/RDM, W-DMX, Art-Net, sACN and Kling-Net.

    Main features:

    • IP65 with a compact form factor and fast movements
    • Zoom from 4° to 56° with a high-optical efficiency
    • Pixel control, precise white CCT, multiple FXs and colour features
