Indoor Moving Lights

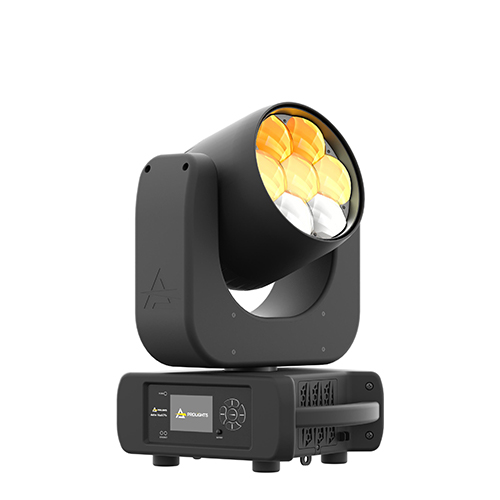

ASTRAWASH7PIX
279x391x205mm
Size
main personality 24 / 27 / 39ch
DMX Channels
Neutrik powerCON TRUE1 IN/OUT connectors
Power Consumption
8,1kg
Weight
Experience the
ASTRAWASH7PIX
Light Show
| Source | 7x40W RGBW Osram Ostar LEDs |
|---|---|
| Luminous flux | (4°) 2'013 lm - (56°) 3'543 @Full |
| Lux | (4°) 18'360 lx - (56°) 364lx @5 m full |
| Source life expectancy | > 50.000 hrs (L70B10 @Ta 25° C / 77° F) |
| Zoom range | 4° - 56° motorised linear zoom |
| Lens type | honeycomb gapless plano-convex optics |
| Colour mixing | RGBW / FC |
| CCT | CCT control, + / - green correction, tungsten emulation |
| White presets | 2.800 K ~ 10.000K |
| Colour wheel | virtual colour wheel with macros |
| Control Resolution | 16-bit dimmer control |
| Pixel patterns | pre-programmed static and dynamic pixel patterns |
| FX generator | adjustable foreground/background colour, index, speed, direction |
| Supported Protocols | DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX |
| DMX channels | main personality 24 / 27 / 39ch |
| Pixel control | OFF, ring and pixel2pixel selectable options |
| RDM | for remote addressing and parameter configuration |
| Display | LCD high resolution colour display with autoflip |
| Pan | 540° - 16-bit resolution |
| Tilt | 233° - 16-bit resolution |
| Position feedback | automatic repositioning after external movement |
| Dimmer | linear 0 - 100% electronic dimmer |
| Dimmer curves | 4 selectable dimming modes available |
| Strobe / shutter | 1 - 30 Hz, electronic |
| Display battery | included, self-charging battery backup |
| Selectable PWM | 600 to 50000 Hz (selectable steps) |
| Firmware upgrade | via DMX with UPBOXPRO/UPBOX2 (not included) |
| Power connection | Neutrik powerCON TRUE1 IN/OUT connectors |
| Signal connection | Amphenol XLR 5p IN/OUT connectors |
| Wireless Connection | integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible |
| Data connection | Neutrik Art-Net RJ45 IN/OUT |
| Mains power supply | 100-240V - 50/60Hz |
| Max power consumption (230V) | 225W |
| Output (at 230V) | 12 units on a single power line |
| Standby power | 36 W |
| Power factor | > 0,93 |
| IP rating | IP20 |
| Cooling | filtered forced-air with low-noise fan |
| Housing | Aluminium structure with high-resistance polycarbonate cover |
| Finish | black (RAL 9004) or white (RAL 9010) |
| Operating temperature | Ta -10 to +45 °C (+14 to +113 °F) |
| Dimensions (WxHxD) | 279x391x205mm |
| Weight | 8,1kg |
| Suspension and fixing | any position with quick-lock omega brackets |
| Hardware on-board | sockets for quick-Lock Omega bracket (clamp not included) |
| Compliance | CE, UKCA, RCM, cTUVus, FCC |
No downloads available yet.
Explore Similar
Products
Order Code
VPL-2RN
View Details
Order Code
Xwash1200
View Details
Order Code
VPL-Extreme
View Details
Ready to Transform Your Space?
DELIVERY
For orders above AED 1,000
WARRANTY
2 years
SECURE PAYMENT
Safe encrypted checkup
EXPERT SUPPORT
Pre and post sale support
Astra Wash7Pix is a compact and fast LED moving wash light. Despite its small size, it comes with an extensive feature set which can typically only be found on bigger luminaires.
Based on a 40W Osram RGBW LED light source, the unit features an extremely high-efficient optical system capable of zooming from 4° to 56°, making it extremely versatile for any application as beam or wash light.
Astra Wash7Pix is single pixel controllable, with multiple on-board FX, and allows access to a precise and advanced white and colour control, all through DMX, W-DMX, Art-Net, sACN, Kling-Net and RDM.
Astra Wash7Pix is a compact and fast LED moving wash light. Despite its small size, it comes with an extensive feature set which can typically only be found on bigger luminaires.
Based on a 40W Osram RGBW LED light source, the unit features an extremely high-efficient optical system capable of zooming from 4° to 56°, making it extremely versatile for any application as beam or wash light.
Astra Wash7Pix is single pixel controllable, with multiple on-board FX, and allows access to a precise and advanced white and colour control, all through DMX, W-DMX, Art-Net, sACN, Kling-Net and RDM.
Features:Compact form factor and fast movements
Zoom from 4° to 56° with high optical efficiency
Pixel control, precise white CCT and multiple FXs and colour features
LIGHT SOURCE
- Source:7x40WRGBW Osram Ostar LEDs
- Luminous flux:(4°) 2'013 lm - (56°) 3'543@Full
- Lux:(4°) 18'360 lx - (56°) 364lx@5 m full
- Source life expectancy:> 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
- Zoom range:4° - 56°motorised linear zoom
- Lens type:honeycomb gapless plano-convex optics
COLOUR SYSTEM
- Colour mixing:RGBW / FC
- CCT:CCT control, + / - green correction, tungsten emulation
- White presets:2.800 K ~ 10.000K
- Colour wheel:virtual colour wheel with macros
DYNAMIC EFFECTS
- Control Resolution:16-bit dimmer control
- Pixel patterns:pre-programmed static and dynamic pixel patterns
- FX generator:adjustable foreground/background colour, index, speed, direction
CONTROL
- Supported Protocols:DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
- DMX channels:main personality 24 / 27 / 39ch
- Pixel control:OFF, ring and pixel2pixel selectable options
- RDM:for remote addressing and parameter configuration
- Display:LCD high resolution colour display with autoflip
MOVEMENT
- Pan:540°- 16-bit resolution
- Tilt:233°- 16-bit resolution
- Position feedback:automatic repositioning after external movement
ELECTRONICS
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 30Hz, electronic
- Display battery:included, self-charging battery backup
- Selectable PWM:600 to 50000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX2 (not included)
CONNECTIONS
- Power connection:Neutrik powerCON TRUE1 IN/OUT connectors
- Signal connection:Amphenol XLR 5p IN/OUT connectors
- Wireless Connection:integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
- Data connection:Neutrik Art-NetRJ45 IN/OUT
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):225W
- Output (at 230V):12units on a single power line
- Standby power:36 W
- Power factor:> 0,93
PHYSICAL
- IP rating:IP20
- Cooling:filtered forced-air with low-noise fan
- Housing:Aluminium structure with high-resistance polycarbonate cover
- Finish:black (RAL 9004) or white (RAL 9010)
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):279x391x205mm
- Weight:8,1kg
INSTALLATION
- Suspension and fixing:any position with quick-lock omega brackets
- Hardware on-board:sockets for quick-Lock Omega bracket (clamp not included)
CERTIFICATIONS / REPORTS
- Compliance:CE, UKCA, RCM, cTUVus, FCC
No reviews yet.
7x40W RGBW moving wash light with 4°-56° zoom and pixel control
Astra Wash7Pix is a compact and fast LED moving wash light. Despite its small size, it comes with an extensive feature set which can typically only be found on bigger luminaires.
Based on a 40W Osram RGBW LED light source, the unit features an extremely high-efficient optical system capable of zooming from 4° to 59°, making it extremely versatile for any application as beam or wash light.
Astra Wash7Pix is single pixel controllable, with multiple on-board FX, and allows access to a precise and advanced white and colour control, all through DMX, W-DMX, Art-Net, sACN and RDM.
Main features:
- Compact form factor and fast movements
- Zoom from 4° to 56° with high optical efficiency
- Pixel control, precise white CTC and multiple FXs and colour features
