ASTRAWASH19PIXIP
Outdoor Moving Lights

ASTRAWASH19PIXIP

457x578x266mm Size
main personality 29 / 32 / 53ch DMX Channels
Seetronic powerCON TRUE IP65 IN/OUT Power Consumption
26,4kg Weight

Experience the
ASTRAWASH19PIXIP
Light Show

Source 19x40W RGBW Osram Ostar LEDs
Luminous flux (4°) 5'505 lm - (54°) 10'143 @Full
Lux Calibration ON: (4°) 45'146 lx - (54°) 1'174lx @5 m full
Lux Calibration OFF: (4°) 46'100 lx - (54°) 1'190lx @5 m full
Other outer RGB pixel ring with frost film
Source life expectancy > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
Zoom range 4° - 54° motorised linear zoom
Lens type honeycomb gapless plano-convex optics
Additional optics optics: diffuser on outer pixel ring
Colour mixing RGBW / FC
CCT CCT control, + / - green correction, tungsten emulation
White presets 2.800 K ~ 10.000K
Colour wheel virtual colour wheel with macros
Control Resolution 16-bit dimmer and color control
Pixel patterns pre-programmed static and dynamic pixel patterns
FX generator adjustable foreground/background colour, index, speed, direction
Special features outer RGB, pixel ring with several built in FX macros and linear crossfade channel from any white to any colour; virtual CTO on colours
Supported Protocols DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
DMX channels main personality 29 / 32 / 53ch
Pixel control OFF, ring and pixel2pixel
RDM for remote addressing and parameter configuration
Display LCD high resolution colour display with autoflip
Pan 540° - 16-bit resolution
Tilt 233° - 16-bit resolution
Position feedback automatic repositioning after external movement
Pan / tilt lock for transport and maintenance
Dimmer linear 0 - 100% electronic dimmer
Dimmer curves 4 selectable dimming modes available
Strobe / shutter 1 - 30 Hz, electronic
Display battery included, self-charging battery backup
Selectable PWM 600 to 50000 Hz (selectable steps)
Firmware upgrade via DMX with UPBOXPRO/UPBOX2 (not included)
Power connection Seetronic powerCON TRUE IP65 IN/OUT
Signal connection Seetronic XLR 5p IN/OUT connectors
Wireless Connection integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
Data connection Seetronic Art-Net RJ45 IN/OUT
Mains power supply 100-240V - 50/60Hz
Max power consumption (230V) 750W
Output (at 230V) 3 units on a single power line
Standby power 52W
Power factor > 0,95
IP rating IP65 for temporary outdoor use (*)
Cooling filtered forced-air with low-noise fan
Housing Weatherproof IP65 construction
Finish black (RAL 9004)
Operating temperature Ta -20 to +45 °C (-4 to +113 °F)
Dimensions (WxHxD) 457x578x266mm
Weight 26,4kg
Suspension and fixing any position with quick-lock omega brackets
Hardware on-board sockets for quick-Lock Omega bracket (clamp not included)
Compliance CE, RCM, cTUVus
NOTE Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.

No downloads available yet.

ASTRAWASH19PIXIP

Explore Similar
Products

Ready to Transform Your Space?

SKU: ASTRAWASH19PIXIP
CATEGORY: Outdoor Moving Lights
BRAND: Prolights
DELIVERY For orders above AED 1,000
WARRANTY 2 years
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

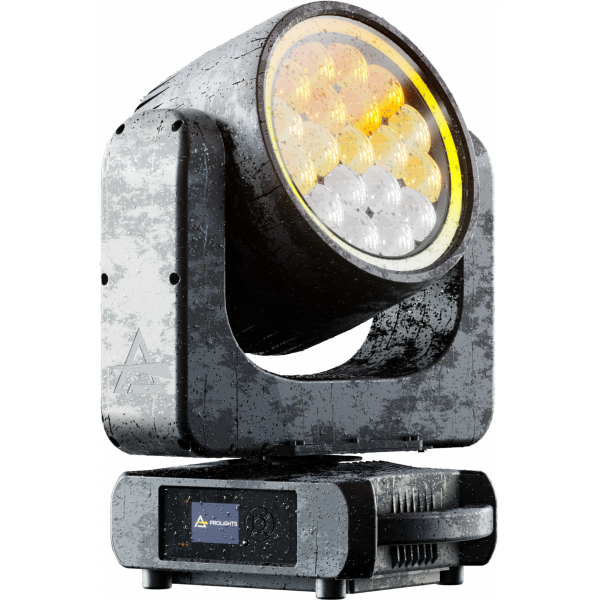

The Astra Wash19PixIP is an IP65 LED moving wash light designed to be a workhorse for any large, outdoor stage or installation, offering a robust and sealed mechanical assembly but keeping the same features and performance as its indoor version.

This moving washlight has a 19x40W Osram RGBW LED light source and an extremely-high-efficiency optical system capable of zooming from 4° to 54°, making this luminaire very versatile for any application, as aerial FX or wash light.

The Astra Wash19PixIP is single pixel controllable, with multiple on-board FX and has precise and advanced white and colour control, all through DMX/RDM, CRMX+W-DMX, Art-Net and sACN.



  • IP65 with a compact form factor and fast movements
  • Zoom from 4° to 54° with a high-optical efficiency
  • Pixel control, precise white CCT, multiple FXs and colour features

    • The Astra Wash19PixIP is an IP65 LED moving wash light designed to be a workhorse for any large, outdoor stage or installation, offering a robust and sealed mechanical assembly but keeping the same features and performance as its indoor version.

    This moving washlight has a 19x40W Osram RGBW LED light source and an extremely-high-efficiency optical system capable of zooming from 4° to 54°, making this luminaire very versatile for any application, as aerial FX or wash light.

    The Astra Wash19PixIP is single pixel controllable, with multiple on-board FX and has precise and advanced white and colour control, all through DMX/RDM, CRMX+W-DMX, Art-Net and sACN.



    Features:
    IP65 with a compact form factor and fast movements
    Zoom from 4° to 54° with a high-optical efficiency
    Pixel control, precise white CCT, multiple FXs and colour features

    LIGHT SOURCE
    • Source:
      19x40
      W
      RGBW Osram Ostar LEDs
    • Luminous flux:
      (4°) 5'505 lm - (54°) 10'143
      @Full
    • Lux:
      Calibration ON: (4°) 45'146 lx - (54°) 1'174
      lx
      @5 m full
    • Lux:
      Calibration OFF: (4°) 46'100 lx - (54°) 1'190
      lx
      @5 m full
    • Other:
      outer RGB pixel ring with frost film
    • Source life expectancy:
      > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
    OPTICS
    • Zoom range:
      4° - 54
      °
      motorised linear zoom
    • Lens type:
      honeycomb gapless plano-convex optics
    • Additional optics:
      optics: diffuser on outer pixel ring
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • CCT:
      CCT control, + / - green correction, tungsten emulation
    • White presets:
      2.800 K ~ 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    DYNAMIC EFFECTS
    • Control Resolution:
      16-bit dimmer and color control
    • Pixel patterns:
      pre-programmed static and dynamic pixel patterns
    • FX generator:
      adjustable foreground/background colour, index, speed, direction
    • Special features:
      outer RGB, pixel ring with several built in FX macros and
      linear crossfade channel from any white to any colour; virtual CTO on colours
    CONTROL
    • Supported Protocols:
      DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
    • DMX channels:
      main personality 29 / 32 / 53
      ch
    • Pixel control:
      OFF, ring and pixel2pixel
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      LCD high resolution colour display with autoflip
    MOVEMENT
    • Pan:
      540
      °
      - 16-bit resolution
    • Tilt:
      233
      °
      - 16-bit resolution
    • Position feedback:
      automatic repositioning after external movement
    • Pan / tilt lock:
      for transport and maintenance
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Display battery:
      included, self-charging battery backup
    • Selectable PWM:
      600 to 50000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX2 (not included)
    CONNECTIONS
    • Power connection:
      Seetronic powerCON TRUE IP65 IN/OUT
    • Signal connection:
      Seetronic XLR 5p IN/OUT connectors
    • Wireless Connection:
      integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
    • Data connection:
      Seetronic Art-Net
      RJ45 IN/OUT
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      750
      W
    • Output (at 230V):
      3
      units on a single power line
    • Standby power:
      52W
    • Power factor:
      > 0,95
    PHYSICAL
    • IP rating:
      IP65 for temporary outdoor use (*)
    • Cooling:
      filtered forced-air with low-noise fan
    • Housing:
      Weatherproof IP65 construction
    • Finish:
      black (RAL 9004)
    • Operating temperature:
      Ta
      -20 to +45 °C (-4 to +113 °F)
    • Dimensions (WxHxD):
      457x578x266
      mm
    • Weight:
      26,4
      kg
    INSTALLATION
    • Suspension and fixing:
      any position with quick-lock omega brackets
    • Hardware on-board:
      sockets for quick-Lock Omega bracket (clamp not included)
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, RCM, cTUVus
    (*)
    • NOTE:
      Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.

    No reviews yet.

    Browse Related Categories

    More categories under Entertainment Lighting

    Indoor-Fixtures
    Battery Operated
    Strob
    Outdoor Fixtures
    Lazer
    Effects Lighting
    Indoor Moving Lights
    Battery Operated

    IP65 moving wash light with 19x40W RGBW LED and 4°-54° zoom

    The Astra Wash19PixIP is an IP65 LED moving wash light designed to be a workhorse for any large, outdoor stage or installation, offering a robust and sealed mechanical assembly but keeping the same features and performance as its indoor version. This moving washlight has a 19x40W Osram RGBW LED light source and an extremely-high-efficiency optical system capable of zooming from 4° to 54°, making this luminaire very versatile for any application, as aerial FX or wash light. The Astra Wash19PixIP is single pixel controllable, with multiple on-board FX and has precise and advanced white and colour control, all through DMX/RDM, CRMX+W-DMX, Art-Net and sACN.

    Main features:

    • IP65 with a compact form factor and fast movements
    • Zoom from 4° to 54° with a high-optical efficiency
    • Pixel control, precise white CCT, multiple FXs and colour features
