ASTRAWASH19PIX
Indoor Moving Lights

ASTRAWASH19PIX

410x514x250mm Size
main personality 29 / 32 / 53ch DMX Channels
Neutrik powerCON TRUE1 IN/OUT connectors Power Consumption
17,4kg Weight

Experience the
ASTRAWASH19PIX
Light Show

Source 19x40W RGBW Osram Ostar LEDs
Luminous flux (4°) 5'505 lm - (54°) 10'143 @Full
Lux Calibration ON: (4°) 45'146 lx - (54°) 1'174lx @5 m full
Lux Calibration OFF: (4°) 46'100 lx - (54°) 1'190lx @5 m full
Other outer RGB pixel ring with frost film
Source life expectancy > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
Zoom range 4° - 54° motorised linear zoom
Lens type honeycomb gapless plano-convex optics
Additional optics diffuser on outer pixel ring
Colour mixing RGBW / FC
CCT CCT control, + / - green correction, tungsten emulation
White presets 2.800 K ~ 10.000K
Colour wheel virtual colour wheel with macros
Control Resolution 16-bit dimmer and color control
Pixel patterns pre-programmed static and dynamic pixel patterns
FX generator adjustable foreground/background colour, index, speed, direction
Special features outer RGB, pixel ring with several built in FX macros and linear crossfade channel from any white to any colour; virtual CTO on colours
Supported Protocols DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
DMX channels main personality 29 / 32 / 53ch
Pixel control OFF, ring and pixel2pixel
RDM for remote addressing and parameter configuration
Display LCD high resolution colour display with autoflip
Pan 540° - 16-bit resolution
Tilt 233° - 16-bit resolution
Position feedback automatic repositioning after external movement
Pan / tilt lock for transport and maintenance
Dimmer linear 0 - 100% electronic dimmer
Dimmer curves 4 selectable dimming modes available
Strobe / shutter 1 - 30 Hz, electronic
Display battery included, self-charging battery backup
Selectable PWM 600 to 50000 Hz (selectable steps)
Firmware upgrade via DMX with UPBOXPRO/UPBOX2 (not included)
Power connection Neutrik powerCON TRUE1 IN/OUT connectors
Signal connection Amphenol XLR 5p IN/OUT connectors
Wireless Connection integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
Data connection Neutrik Art-Net RJ45 IN/OUT
Mains power supply 100-240V - 50/60Hz
Max power consumption (230V) 620W
Output (at 230V) 3 units on a single power line
Standby power 46.8W
Power factor > 0,95
IP rating IP20
Cooling filtered forced-air with low-noise fan
Housing Aluminium structure with high-resistance polycarbonate cover
Finish black (RAL 9004) or white (RAL 9010)
Operating temperature Ta -10 to +45 °C (+14 to +113 °F)
Dimensions (WxHxD) 410x514x250mm
Weight 17,4kg
Suspension and fixing any position with quick-lock omega brackets
Hardware on-board sockets for quick-Lock Omega bracket (clamp not included)
Compliance CE, UKCA, RCM, cTUVus, FCC

No downloads available yet.

ASTRAWASH19PIX

Explore Similar
Products

VPL-2RN
Order Code VPL-2RN View Details
Xwash1200
Order Code Xwash1200 View Details
VPL-Extreme
Order Code VPL-Extreme View Details

Ready to Transform Your Space?

SKU: ASTRAWASH19PIX
CATEGORY: Indoor Moving Lights
BRAND: Prolights
DELIVERY For orders above AED 1,000
WARRANTY 2 years
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

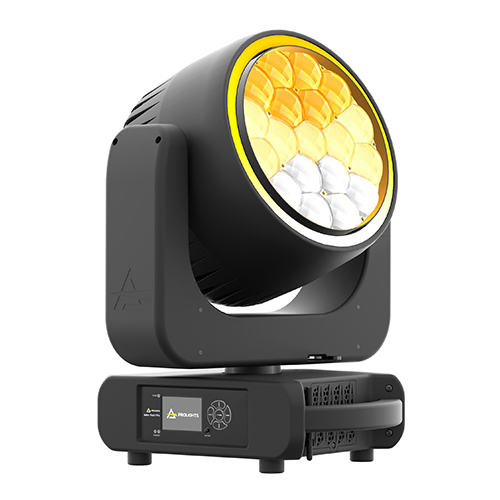

Astra Wash19Pix is an LED moving wash light, designed to be a workhorse for any touring, corporate and event applications, offering a superior level of brightness and advanced creative effect possibilities.

Based on a 40W Osram RGBW LED light source, plus the exterior pixel ring, this unit features an extremely high-efficiency optical system capable of zooming from 4° to 54°, making this luminaire extremely versatile for any application.

Astra Wash19Pix is single pixel controllable, with multiple on-board FX, and allows access to a precise and advanced white and colour control, all through DMX, W-DMX, Art-Net, sACN, Kling-Net and RDM.

  • Silent operation, smooth and fast movements
  • Zoom from 4° to 54° with high optical efficiency
  • Pixel and ring control, precise white CCT, multiple FX and colour features

    • Astra Wash19Pix is an LED moving wash light, designed to be a workhorse for any touring, corporate and event applications, offering a superior level of brightness and advanced creative effect possibilities.

    Based on a 40W Osram RGBW LED light source, plus the exterior pixel ring, this unit features an extremely high-efficiency optical system capable of zooming from 4° to 54°, making this luminaire extremely versatile for any application.

    Astra Wash19Pix is single pixel controllable, with multiple on-board FX, and allows access to a precise and advanced white and colour control, all through DMX, W-DMX, Art-Net, sACN, Kling-Net and RDM.

    Features:
    Silent operation, smooth and fast movements
    Zoom from 4° to 54° with high optical efficiency
    Pixel and ring control, precise white CCT, multiple FX and colour features

    LIGHT SOURCE
    • Source:
      19x40
      W
      RGBW Osram Ostar LEDs
    • Luminous flux:
      (4°) 5'505 lm - (54°) 10'143
      @Full
    • Lux:
      Calibration ON: (4°) 45'146 lx - (54°) 1'174
      lx
      @5 m full
    • Lux:
      Calibration OFF: (4°) 46'100 lx - (54°) 1'190
      lx
      @5 m full
    • Other:
      outer RGB pixel ring with frost film
    • Source life expectancy:
      > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
    OPTICS
    • Zoom range:
      4° - 54
      °
      motorised linear zoom
    • Lens type:
      honeycomb gapless plano-convex optics
    • Additional optics:
      diffuser on outer pixel ring
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • CCT:
      CCT control, + / - green correction, tungsten emulation
    • White presets:
      2.800 K ~ 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    DYNAMIC EFFECTS
    • Control Resolution:
      16-bit dimmer and color control
    • Pixel patterns:
      pre-programmed static and dynamic pixel patterns
    • FX generator:
      adjustable foreground/background colour, index, speed, direction
    • Special features:
      outer RGB, pixel ring with several built in FX macros and
      linear crossfade channel from any white to any colour; virtual CTO on colours
    CONTROL
    • Supported Protocols:
      DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
    • DMX channels:
      main personality 29 / 32 / 53
      ch
    • Pixel control:
      OFF, ring and pixel2pixel
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      LCD high resolution colour display with autoflip
    MOVEMENT
    • Pan:
      540
      °
      - 16-bit resolution
    • Tilt:
      233
      °
      - 16-bit resolution
    • Position feedback:
      automatic repositioning after external movement
    • Pan / tilt lock:
      for transport and maintenance
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Display battery:
      included, self-charging battery backup
    • Selectable PWM:
      600 to 50000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX2 (not included)
    CONNECTIONS
    • Power connection:
      Neutrik powerCON TRUE1 IN/OUT connectors
    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    • Wireless Connection:
      integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
    • Data connection:
      Neutrik Art-Net
      RJ45 IN/OUT
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      620
      W
    • Output (at 230V):
      3
      units on a single power line
    • Standby power:
      46.8W
    • Power factor:
      > 0,95
    PHYSICAL
    • IP rating:
      IP20
    • Cooling:
      filtered forced-air with low-noise fan
    • Housing:
      Aluminium structure with high-resistance polycarbonate cover
    • Finish:
      black (RAL 9004) or white (RAL 9010)
    • Operating temperature:
      Ta
      -10 to +45 °C (+14 to +113 °F)
    • Dimensions (WxHxD):
      410x514x250
      mm
    • Weight:
      17,4
      kg
    INSTALLATION
    • Suspension and fixing:
      any position with quick-lock omega brackets
    • Hardware on-board:
      sockets for quick-Lock Omega bracket (clamp not included)
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA, RCM, cTUVus, FCC

    No reviews yet.

    Browse Related Categories

    More categories under Entertainment Lighting

    Outdoor Moving Lights
    Indoor-Fixtures
    Battery Operated
    Strob
    Outdoor Fixtures
    Lazer
    Effects Lighting
    Battery Operated

    19x40W RGBW moving wash light with 4°-54° zoom, pixel control and pixel ring

    Astra Wash19Pix is an LED moving wash light, designed to be a workhorse for any touring, corporate and event applications, offering a superior level of brightness and advanced creative effect possibilities. Based on a 40W Osram RGBW LED light source, plus the exterior pixel ring, this unit features an extremely high-efficiency optical system capable of zooming from 4° to 54°, making this luminaire extremely versatile for any application. Astra Wash19Pix is single pixel controllable, with multiple on-board FX, and allows access to a precise and advanced white and colour control, all through DMX, W-DMX, Art-Net, sACN and RDM.

    Main features:

    • Silent operation, smooth and fast movements
    • Zoom from 4° to 54° with high optical efficiency
    • Pixel and ring control, precise white CTC, multiple FX and color features
