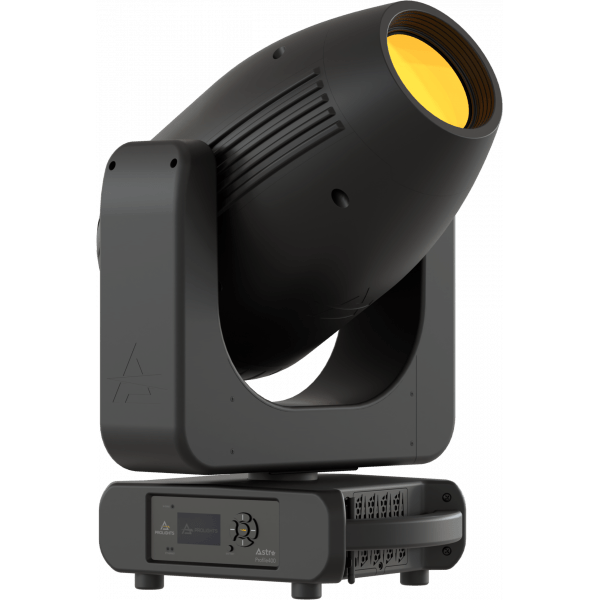

ASTRAPROFILE400
Indoor-Moving-Lights

ASTRAPROFILE400

outer: 25,7 mm - image: 20 mm - thickness: 1,1 mm Size
29 / 39 / 54ch DMX Channels
Neutrik powerCON TRUE1 IN/OUT connectors Power Consumption
27,6kg Weight

Experience the
ASTRAPROFILE400
Light Show

Source 400W White LED
Source CCT 7.000K
Luminous flux (6,5°) 9'143 - (50°) 17'598
Lux (6,5°) 37'468 lx (50°) 1'690lx @5 m
CRI > 70 (CCT 5.600K and CRI > 90 with filter on color wheel)
Source life expectancy > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
Zoom range 6,5° - 50° motorised linear zoom
Lens diameter 120mm
Lens type HD anti-reflection lenses with achromatic coating
Focus motorised 16-bit
Colour mixing linear CMY
CCT linear CTO correction 2.700 K ~ 7.000 K
Colour wheel open + 5,600K high CRI filter + 7 colour filters
Shutter system 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
Animation wheel animation wheel with CW and CCW rotation
Circular prism 4-f with bi-directional rotation, indexing
Frost linear 0-100%
Iris 5 - 100% motorised iris
Rotating gobos 7 rotating gobos + open, interchangeable, indexing
Gobo size outer: 25,7 mm - image: 20 mm - thickness: 1,1 mm
Supported Protocols DMX512, RDM, ArtNet, sACN, CRMX
DMX channels 29 / 39 / 54ch
RDM for remote addressing and parameter configuration
Display Graphic User Interface
Other 16bit control of dimmer and colour
Pan 540° - 16-bit resolution
Tilt 270° - 16-bit resolution
Position feedback automatic repositioning after external movement
Pan / tilt lock for transport and maintenance
Dimmer linear 0 - 100% electronic dimmer
Dimmer curves selectable dimming modes available
Strobe / shutter 1 - 30 Hz, electronic
Display battery included, self-charging battery backup
Selectable PWM 600 to 50000 Hz (selectable steps)
Firmware upgrade via DMX with UPBOXPRO/UPBOX2 (not included)
Power connection Neutrik powerCON TRUE1 IN/OUT connectors
Signal connection Amphenol XLR 5p IN/OUT connectors
Wireless Connection integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
Data connection Art-Net RJ45 IN/OUT
Mains power supply 100-240V - 50/60Hz
Max power consumption (230V) 620W
Output (at 230V) 3 units on a single power line
Standby power 113 W
Power factor > 0,96
IP rating IP20
Cooling heat pipe with low-noise fan
Housing Aluminium structure with high-resistance polycarbonate cover
Finish black
Operating temperature Ta -10 to +45 °C (+14 to +113 °F)
Dimensions (WxHxD) 410x639x278mm
Weight 27,6kg
Suspension and fixing any position with quick-lock omega brackets
Hardware on-board sockets for quick-Lock Omega bracket (clamp not included)
Compliance CE, RCM, FCC, cTUVus

No downloads available yet.

ASTRAPROFILE400

Explore Similar
Products

Ready to Transform Your Space?

SKU: ASTRAPROFILE400
CATEGORY: Indoor-Moving-Lights
BRAND: Prolights
DELIVERY For orders above AED 1,000
WARRANTY 2 years
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

The Astra Profile400 is a multi-purpose indoor LED profile moving light, with an ultra-high lumen efficiency, a punchy output, and stunning effects.

Its feature set includes framing shutters and an animation wheel, but it still has a small form factor and light weight, making the Astra Profile400 the perfect replacement for fixtures with a higher power consumption. Its light source delivers a pure white light emission at 7,000K, reaching 17.500 lumens whilst achieving a flat field beam projection.

The Astra Profile400's optical system moves linearly from 6,5° to 50°, and it's equipped with a brand-new 400W LED source. The extensive feature set of the Astra Profile400 includes a 4-layer motorized framing system, linear CMY and CTO, 5,600K high CRI filter, colour and gobo wheels, frost filters, prism and iris.

  • Indoor LED Moving Profile equipped with a 400W LED source (7,000K)
  • 6,5° to 50° linear zoom
  • 4-layer motorized framing shutters, Linear CMY+CTO, 5,600K high CRI filter, animation wheel, gobo and colour wheels, frost filter, prism and iris

    • The Astra Profile400 is a multi-purpose indoor LED profile moving light, with an ultra-high lumen efficiency, a punchy output, and stunning effects.

    Its feature set includes framing shutters and an animation wheel, but it still has a small form factor and light weight, making the Astra Profile400 the perfect replacement for fixtures with a higher power consumption. Its light source delivers a pure white light emission at 7,000K, reaching 17.500 lumens whilst achieving a flat field beam projection.

    The Astra Profile400's optical system moves linearly from 6,5° to 50°, and it's equipped with a brand-new 400W LED source. The extensive feature set of the Astra Profile400 includes a 4-layer motorized framing system, linear CMY and CTO, 5,600K high CRI filter, colour and gobo wheels, frost filters, prism and iris.

    Features:
    Indoor LED Moving Profile equipped with a 400W LED source (7,000K)
    6,5° to 50° linear zoom
    4-layer motorized framing shutters, Linear CMY+CTO, 5,600K high CRI filter, animation wheel, gobo and colour wheels, frost filter, prism and iris

    LIGHT SOURCE
    • Source:
      400
      W
      White LED
    • Source CCT:
      7.000
      K
    • Luminous flux:
      (6,5°) 9'143 - (50°) 17'598
    • Lux:
      (6,5°) 37'468 lx (50°) 1'690
      lx
      @5 m
    • CRI:
      > 70 (CCT 5.600K and CRI > 90 with filter on color wheel)
    • Source life expectancy:
      > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
    OPTICS
    • Zoom range:
      6,5° - 50
      °
      motorised linear zoom
    • Lens diameter:
      120
      mm
    • Lens type:
      HD anti-reflection lenses with achromatic coating
    • Focus:
      motorised 16-bit
    COLOUR SYSTEM
    • Colour mixing:
      linear CMY
    • CCT:
      linear CTO correction 2.700 K ~ 7.000 K
    • Colour wheel:
      open + 5,600K high CRI filter + 7
      colour filters
    DYNAMIC EFFECTS
    • Shutter system:
      4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
    • Animation wheel:
      animation wheel with CW and CCW rotation
    • Circular prism:
      4
      -f
      with bi-directional rotation, indexing
    • Frost:
      linear 0-100%
    • Iris:
      5 - 100
      %
      motorised iris
    GOBOS
    • Rotating gobos:
      7
      rotating gobos + open, interchangeable, indexing
    • Gobo size:
      outer: 25,7 mm - image: 20 mm - thickness: 1,1 mm
    CONTROL
    • Supported Protocols:
      DMX512, RDM, ArtNet, sACN, CRMX
    • DMX channels:
      29 / 39 / 54
      ch
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      Graphic User Interface
    • Other:
      16bit control of dimmer and colour
    MOVEMENT
    • Pan:
      540
      °
      - 16-bit resolution
    • Tilt:
      270
      °
      - 16-bit resolution
    • Position feedback:
      automatic repositioning after external movement
    • Pan / tilt lock:
      for transport and maintenance
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Dimmer curves:
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Display battery:
      included, self-charging battery backup
    • Selectable PWM:
      600 to 50000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX2 (not included)
    CONNECTIONS
    • Power connection:
      Neutrik powerCON TRUE1 IN/OUT connectors
    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    • Wireless Connection:
      integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
    • Data connection:
      Art-Net
      RJ45 IN/OUT
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      620
      W
    • Output (at 230V):
      3
      units on a single power line
    • Standby power:
      113 W
    • Power factor:
      > 0,96
    PHYSICAL
    • IP rating:
      IP20
    • Cooling:
      heat pipe with low-noise fan
    • Housing:
      Aluminium structure with high-resistance polycarbonate cover
    • Finish:
      black
    • Operating temperature:
      Ta
      -10 to +45 °C (+14 to +113 °F)
    • Dimensions (WxHxD):
      410x639x278
      mm
    • Weight:
      27,6
      kg
    INSTALLATION
    • Suspension and fixing:
      any position with quick-lock omega brackets
    • Hardware on-board:
      sockets for quick-Lock Omega bracket (clamp not included)
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, RCM, FCC, cTUVus

    No reviews yet.

    Browse Related Categories

    More categories under Stage-Lighting

    Outdoor Fixtures
    Indoor-Fixtures
    Battery-Operated
    Strobes, Pixels and Blinders

    Indoor LED Moving Profile, with a 400W White source

    The Astra Profile400 is a multi-purpose indoor LED profile moving light, with an ultra-high lumen efficiency, a punchy output, and stunning effects. Its feature set includes framing shutters and an animation wheel, but it still has a small form factor and light weight, making the Astra Profile400 the perfect replacement for fixtures with a higher power consumption. Its light source delivers a pure white light emission at 7,000K, reaching 17.500 lumens whilst achieving a flat field beam projection. The Astra Profile400's optical system moves linearly from 6,5° to 50°, and it's equipped with a brand-new 400W LED source. The extensive feature set of the Astra Profile400 includes a 4-layer motorized framing system, linear CMY and CTO, 5,600K high CRI filter, colour and gobo wheels, frost filters, prism and iris.

    Main features:

    • Indoor LED Moving Profile equipped with a 400W LED source (7,000K)
    • 6,5° to 50° linear zoom
    • 4-layer motorized framing shutters, Linear CMY+CTO, 5,600K high CRI filter, animation wheel, gobo and colour wheels, frost filter, prism and iris
