Indoor-Moving-Lights
ASTRAHYB420
outer: 15,9 mm - image: 12 mm - thickness: 1,1 mm
Size
30ch
DMX Channels
Neutrik powerCON TRUE1 IN connector
Power Consumption
26,2kg
Weight
Experience the
ASTRAHYB420
Light Show
| Source | 420W USHIO NSL421 |
|---|---|
| Source CCT | 7.000K |
| Luminous flux | 35.815 |
| Lux | (2.7°) 127.339 lx - (40°) 862lx @15 m |
| Source life expectancy | 6.000 h |
| Zoom range | 2.7° - 40° motorised linear zoom |
| Lens diameter | 153mm |
| Lens type | HD anti-reflection lenses with achromatic coating |
| Focus | motorised 16-bit |
| Colour mixing | CMY colour system on 3 gradually fading colour wheels |
| CCT | on wheel 2.500 K and 3.200 K + CTB |
| Colour wheel | 15 dichroic filters on 3 independent colour wheels |
| Animation wheel | animation wheel with CW and CCW rotation |
| FX generator | 2 prisms overlap for spectacular aerial effects |
| Circular prism | 8 f and 4-f with bi-directional rotation, indexing |
| Frost | linear 0-100% |
| Rotating gobos | 9 rotating gobos + open, interchangeable, indexing |
| Gobo size | outer: 15,9 mm - image: 12 mm - thickness: 1,1 mm |
| Fixed gobos | 18 fixed gobos + open |
| Supported Protocols | DMX512, RDM, Art-Net, sACN, W-DMX |
| DMX channels | 30ch |
| RDM | for remote addressing and parameter configuration |
| Display | LCD high resolution colour display with autoflip |
| Other | 16bit control of dimmer |
| Pan | 540° - 16-bit resolution |
| Tilt | 270° - 16-bit resolution |
| Position feedback | automatic repositioning after external movement |
| Pan / tilt lock | for transport and maintenance |
| Dimmer | linear 0 - 100% mechanical dimmer |
| Strobe / shutter | 1 - 28 flash(s), mechanical |
| Display battery | included, self-charging battery backup |
| Firmware upgrade | via menu with internal memory or via USB - DMX interface (UPBOXPRO/UPBOX2) not included |
| Power connection | Neutrik powerCON TRUE1 IN connector |
| Signal connection | Amphenol XLR 5p IN/OUT connectors |
| Wireless Connection | integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible |
| Data connection | Neutrik Art-Net RJ45 IN/OUT |
| Mains power supply | 100-240V - 50/60Hz |
| Max power consumption (230V) | 590W |
| Standby power | 96W |
| Power factor | > 0,96 |
| IP rating | IP20 |
| Cooling | filtered forced-air with low-noise fan |
| Housing | Aluminium structure with high-resistance polycarbonate cover |
| Finish | black (RAL 9004) |
| Operating temperature | Ta -10 to +45 °C (+14 to +113 °F) |
| Dimensions (WxHxD) | 445x668x310mm |
| Weight | 26,2kg |
| Suspension and fixing | any position with quick-lock omega brackets |
| Hardware on-board | sockets for quick-Lock Omega bracket (clamp not included) |
| Compliance | CE, UKCA, RCM, cTUVus, FCC |
No downloads available yet.
Explore Similar
Products
Ready to Transform Your Space?
DELIVERY
For orders above AED 1,000
WARRANTY
2 years
SECURE PAYMENT
Safe encrypted checkup
EXPERT SUPPORT
Pre and post sale support

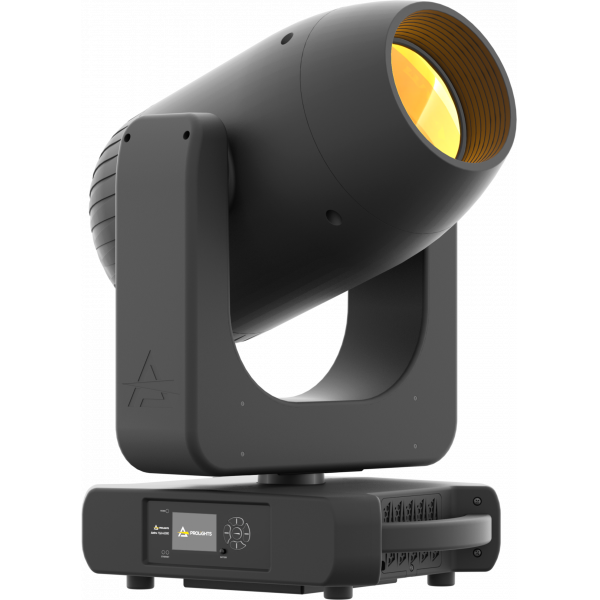

The Astra Hybrid420 is a hybrid moving head that excels as a bright beam fixture and perfect spotlight, offering a tremendous lumen output and superior evenness compared with other lights in the same category.
The Astra Hybrid420 optical system moves linearly from 2.7° to 40°, and it's equipped with a brand new 420W USHIO NSL421 lamp, featuring an equivalent output of higher power consumption units, but in a smaller, lighter, and faster body.
The extensive feature set of the Astra Hybrid420 includes functions like aerial effects with a fat and parallel beam and crisp projection textures and pattern effects, with linear CMY, three colour-wheels, an animation wheel, two overlapping prisms, frost and two gobo wheels.
The Astra Hybrid420 is a hybrid moving head that excels as a bright beam fixture and perfect spotlight, offering a tremendous lumen output and superior evenness compared with other lights in the same category.
The Astra Hybrid420 optical system moves linearly from 2.7° to 40°, and it's equipped with a brand new 420W USHIO NSL421 lamp, featuring an equivalent output of higher power consumption units, but in a smaller, lighter, and faster body.
The extensive feature set of the Astra Hybrid420 includes functions like aerial effects with a fat and parallel beam and crisp projection textures and pattern effects, with linear CMY, three colour-wheels, an animation wheel, two overlapping prisms, frost and two gobo wheels.
Features:Hybrid moving light equipped with a 420W USHIO NSL421 lamp
Linear zoom ranging from 2.7° to 40°
Linear CMY, animation wheel, 2 gobo wheels, 3 colour wheels, 2 overlapping prisms
LIGHT SOURCE
- Source:420WUSHIO NSL421
- Source CCT:7.000K
- Luminous flux:35.815
- Lux:(2.7°) 127.339 lx - (40°) 862lx@15 m
- Source life expectancy:6.000 h
OPTICS
- Zoom range:2.7° - 40°motorised linear zoom
- Lens diameter:153mm
- Lens type:HD anti-reflection lenses with achromatic coating
- Focus:motorised 16-bit
COLOUR SYSTEM
- Colour mixing:CMY colour system on 3 gradually fading colour wheels
- CCT:on wheel 2.500 K and 3.200 K + CTB
- Colour wheel:15dichroic filters on 3 independent colour wheels
DYNAMIC EFFECTS
- Animation wheel:animation wheel with CW and CCW rotation
- FX generator:2prisms overlap for spectacular aerial effects
- Circular prism:8 f and 4-fwith bi-directional rotation, indexing
- Frost:linear 0-100%
GOBOS
- Rotating gobos:9rotating gobos + open, interchangeable, indexing
- Gobo size:outer: 15,9 mm - image: 12 mm - thickness: 1,1 mm
- Fixed gobos:18fixed gobos + open
CONTROL
- Supported Protocols:DMX512, RDM, Art-Net, sACN, W-DMX
- DMX channels:30ch
- RDM:for remote addressing and parameter configuration
- Display:LCD high resolution colour display with autoflip
- Other:16bit control of dimmer
MOVEMENT
- Pan:540°- 16-bit resolution
- Tilt:270°- 16-bit resolution
- Position feedback:automatic repositioning after external movement
- Pan / tilt lock:for transport and maintenance
ELECTRONICS
- Dimmer:linear 0 - 100% mechanical dimmer
- Strobe / shutter:1 - 28flash(s), mechanical
- Display battery:included, self-charging battery backup
- Firmware upgrade:via menu with internal memory or via USB - DMX interface (UPBOXPRO/UPBOX2) not included
CONNECTIONS
- Power connection:Neutrik powerCON TRUE1 IN connector
- Signal connection:Amphenol XLR 5p IN/OUT connectors
- Wireless Connection:integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
- Data connection:Neutrik Art-NetRJ45 IN/OUT
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):590W
- Standby power:96W
- Power factor:> 0,96
PHYSICAL
- IP rating:IP20
- Cooling:filtered forced-air with low-noise fan
- Housing:Aluminium structure with high-resistance polycarbonate cover
- Finish:black (RAL 9004)
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):445x668x310mm
- Weight:26,2kg
INSTALLATION
- Suspension and fixing:any position with quick-lock omega brackets
- Hardware on-board:sockets for quick-Lock Omega bracket (clamp not included)
CERTIFICATIONS / REPORTS
- Compliance:CE, UKCA, RCM, cTUVus, FCC
No reviews yet.
Hybrid moving beam-spot, with a 420W USHIO NSL421 lamp
The Astra Hybrid420 is a hybrid moving head that excels as a bright beam fixture and perfect spotlight, offering a tremendous lumen output and superior evenness compared with other lights in the same category.
The Astra Hybrid420 optical system moves linearly from 2.7° to 40°, and it's equipped with a brand new 420W USHIO NSL421 lamp, featuring an equivalent output of higher power consumption units, but in a smaller, lighter, and faster body.
The extensive feature set of the Astra Hybrid420 includes functions like aerial effects with a fat and parallel beam and crisp projection textures and pattern effects, with linear CMY, three colour-wheels, an animation wheel, two overlapping prisms, frost and two gobo wheels.
Main features:
- Hybrid moving light equipped with a 420W USHIO NSL421 lamp
- Linear zoom ranging from 2.7° to 40°
- Linear CMY, animation wheel, 2 gobo wheels, 3 colour wheels, 2 overlapping prisms
