ASTRAHYB330IP
Outdoor Moving Lights

ASTRAHYB330IP

20 mm outer / 16 mm image / up to 3 mm thickness Size
29ch DMX Channels
Seetronic powerCON TRUE IP65 IN/OUT Power Consumption
25kg Weight

Experience the
ASTRAHYB330IP
Light Show

Source 330W high-power white LED
Source CCT 7.000K
Luminous flux (3°) 8'493 lm - (50°) 15'272
Lux (3°) 114'701 lx - (50°) 1'882lx @5 m full
Source life expectancy > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
Zoom range 3° - 50° motorised linear zoom
Lens diameter 140mm
Lens type HD anti-reflection lenses with achromatic coating
Focus motorised 16-bit
Colour mixing CMY colour system on 3 gradually fading colour wheels
CCT on wheel 2.400 K and 3.200 K
Colour wheel HighCRI+8 dichroic filters on 3 independent colour wheels
Control Resolution 16-bit dimmer control
Animation wheel animation wheel with CW and CCW rotation
FX generator 2 prisms overlap for spectacular aerial effects
Circular prism 8-f with bi-directional rotation, indexing
Linear prism 6-f with bi-directional rotation, indexing
Frost linear 0-100%
Rotating gobos 8 rotating gobos + open, interchangeable, indexing
Gobo size 20 mm outer / 16 mm image / up to 3 mm thickness
Fixed gobos 11 fixed gobos + open
Supported Protocols DMX512, RDM, ArtNet, sACN (IGMP v2), CRMX
DMX channels 29ch
RDM for remote addressing and parameter configuration
Display LCD high resolution colour display with autoflip
Pan 540° - 16-bit resolution
Tilt 270° - 16-bit resolution
Position feedback automatic repositioning after external movement
Pan / tilt lock for transport and maintenance
Dimmer linear 0 - 100% mechanical dimmer
Dimmer curves 4 selectable dimming modes available
Strobe / shutter 1 - 30 Hz, electronic
Display battery included, self-charging battery backup
Selectable PWM 600 to 50000 Hz (selectable steps)
Firmware upgrade via DMX with UPBOXPRO/UPBOX2 (not included) or via USB pen drive
Power connection Seetronic powerCON TRUE IP65 IN/OUT
Signal connection IP65 Seetronic XLR 5p IN/OUT connectors
Wireless Connection integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
Data connection IP65 Art-Net RJ45 IN/OUT
EtherFlow Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered
Mains power supply 100-240V - 50/60Hz (max absolutes range: 90-264V - 50/60Hz)
Max power consumption (230V) 517W
Output (at 230V) 4 units on a single power line
Standby power 85W
Power factor > 0,98
IP rating IP65 for temporary outdoor use (*)
Cooling heat pipe with low-noise fan
Housing Weatherproof IP65 construction with die-cast magnesium alloy
Finish black (RAL 9004)
Operating temperature Ta -20 to +45 °C (-4 to +113 °F)
Dimensions (WxHxD) 393x684x266mm
Weight 25kg
Suspension and fixing any position with quick-lock omega brackets
Hardware on-board sockets for quick-Lock Omega bracket (clamp not included)
Compliance CE, RCM, FCC, cTUVus
NOTE Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.

No downloads available yet.

ASTRAHYB330IP

Explore Similar
Products

Ready to Transform Your Space?

SKU: ASTRAHYB330IP
CATEGORY: Outdoor Moving Lights
BRAND: Prolights
DELIVERY For orders above AED 1,000
WARRANTY 2 years
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

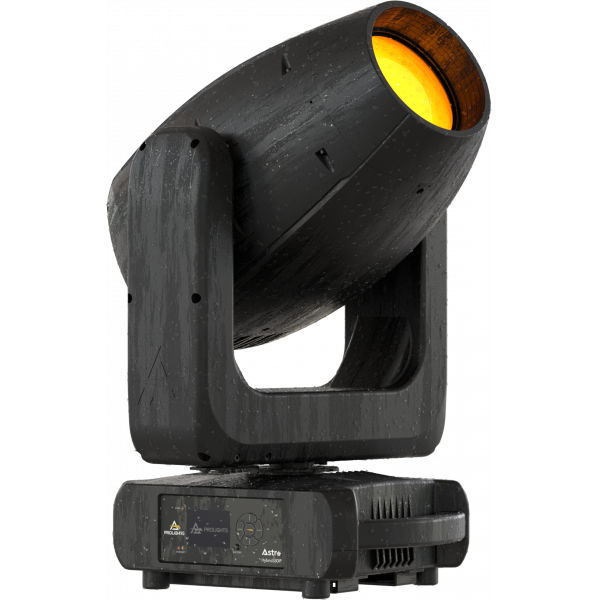

The Astra Hybrid330IP is a versatile, compact moving light, suitable for both indoor and outdoor settings, thanks to its IP65 rating.

Equipped with a 330W LED, this lightweight unit weighs only 25 kg. It offers a comprehensive range of features and visual effects, making it ideal for stages of various sizes. Its advanced optical system, featuring a 140 mm front lens, provides a zoom range from 3° to 50°, enabling both intense beam and spotlight functionalities.

Key features of the Astra Hybrid330IP include linear CMY color mixing, three color wheels, an animation wheel, dual overlapping prisms, a frost effect, and two gobo wheels.

  • IP65 hybrid moving light with 330W LED source
  • Linear zoom ranging from 3° to 50°
  • 25 kg

    • The Astra Hybrid330IP is a versatile, compact moving light, suitable for both indoor and outdoor settings, thanks to its IP65 rating.

    Equipped with a 330W LED, this lightweight unit weighs only 25 kg. It offers a comprehensive range of features and visual effects, making it ideal for stages of various sizes. Its advanced optical system, featuring a 140 mm front lens, provides a zoom range from 3° to 50°, enabling both intense beam and spotlight functionalities.

    Key features of the Astra Hybrid330IP include linear CMY color mixing, three color wheels, an animation wheel, dual overlapping prisms, a frost effect, and two gobo wheels.

    Features:
    IP65 hybrid moving light with 330W LED source
    Linear zoom ranging from 3° to 50°
    25 kg

    LIGHT SOURCE
    • Source:
      330
      W
      high-power white LED
    • Source CCT:
      7.000
      K
    • Luminous flux:
      (3°) 8'493 lm - (50°) 15'272
    • Lux:
      (3°) 114'701 lx - (50°) 1'882
      lx
      @5 m full
    • Source life expectancy:
      > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
    OPTICS
    • Zoom range:
      3° - 50
      °
      motorised linear zoom
    • Lens diameter:
      140
      mm
    • Lens type:
      HD anti-reflection lenses with achromatic coating
    • Focus:
      motorised 16-bit
    COLOUR SYSTEM
    • Colour mixing:
      CMY colour system on 3 gradually fading colour wheels
    • CCT:
      on wheel 2.400 K and 3.200 K
    • Colour wheel:
      HighCRI+8
      dichroic filters on 3 independent colour wheels
    DYNAMIC EFFECTS
    • Control Resolution:
      16-bit dimmer control
    • Animation wheel:
      animation wheel with CW and CCW rotation
    • FX generator:
      2
      prisms overlap for spectacular aerial effects
    • Circular prism:
      8
      -f
      with bi-directional rotation, indexing
    • Linear prism:
      6
      -f
      with bi-directional rotation, indexing
    • Frost:
      linear 0-100%
    GOBOS
    • Rotating gobos:
      8
      rotating gobos + open, interchangeable, indexing
    • Gobo size:
      20 mm outer / 16 mm image / up to 3 mm thickness
    • Fixed gobos:
      11
      fixed gobos + open
    CONTROL
    • Supported Protocols:
      DMX512, RDM, ArtNet, sACN (IGMP v2), CRMX
    • DMX channels:
      29
      ch
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      LCD high resolution colour display with autoflip
    MOVEMENT
    • Pan:
      540
      °
      - 16-bit resolution
    • Tilt:
      270
      °
      - 16-bit resolution
    • Position feedback:
      automatic repositioning after external movement
    • Pan / tilt lock:
      for transport and maintenance
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% mechanical dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Display battery:
      included, self-charging battery backup
    • Selectable PWM:
      600 to 50000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX2 (not included) or via USB pen drive
    CONNECTIONS
    • Power connection:
      Seetronic powerCON TRUE IP65 IN/OUT
    • Signal connection:
      IP65
      Seetronic XLR 5p IN/OUT connectors
    • Wireless Connection:
      integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
    • Data connection:
      IP65 Art-Net
      RJ45 IN/OUT
    • EtherFlow:
      Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz (max absolutes range: 90-264V - 50/60Hz)
    • Max power consumption (230V):
      517
      W
    • Output (at 230V):
      4
      units on a single power line
    • Standby power:
      85W
    • Power factor:
      > 0,98
    PHYSICAL
    • IP rating:
      IP65 for temporary outdoor use (*)
    • Cooling:
      heat pipe with low-noise fan
    • Housing:
      Weatherproof IP65 construction with die-cast magnesium alloy
    • Finish:
      black (RAL 9004)
    • Operating temperature:
      Ta
      -20 to +45 °C (-4 to +113 °F)
    • Dimensions (WxHxD):
      393x684x266
      mm
    • Weight:
      25
      kg
    INSTALLATION
    • Suspension and fixing:
      any position with quick-lock omega brackets
    • Hardware on-board:
      sockets for quick-Lock Omega bracket (clamp not included)
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, RCM, FCC, cTUVus
    (*)
    • NOTE:
      Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
